Cessna 150K - Corrugated Skin Repair

To Next Page

To Previous Page

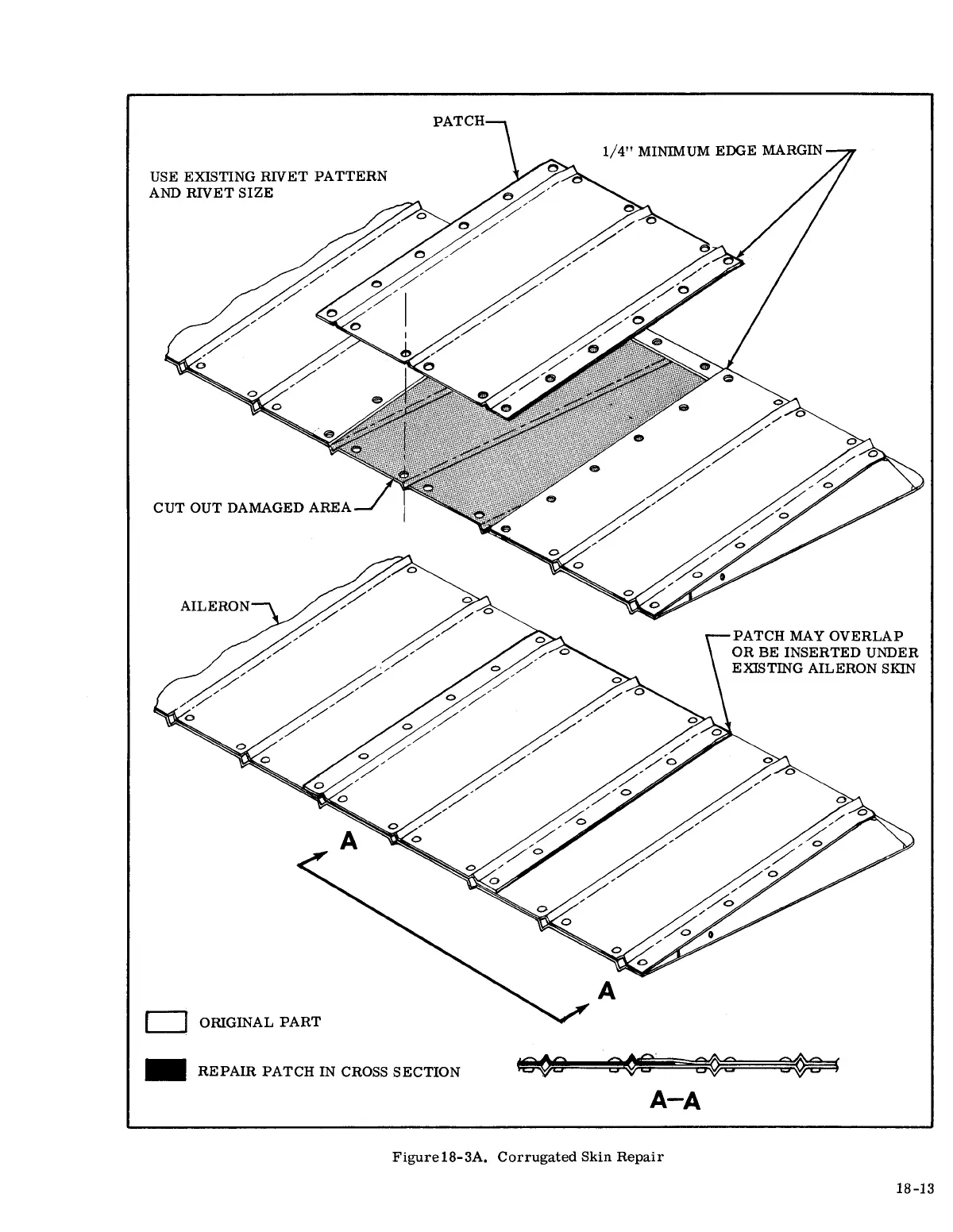

USE EXISTING

RIVET

PATTERN

AND

RIVET

SIZE

CUT

OUT

DAMAGED

AREA

o ORIGINAL

PART

REPAIR

PATCH

IN CROSS

SECTION

1/4"

MINIMUM EDGE MARGIN

PATCH

MAY

OVERLAP

INSERTED

UNDER

EXISTING

AILERON

SKIN

9~G

~~3=====:@G~

A-A

Figure18-3A.

Corrugated

Skin

Repair

18-13
