3
7-+---""'"
Detail
B
NOTE
Bug
screen
(7)
should
be
inspected
and
cleaned
periodically.
1.
Doorpost
Cover
2.
Horn
Assembly
3.
Scoop
4.
Adapter
5.
Felt
Seal
6.
Adjustable
Plate
7.
Screen

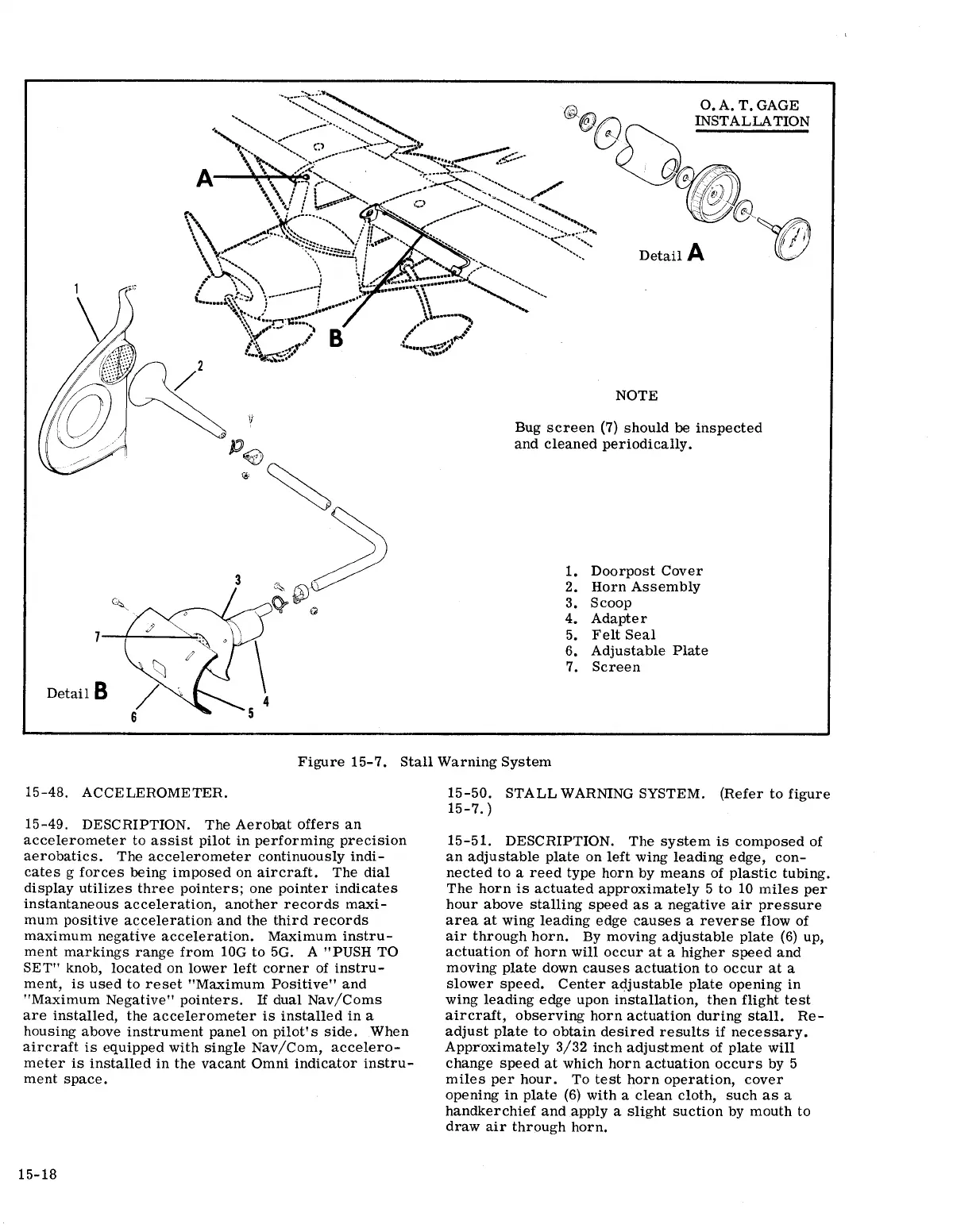

Figure
15-7.
Stall
Warning
System
15-48.
ACCELEROMETER.
15-49.
DESCRIPTION.
The
Aerobat
offers
an
accelerometer
to
assist
pilot
in
performing
precision
aerobatics.
The
accelerometer
continuously
indi-
cates
g
forces
being
imposed
on
aircraft.
The
dial
display
utilizes
three
pointers;
one
pointer
indicates
instantaneous
acceleration,
another
records
maxi-
mum
positive
acceleration
and
the
third
records
maximum
negative
acceleration.
Maximum
instru-
ment
markings
range
from
lOG
to
5G. A
"PUSH
TO
SET"
knob,
located
on
lower
left
corner
of
instru-
ment,
is
used
to
reset
"Maximum
Positive"
and
"Maximum
Negative"
pOinters.
If
dual
Nav/Coms
are
installed,
the
accelerometer
is
installed
in
a
housing
above
instrument
panel
on
pilot's
side.
When
aircraft
is
equipped
with
single
Nav/Com,
accelero-
meter
is
installed
in
the
vacant
Omni
indicator
instru-
ment
space.
15-18
15-50.
STALL
WARNING SYSTEM.
(Refer
to
figure
15-7.
)
15-51.
DESCRIPTION.
The
system
is
composed
of
an
adjustable
plate
on
left
wing
leading
edge,
con-
nected
to
a
reed
type
horn
by
means
of
plastic
tubing.
The
horn
is
actuated
approximately
5
to
10
miles
per
hour
above
stalling
speed
as
a
negative
air
pressure
area
at
wing
leading
edge
causes
a
reverse
flow of
air
through
horn.
By
moving
adjustable
plate
(6)
up,
actuation
of
horn
will
occur
at
a
higher
speed
and
moving
plate
down
causes
actuation
to
occur
at
a
slower
speed.
Center
adjustable
plate
opening
in
wing
leading
edge
upon
installation,
then
flight
test
aircraft,
observing
horn
actuation
during
stall.
Re-
adjust
plate
to
obtain
deSired
results
if
necessary.
Approximately
3/32
inch
adjustment
of
plate
will
change
speed
at
which
horn
actuation
occurs
by 5
miles
per
hour.
To
test
horn
operation,
cover
opening
in
plate
(6)
with
a
clean
cloth,
such
as
a
handkerchief
and
apply
a
slight
suction
by
mouth
to
draw
air
through
horn.
