JACKING INFORMATION
ITEM NUMBER
TYPE AND NUMBER REMARKS
CD
Block (Jack point not available) 1x4x4 padded with 1/4" rubber
CD
Jack
Any short jack of capable capacity
CD
Universal tail stand
Any tail stand of capable capacity
CD
Cessna #SE-576 (41-1/2" high) Universal jack stand (FOR USE WITH ITEM 2)
CD
Cessna #10004-98
Jack point * (SEE CAUTION)
Cessna #0441215-1 Jack point # (SEE NOTE 5)
Built-in jack pad Part of step bracket t
CD
#2-170 Basic jack Closed height: 69 1/2 inches; extended
#2-70 Slide tube height: 92" (Insert slide tube extension
(Use with item 1) into basic jack)
1. Wing
jacks are placed under front spar of wing just outboard of wing strut, and must
extend far enough to raise wheels off ground, and must be of adequate strength.
2. Attach a suitable stand to the tie-down ring. Be sure tail stand weighs enough to
keep tail down and under all conditions that it is strong enough to support any
weight that might be placed on it (place shot bags or sand bags on tail stand. In
addition,
the base of adjustable tail stand is to be filled with concrete for additional
weight
as a safety factor.
3. Operate jacks evenly until desired height is reached.
When using universal jack point (10004-98), flexibility of the gear strut will cause the
main wheel to slide inboard as the wheel is raised, tilting the jack. The jack must be
lowered for a second operation. Jacking both wheels simultaneously with universal
jack points is not recommended. Universal jack point may be used to raise only one
main wheel. DO NOT USE brake casting as a jack point.
4. Items (4), (5) and (6) are available from the Cessna Service Parts Center.
5. On tubular gear aircraft, the only fairing requiring removal is the fuselage-to-tube gear fairing.
Jack pad is inserted on tube in area between fuselage and upper end of tube fairing, then
jack aircraft as required.
* Thru Serials 15072003, A15000276, F15000658 and FA1500081.
#
Serials 15073004 thru 15073284, A15000277 thru A15000324, F15.000659 thru F15000833 and
FA1500082 thru FA15000166.
t Beginning with Serials 15073285, A15000325, F15000834 and FA15000167.

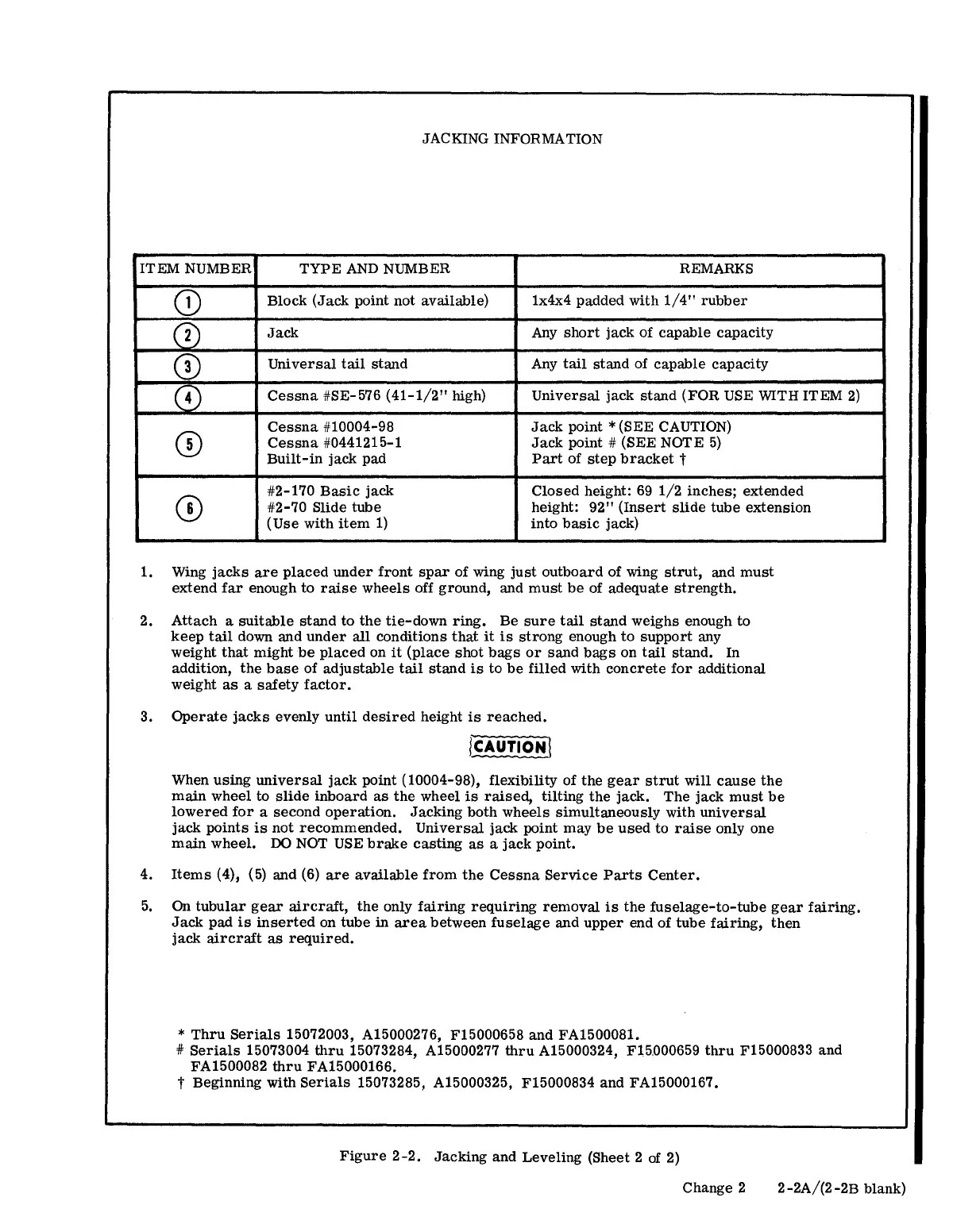

Figure 2-2. Jacking and Leveling (Sheet 2 of 2)
