1.
Knob
22.
Distributor Assembly
2.
Washer
23.
Clamp
3.
Cap 24.
Adapter
13
4.
Seal
25.
Insert
5.
Spacer
26.
Deflector
6.
Outlet Assembly
27.
Firewall
7.
Seal
28.
Housing
8.
Bullet Catch
29.
Spring
9.
Screw
30.
Arm Assembly
10.
Felt Washer
31.
Roll Pin
11.
Tube Assembly
32.
Clamp Bolt
12.
Elbow
Assembly
33.
Nut
"
13.
Tinnerman Nut
34.
Cotter Pin
14.
Cabin Air Control
35.
Valve Body
15.
Defroster Outlet
36.
Pin
16.
Cabin Heat Control
37.
Scoop Door
17.
Defroster Hose
38.
Fuselage Skin
DetailC
18.
Left Exhaust Muffler 39.
Screen
19.
Air Scoop
40.
Duct
20.
Inlet Hose
C
21.
Heater Hose
*. REFER TO SHEET 1
...... ~"' ........
..... ', ...........
FOR EFFECTIVE SERIALS
"
"
,
"
Detail 0
28
',,-----
~ "'~
BEGINNING WITH 1971 MODELS
34

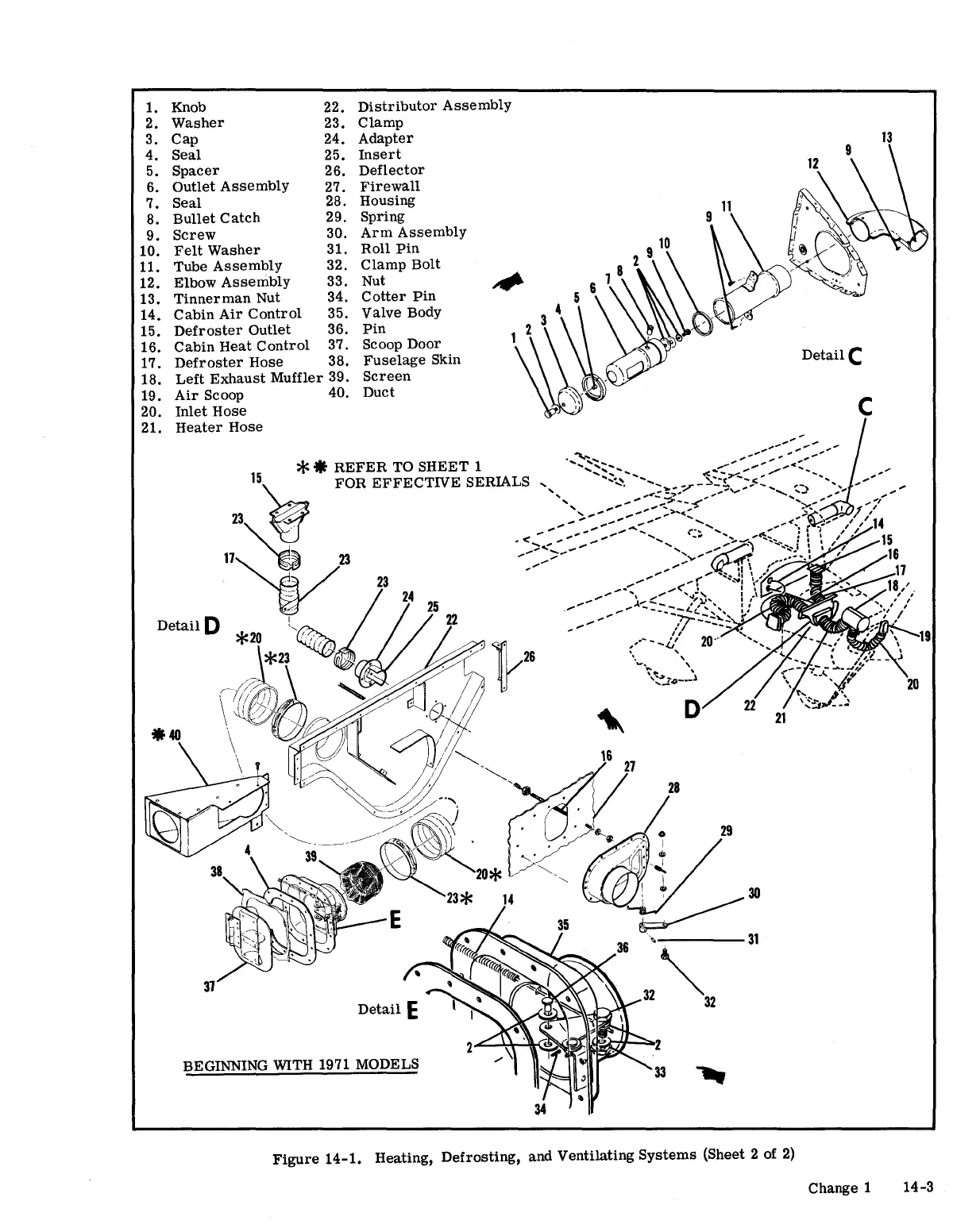

Figure 14-1. Heating, Defrosting, and Ventilating Systems (Sheet 2 of 2)
Change 1 14-3
