Cessna 150K - Page 276

To Next Page

To Previous Page

3/4"

RIVET

SPACING

1/4"

EDGE MARGIN

A-A

MS20470AD4 RIVETS

---"

ORIGINAL

PARTS

REPAIR

PARTS

REPAIR

PARTS

CROSS SECTION

FILLER

2024-T4

ALCLAD

CLEAN

OUT

DAMAGED AREA

'----ANGLE

2024-T4

ALCLAD

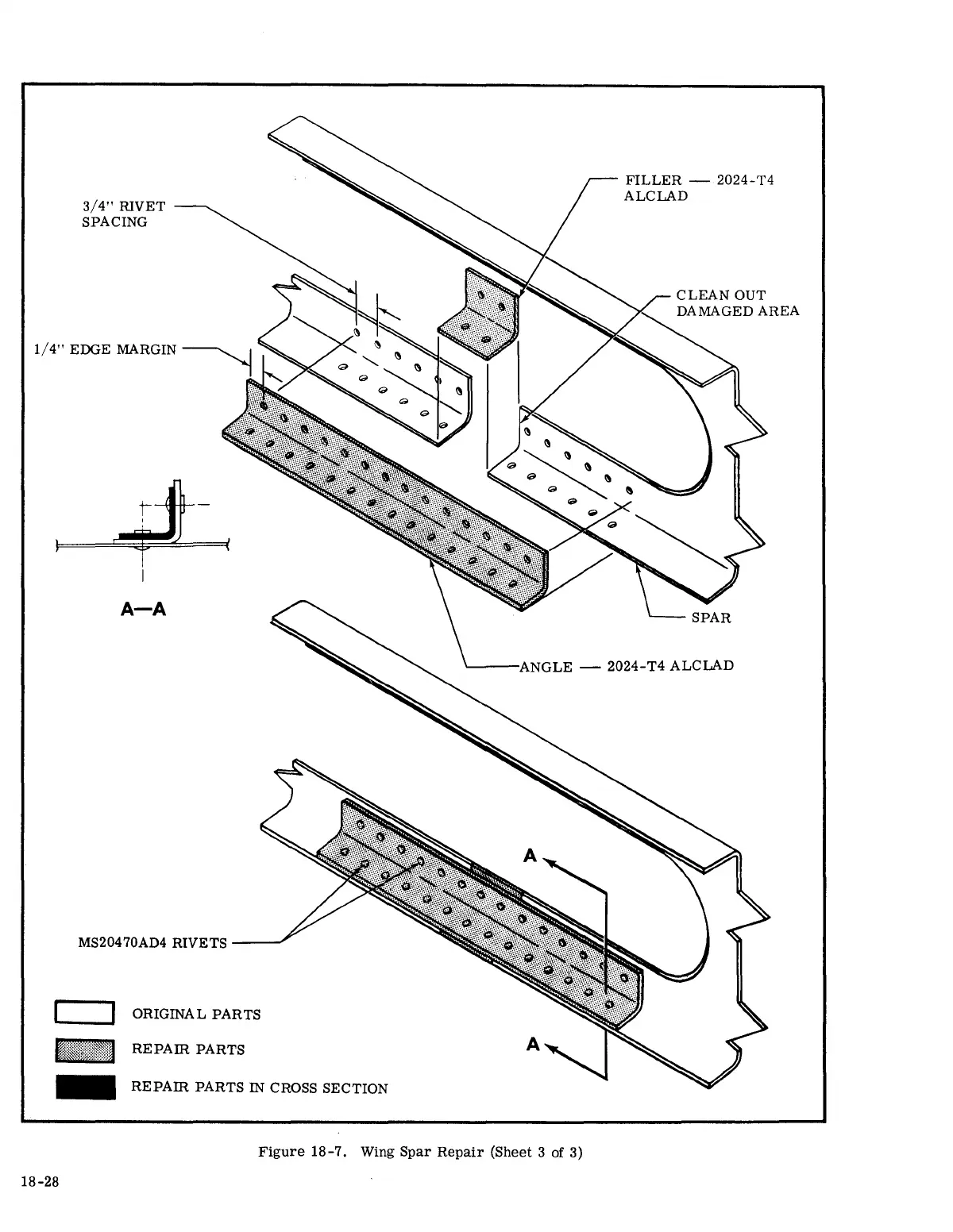

Figure

18-7.

Wing

Spar

Repair

(Sheet

3 of 3)

18-28
