Turn both chain adjusting nuts evenly until to drive chain has the correct value of slack.
●
Keep rear wheel shaft move same displacement on left and right fork.
NOTE
Rear w
heel shaft should be installed at
same level on left and right rear fork.
WARNI
NG
Misalignment of the
w
h
eel will result in
abnormal wear, and may result in unsafe
riding condition.
●
Tighten both
chain adjuster locknuts.
● Tighten
the rear axle nut to the specified torque.
●
Tightening Torque：80N
~100N
·
m
NOTE
If there is no torque w
rench, contact an
authorized dealer.
● Rotate rear wheel, measu
re the chain slack again and readjust if necessary.
① ②
③ ④
④
①
②
③

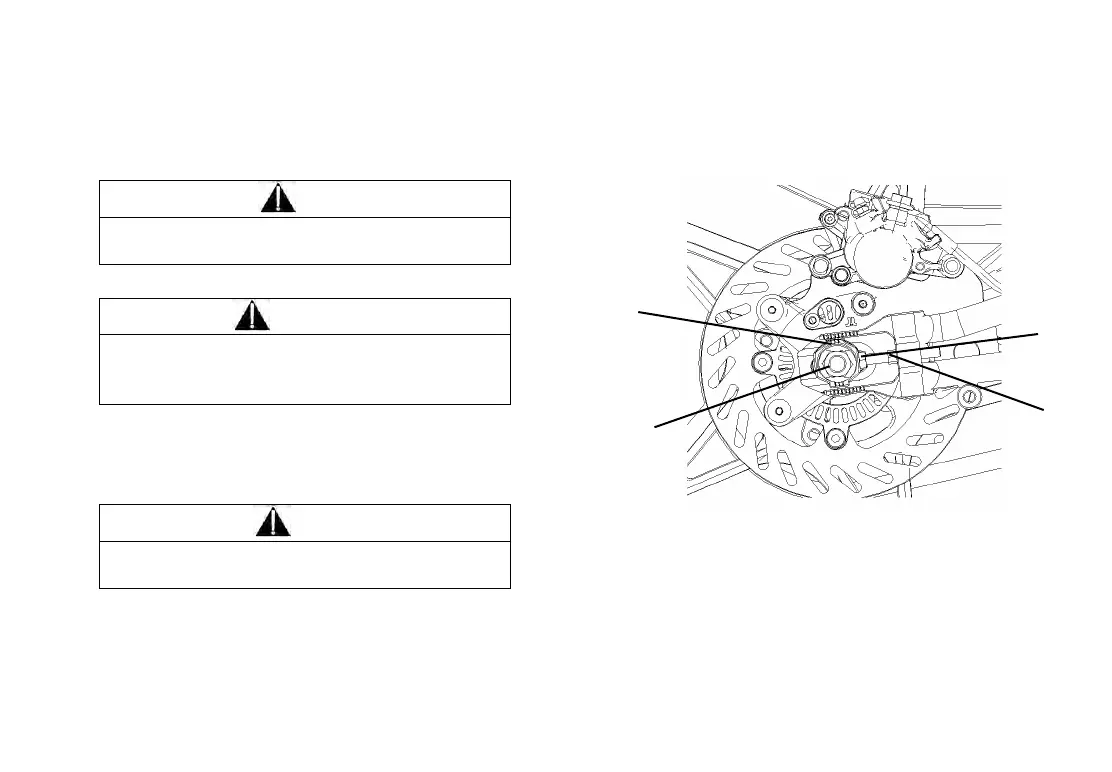

Cotter pin
Lock nut
Lock nut
Adjusting bolt
·m
