147
MAINTENANCE
Electrical
Fuses

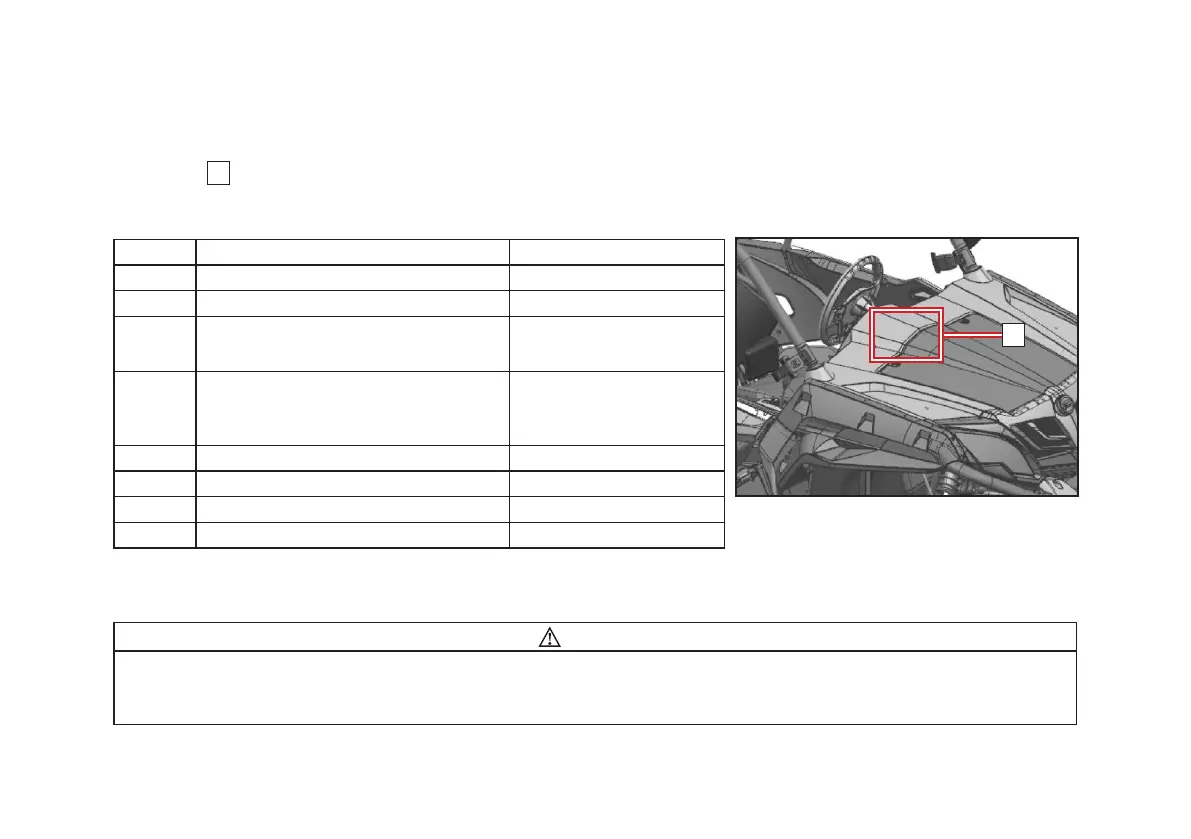

The fuses
1
are located under the front access cover. Removal of the inner storage compartment is required
to gain access. If a fuse is blown, turn o the main switch and install a new fuse of the specied amperage.
Turn on the main switch. If the fuse immediately blows again, contact your dealer.
CAUTION
To prevent an accidental short-circuit, turn o the main switch before checking or replacing fuses. Always
use a fuse with the correct specied rating. Never use conductive material in place of the proper fuse. Using
an improper fuse can cause damage to the electrical system and may lead to a re.
1
Ref FUSE RATING
-- Main fuse (Under driver seat) 30A \ 40A(CF500UTR)
-- EPS fuse (Under driver seat) 40A
F2
Fuel pump/EFI/ignition power
supply/auxiliary starter relay
15A (CF1000UTR-2)
\ 10A
F3
Turn signal/position light/
dashboard/ horn/di. gear motor
relay
10A\
15A(CF1000UTR-2)
F4 DC outlet/Mp3/Navigation 15A
F5 Headlight 15A
F6 Fan motor 15A
F7 ECU power supply 5A
