9. Ignition System

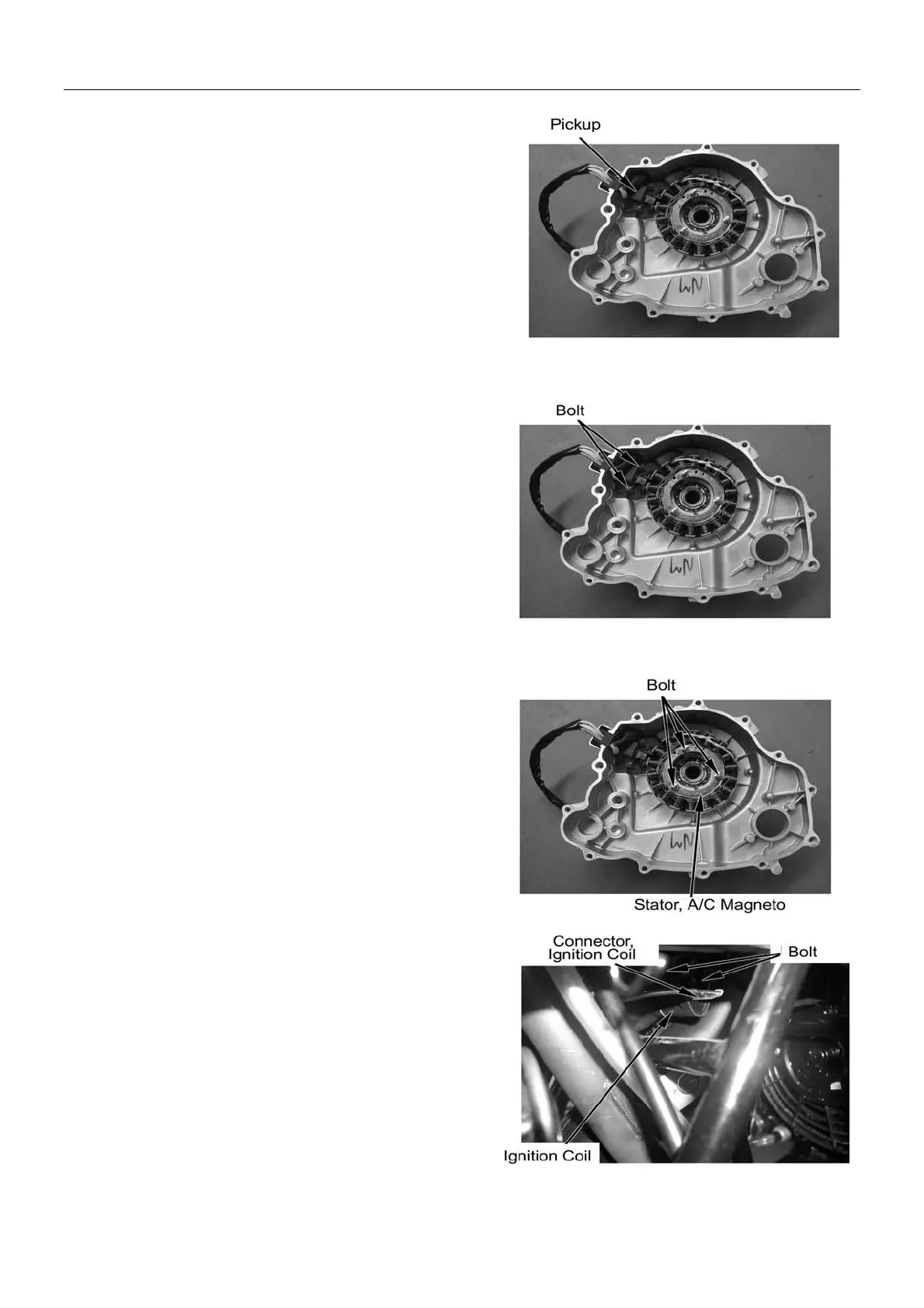

Pickup
Remove:
-- AC magneto connector
--Water pump inlet hose and outlet hose, and drain
coolant. (Chapter 4)
--Crankcase breather hose. (Engine Service)
--Muffler. (Chapter 2)
-- Engine right side cover. (Engine Service)
Note:
Stator is installed on the right side cover and is attached
by the magnet of rotor. Be careful not to hurt the fingers
when removing.
Disconnect primary terminal of ignition coil
.
Loosen bolt, remove AC magneto stator and pickup.
Installation
Reverse the removal procedure for installation.
Ignition Coil
Remove left side panel (→2-6)
Remove spark plug cap from spark plug (Engine
Service)
Loosen bolt, and remove ignition coil.
Installation
Reverse the removal procedure for installation.
Note:
Wires, cables and hoses should be routed properly
(→Chapter 1).
9-6
