10. Lighting, Instruments, Switches

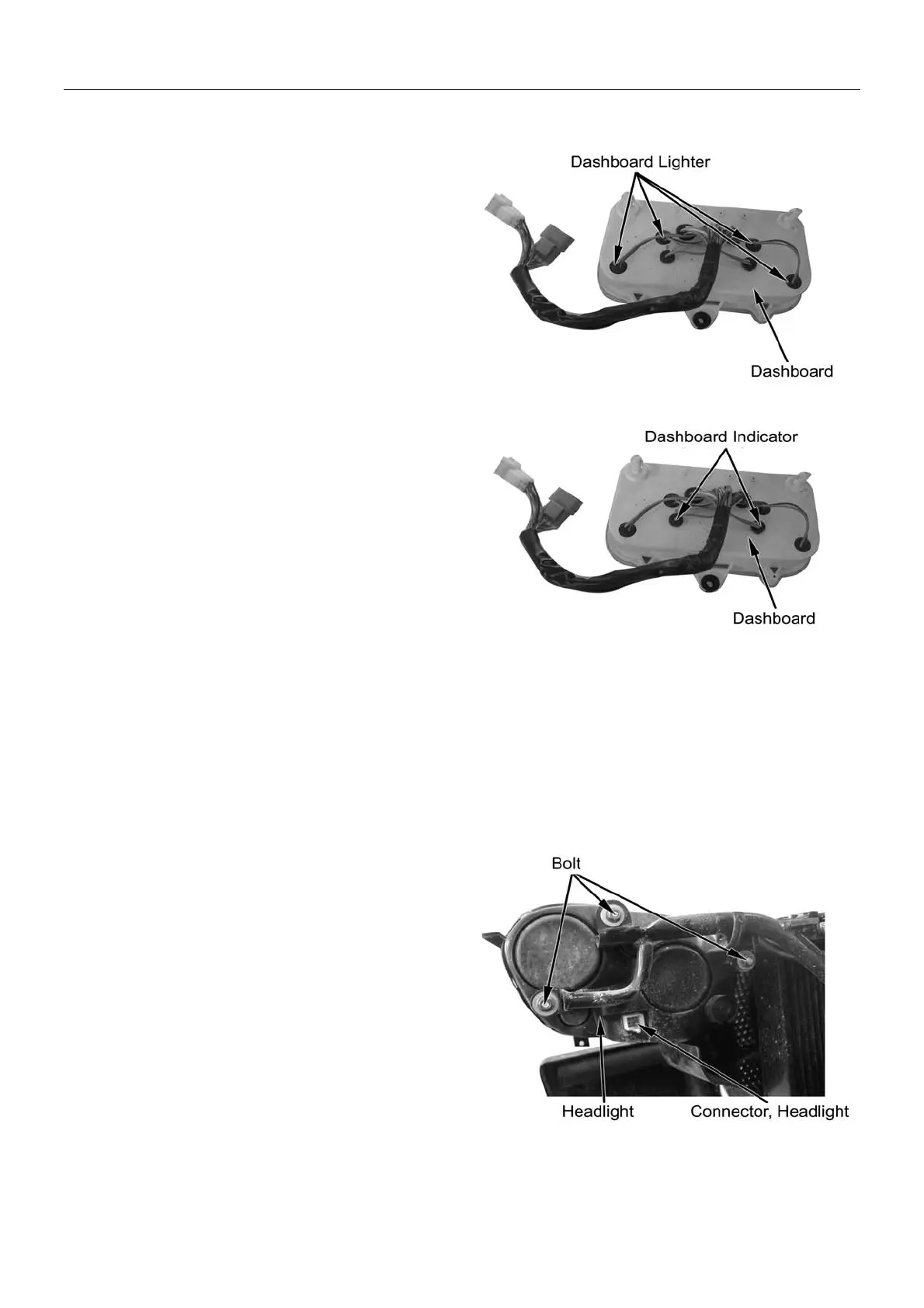

Dashboard Lighter Bulb
Remove dashboard (→10-9)
Remove bulb socket and replace with a new bulb.
Bulb specification: 12V-1.7W
Note:
Main cable and wires should be routed properly (→
chapter 1)
Reverse the removal procedure for installation.
Dashboard Indicator Bulb
Remove dashboard (→10-9)
Remove dashboard indicator socket.
Remove indicating light bulb and replace with new one.
Bulb specification: 12V-3.4W
Reverse the removal procedure for installation.
Headlight
Remove:
--Front fender(→2-8)
--3 fixing bolts of headlight cover.
--Headlight cover
--Fixing bolt of headlight, headlight connector
--Headlight.
