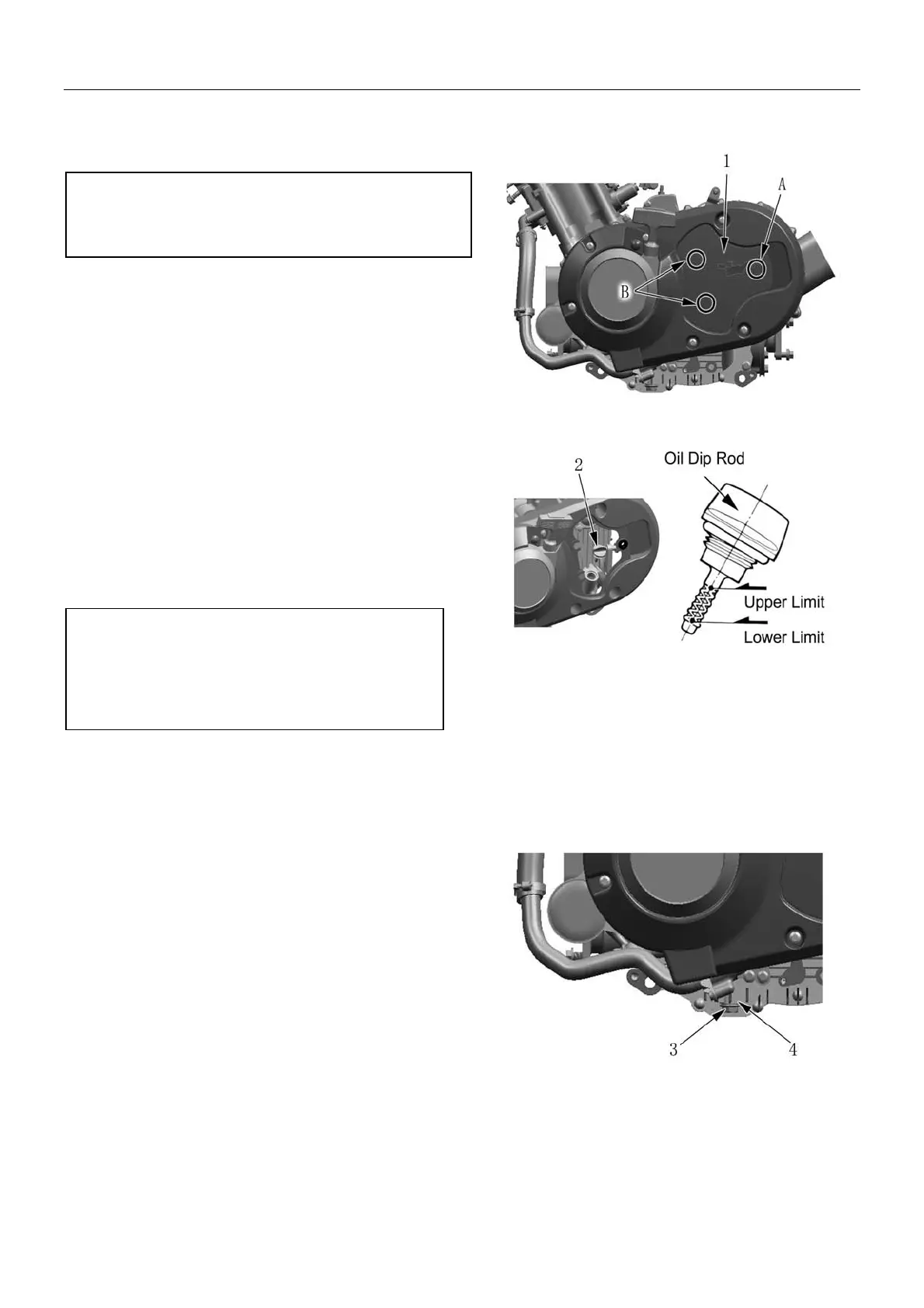

14. Checks & Adjustment
Inspection of Lubrication System
Check Engine Oil Level
z Keep the engine in a plan position.
z Remove the fixture A, fixture B, then remove the left
side cover 1.
z Remove oil dip rod 2
z Clean oil dip rod, insert oil dip rod but do not tighten
it.
z Take out oil dip rod and check if oil is between upper
and lower limit.
z If the engine oil is insufficient, fill more oil until the
sufficient oil is obtained.
Engine Oil: SAE10W/40 classification SF or SG
Replacing Engine Oil
z Remove left side cover 1, oil dip rod 2, drain bolt 3
and washer 4.
z Drain out the engine oil while the engine is still
warm.
z Clean oil dip rod, drain bolt and washer with solvent.
z Install washer and drain bolt.
Drain Bolt: 30 N.m
z Fill engine oil. ( about 1900ml)
14-8
Replace engine oil and oil filter initially at 20
hours or 200km and every 80 hours or 2000km
thereafter.
Note:
z Keep the engine in a plan position
z Do not tighten oil dip rod when measuring oil
level
