15. Engine Removal, Inspection & Installation
Ⅰ
Engine Removal
ΔPreparation before engine removal
z Prepare a proper tray used for load of components
z Prepare necessary removal and assembly tools
z Drain up engine oil（→11-8）
z Drain up coolant（→ 11-10）

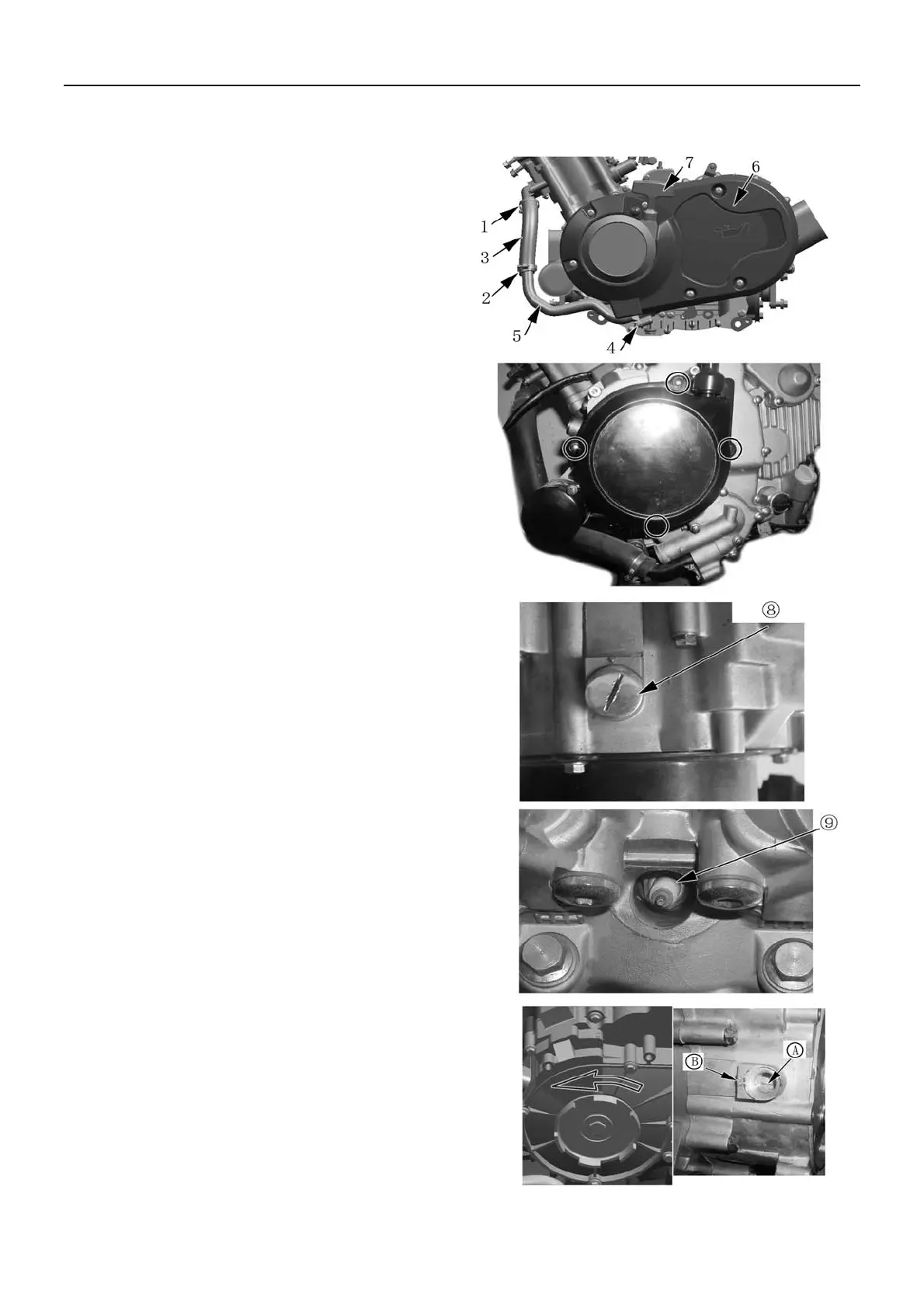

△ Engine Periphery
Water Hose/Pipe
z Remove water hose clamp and①②;
z Remove water hose③
z Remove screw④ and water hose⑤
Left Side Cover
z Remove 6 bolts(M6X20) of left side cover⑥
z Remove left side cover⑥
Recoil Starter
z Remove 4 bolts（M6X12）of recoil starter
z Remove recoil starter⑦
Inspection Plug
z Remove inspection plug with screwdriver⑧
ΔEngine Front Side
Spark Plug
z Remove spark plug with special wrench⑨
Tool: Spark Plug Wrench
z Turn crankshaft, align T.D.C. line A on magneto rotor
with mark B of left crankcase
15-2
