15. Engine Removal, Inspection & Installation

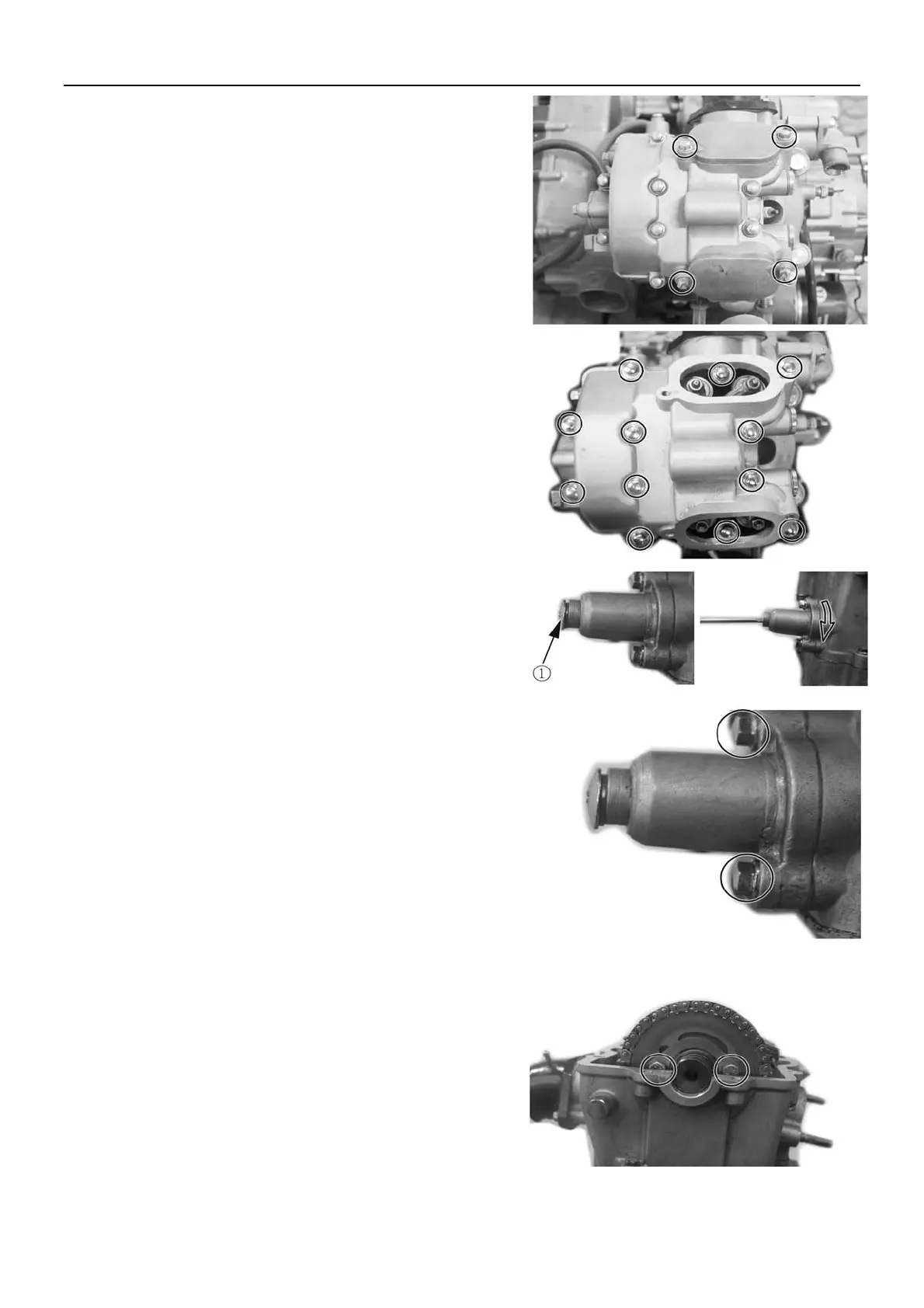

Cylinder Head Cover
z Remove valve adjusting cover
z Remove12 bolts of cylinder head cover
z Remove cylinder head cover
Timing Chain Tensioner
z Remove screw plug , insert ① a flat screwdriver into
slot of timing chain tensioner adjuster , turn it
clockwise to lock tensioner spring;
z Remove tensioner fix bolt
z Remove tensioner and gasket
Camshaft
z Loosen timing sprocket bolt;
z Remove timing sprocket bolt and lock;
15-3
