15. Engine Removal, Inspection & Installation

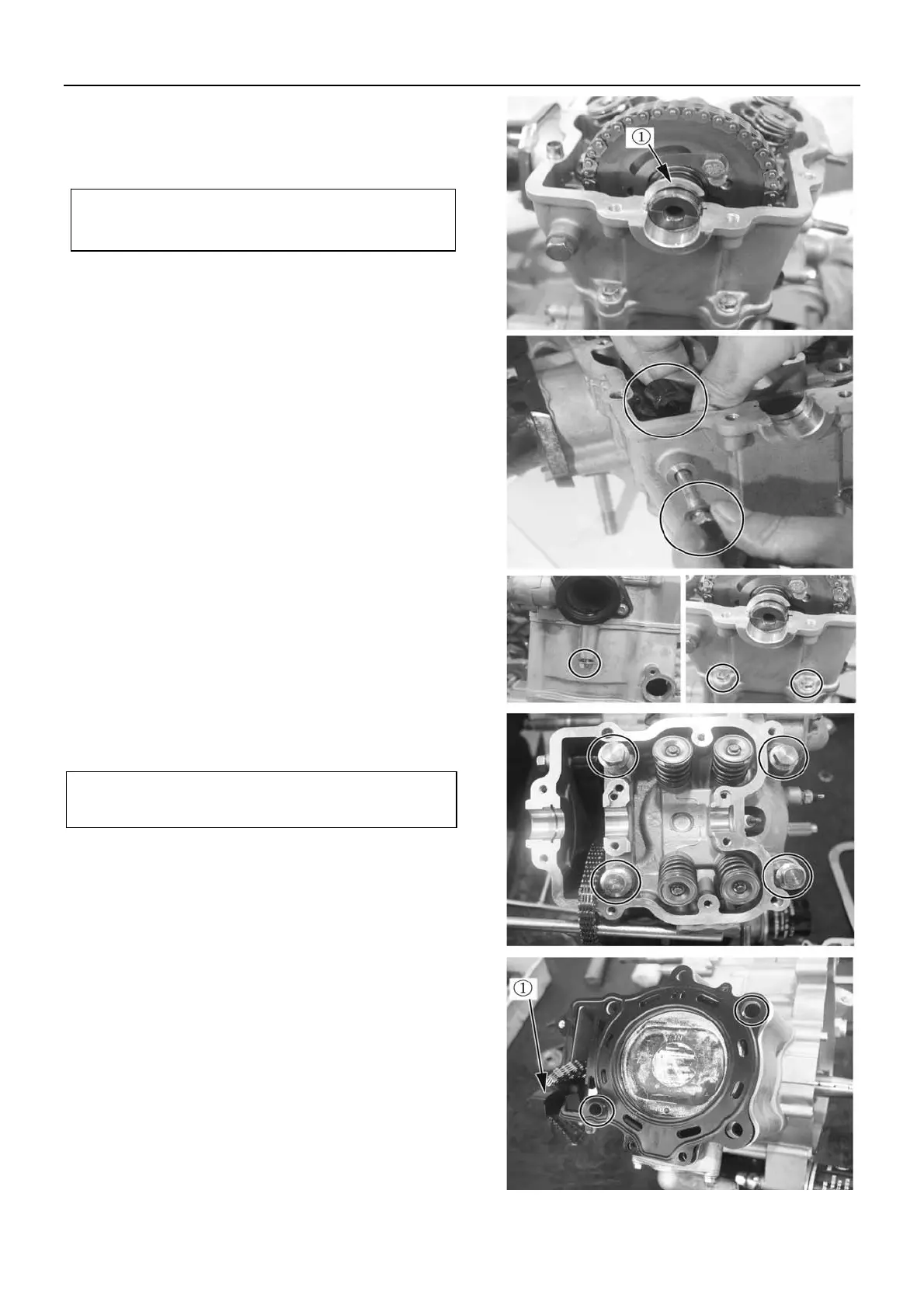

z Remove C-ring①
z Remove timing sprocket from camshaft, remove
camshaft
z Remove tensioner plate
Cylinder Head
z Remove cylinder head bolt
z Remove cylinder head bolts diagonally;
z Remove cylinder head
Cylinder
z Remove dowel pin and cylinder head gasket
z Remove timing chain guide①
15-4
Note: Take care not to drop spacer, bolt, bolt lock
and C-ring into crankcase.
Note: Take care not to drop dowel pin into
crankcase
