15. Engine Removal, Inspection & Installation

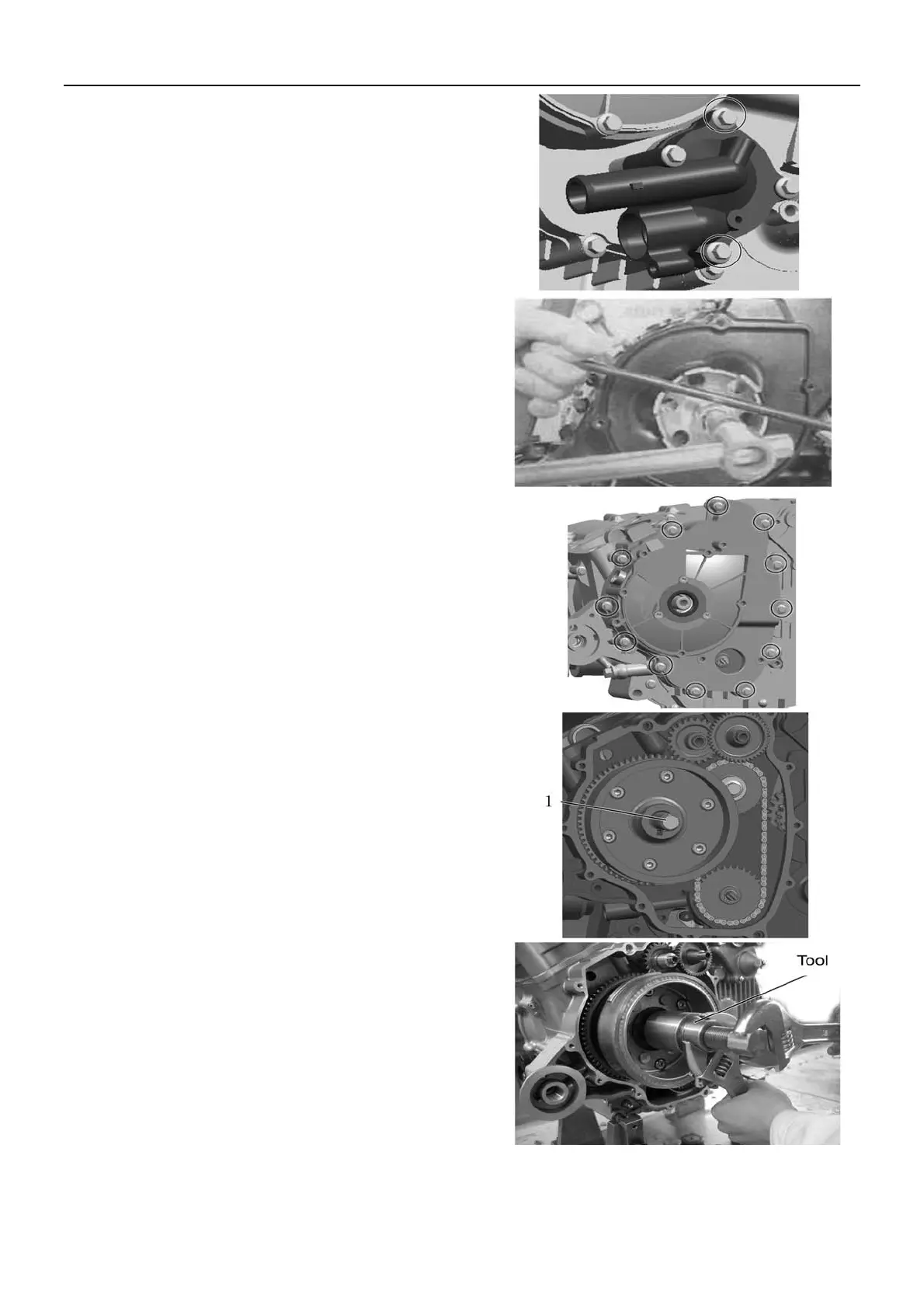

Water Pump
z Screw out bolt of water pump
z Remove water pump
Sheave Drum
z Remove the sheave drum by using a suitable bar;
z Remove washer and sheave drum
Left Crankcase Cover
z Remove bolts;
z Remove left crankcase cover
z Remove dowel pin and gasket
Magneto Rotor
z Install attachment 1 to crankshaft end
z Install special tool to rotor thread;
z Remove rotor and woodruff key
Tool: Rotor Remover
15-7
