15. Engine Removal, Inspection & Installation

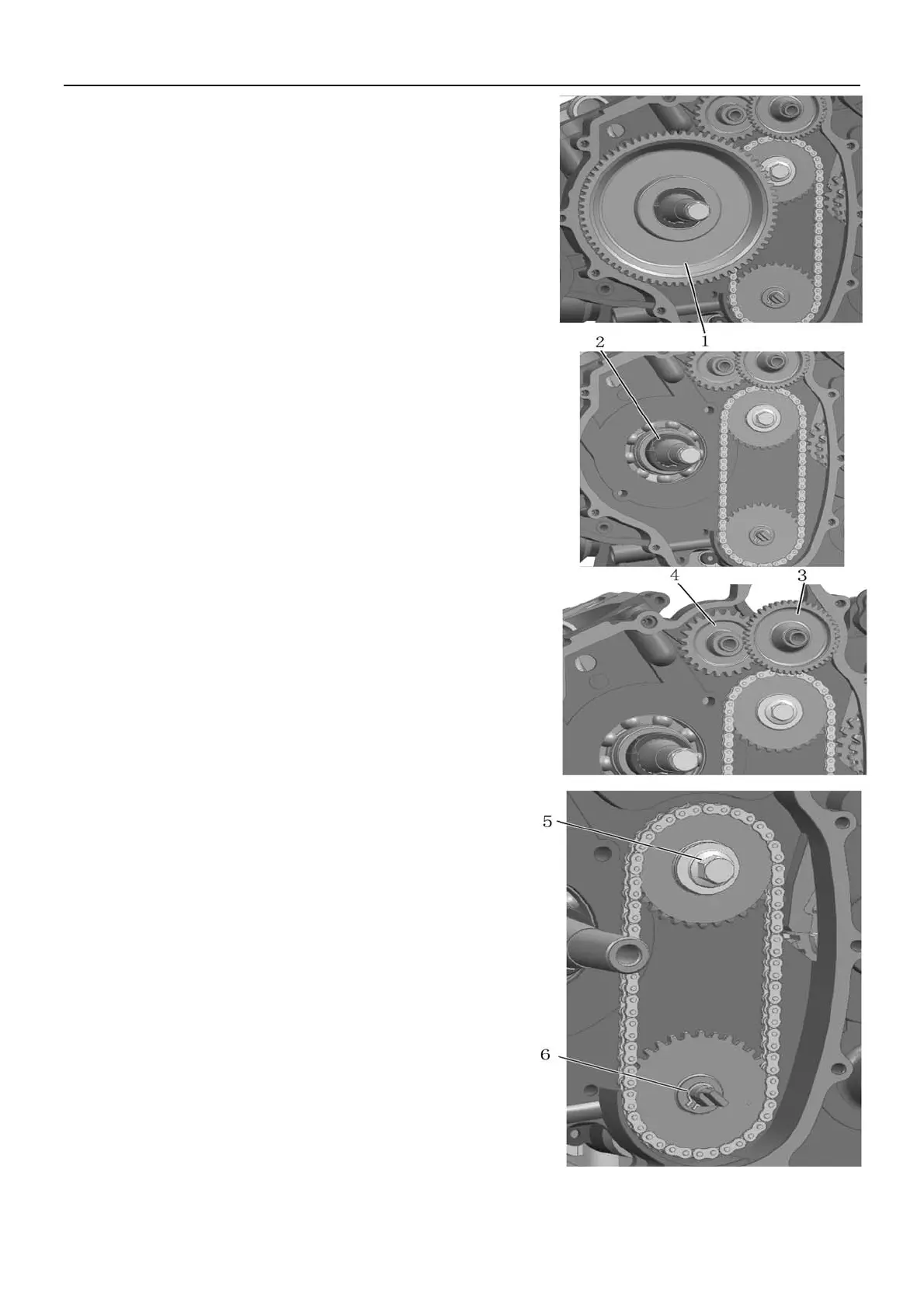

Starting Motor Gear
z Remove driven gear 1 and needle bearing
z Remove spacer 2
z ·Remove dual gear and shaft 3
z ·Remove idle gear and shaft 4
Oil Pump Sprocket and Chain
z Remove drive sprocket nut 5
z Remove C-ring 6
z Remove oil pump drive and driven sprockets and
chain
