15. Engine Removal, Inspection & Installation
Δ Engine Right Side

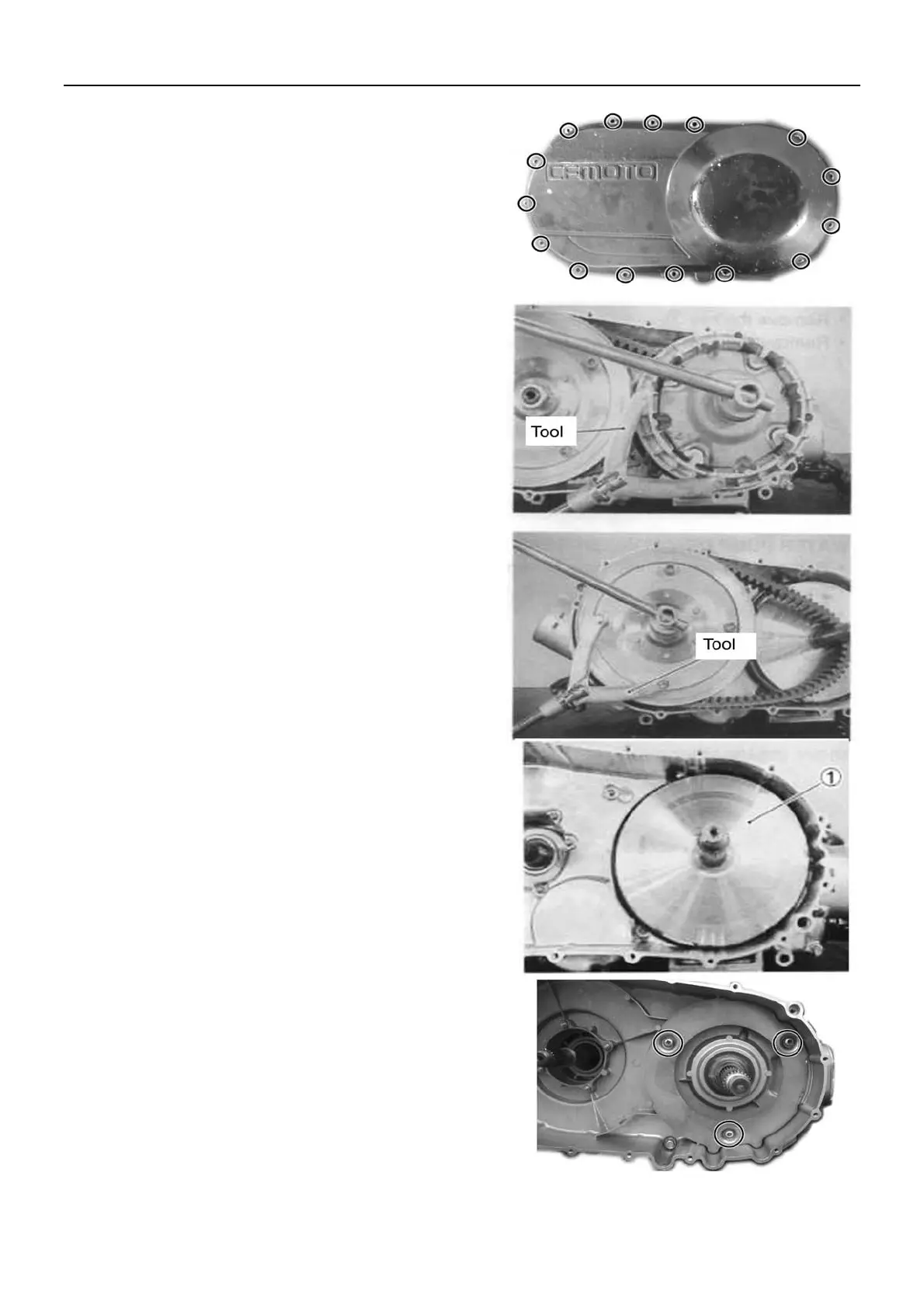

CVT Cover
z Remove bolt of CVT cover
z Remove CVT cover
z Remove gasket and dowel pin
CVT(Continuously Variable Transmission)
z Remove primary sheave nut with special tool
z Remove primary sliding sheave
z Remove secondary sheave nut with special tools
z Remove secondary sheave
z Remove drive belt
Tool: Sheave Holder
z Remove primary fixed sheave ①
z Remove bolt for air guide plate.
z Remove air guide plate
