15. Engine Removal, Inspection & Installation

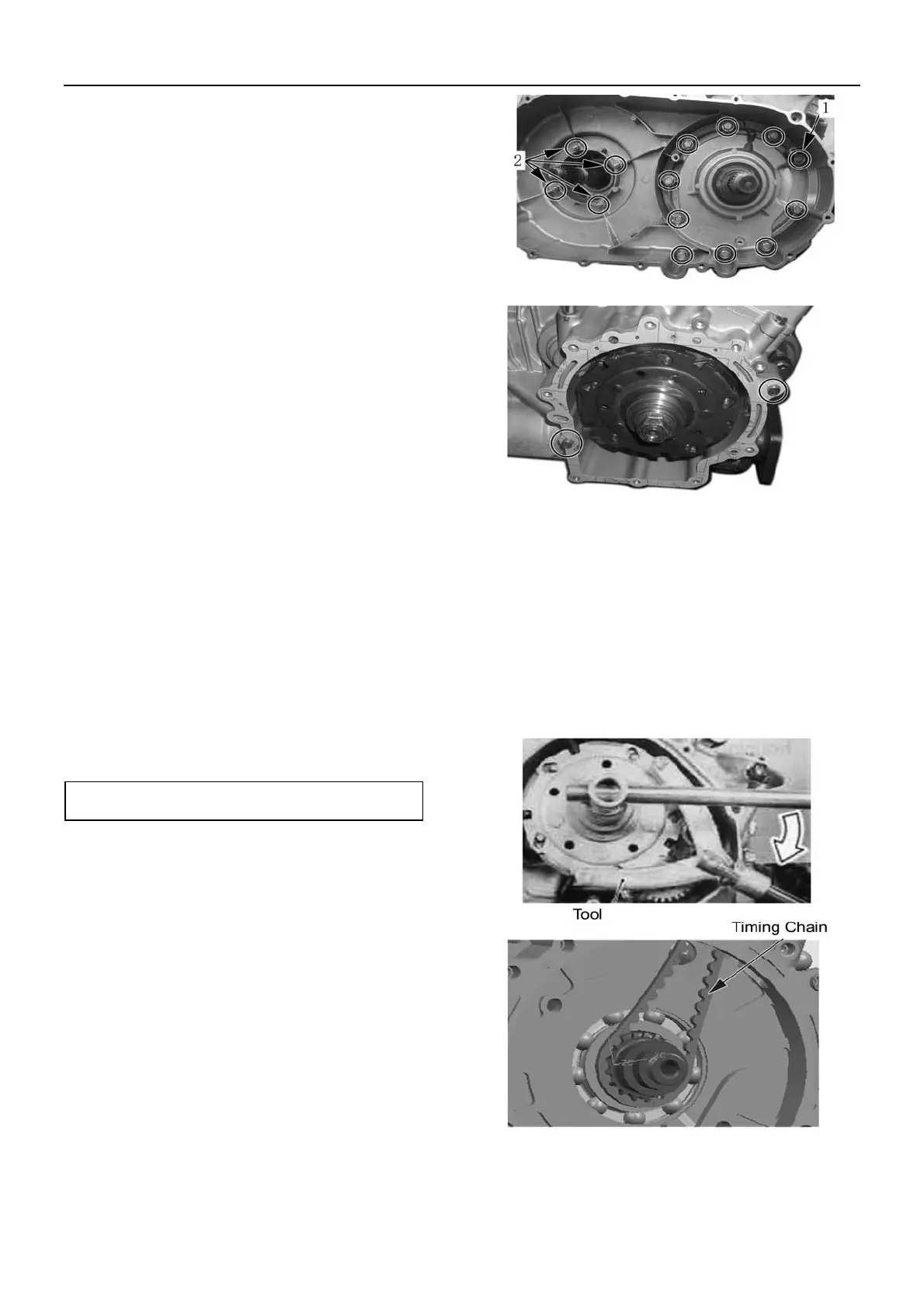

CVT Case
z Remove bolt 1 of CVT case
z Remove nut 2 of CVT case
z Remove outer clutch face and CVT case
z Remove dowel pin, front and rear gasket
Clutch
z Remove one-way clutch
z Remove clutch shoe fixing nut with special tool
z Remove clutch shoe.
Note: The clutch shoe nut has left-hand threads.
Timing Chain
z Remove timing chain
15-10
