15. Engine Removal, Inspection & Installation
Engine Center

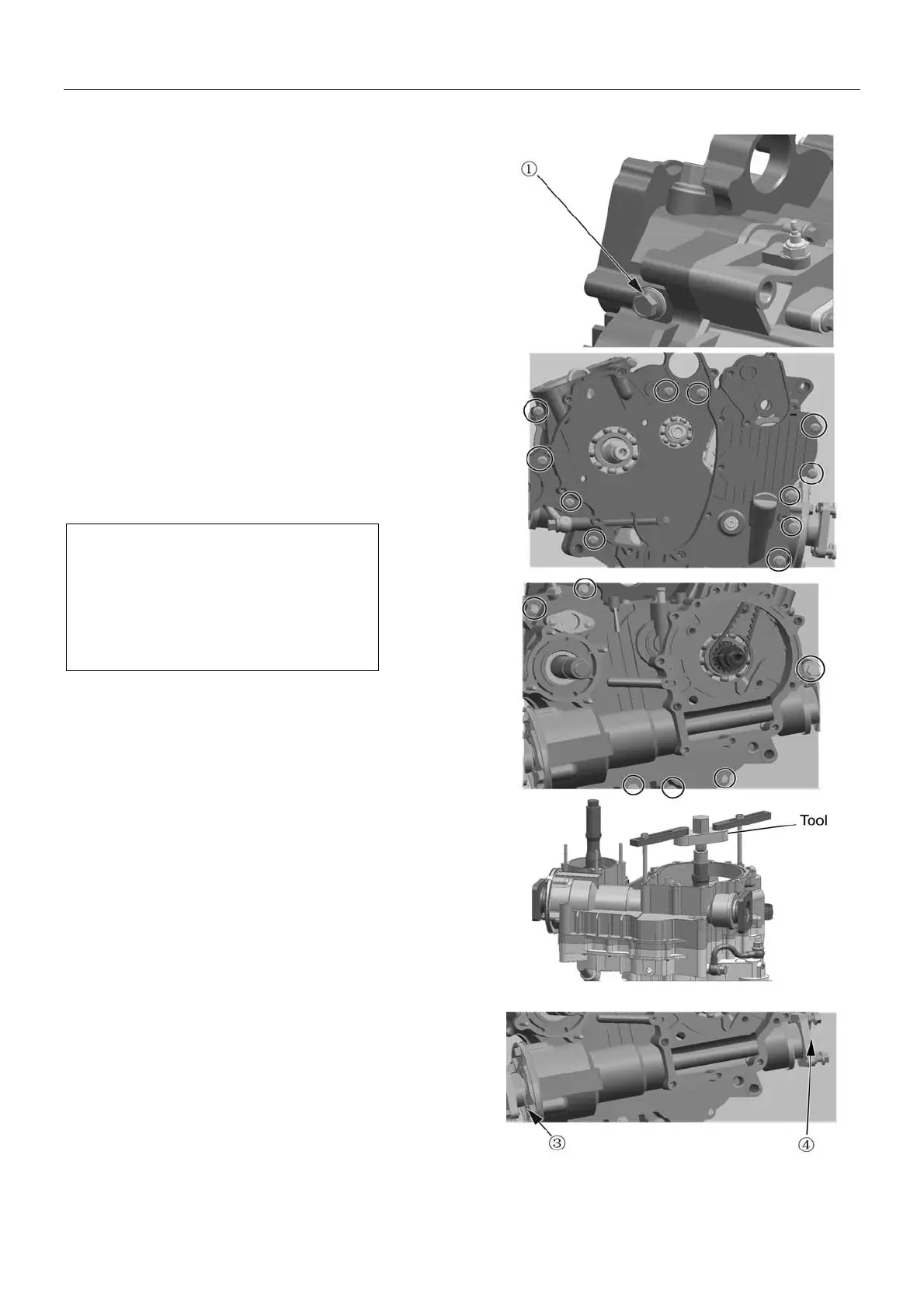

Gear position bolt
z Remove gear position bolt 1
z Remove spring and steel ball
z Right Crankcase
z Remove left crankcase bolts
z Remove right crankcase bolts
z Separate right crankcase with special tool
Caution
z The Crankcase separator plate
should be parallel with the end face
of crankcase
z Crankshaft should remain in the left
crankcase half.
Tool: Crankcase separator
Driven Bevel Gear, Front Output Shaft
z Remove bevel gear cover bolt
z Remove driven bevel gear ③
z Remove front output shaft nut ④
15-11
