15. Engine Removal, Inspection & Installation
Install spacer

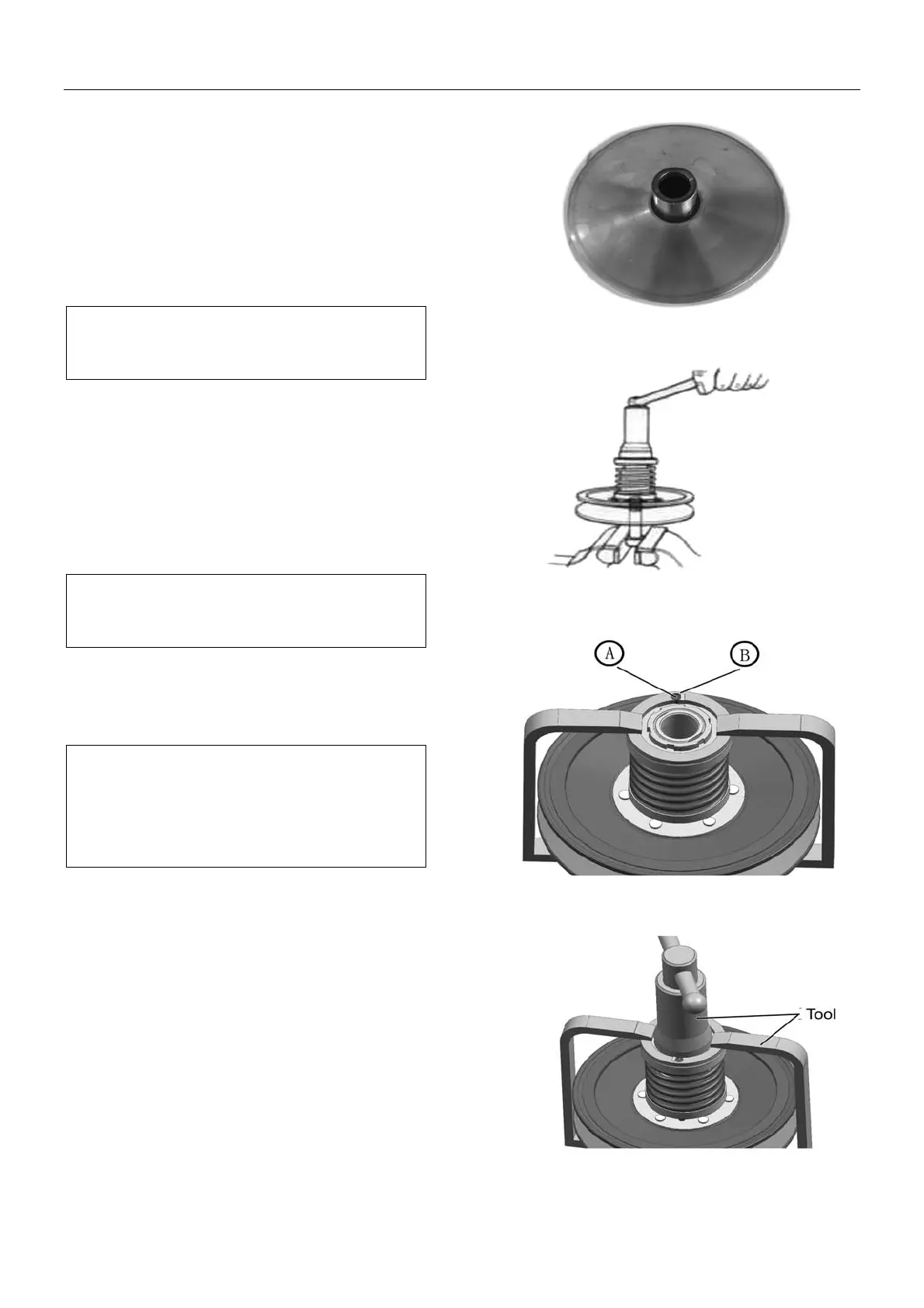

Secondary Sheave
Disassembly
z Use special tool and holder to hold the secondary
sheave. Remove secondary sheave nut with special
tool.
Caution:
Do not remove the ring nut before attaching the
clutch spring compressor.
Tool: Nut Wrench
Sheave Holder
z Attach special tool to the secondary sliding sheave
and compress it by turning in the tool handle.
Note:
Make sure that spring end A is inserted into slot
B of the tool handle.
z Remove ring nut.
Tool: Secondary sliding sheave spring compressor
Note:
Since a high spring force applies to the
secondary sliding sheave, take special care that
the secondary sliding sheave will not come off
abruptly.
z Slowly loosen tool handle and remove the special
tool. tool
15-32
