15. Engine Removal, Inspection & Installation

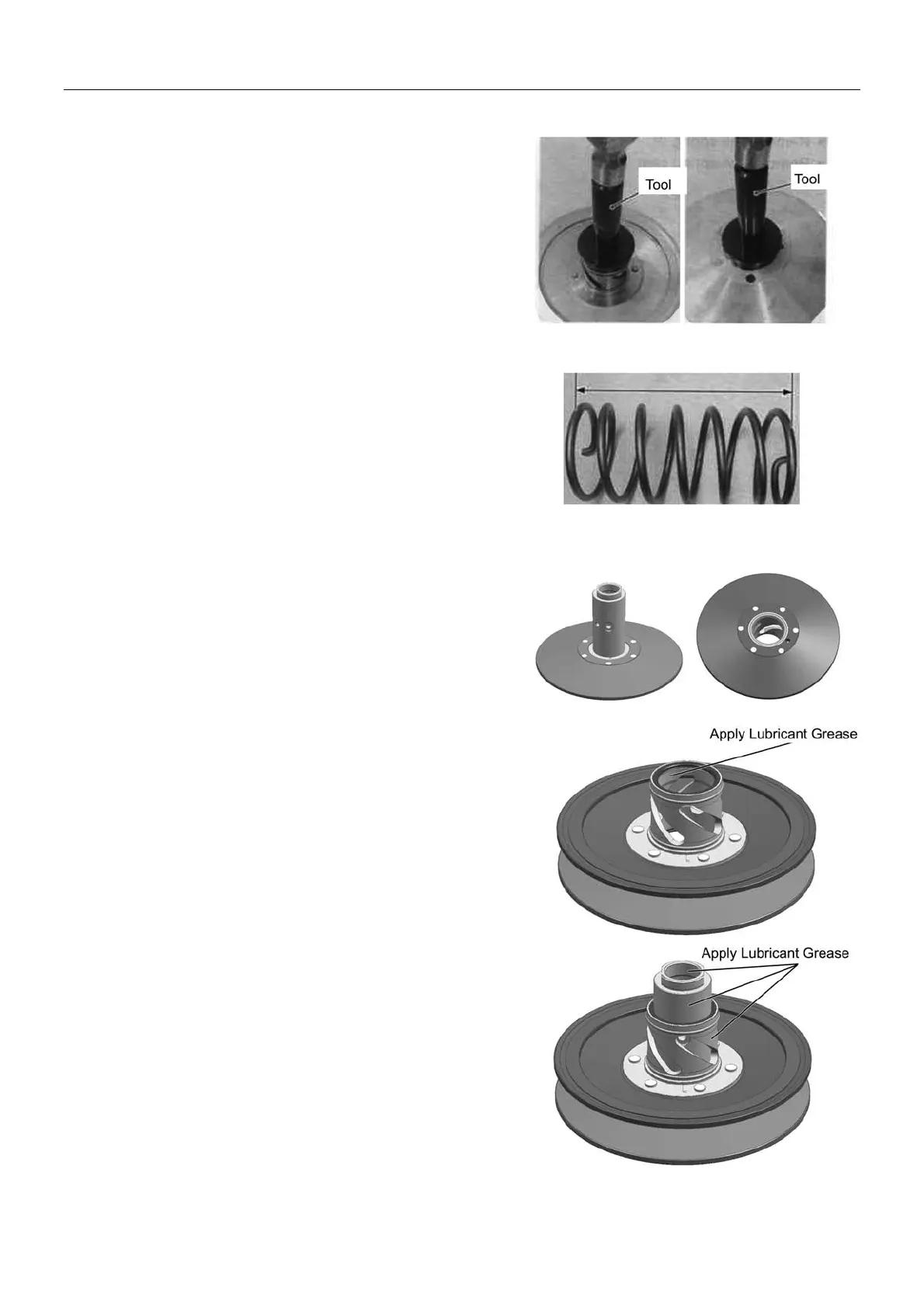

z Install oil seal with special tool.
Tool: Bearing install set
tool tool
Secondary Sheave Spring
z Use vernier caliper to check the spring free length. If
the length is shorter than the service limit, replace
with a new one.
Service Limit: 145.4mm lubricant grease
Secondary Sliding and Fixed Sheave
z Check drive face for any abnormal condition such
as stepped wear or damage.
Wear or damage: → Replace
Lubricant grease
Assembly
z Install a new O-ring
z Apply lubricant grease to O-ring, oil seal lip and
guide pin groove.
Material: lubricant grease
