15. Engine Removal, Inspection & Installation

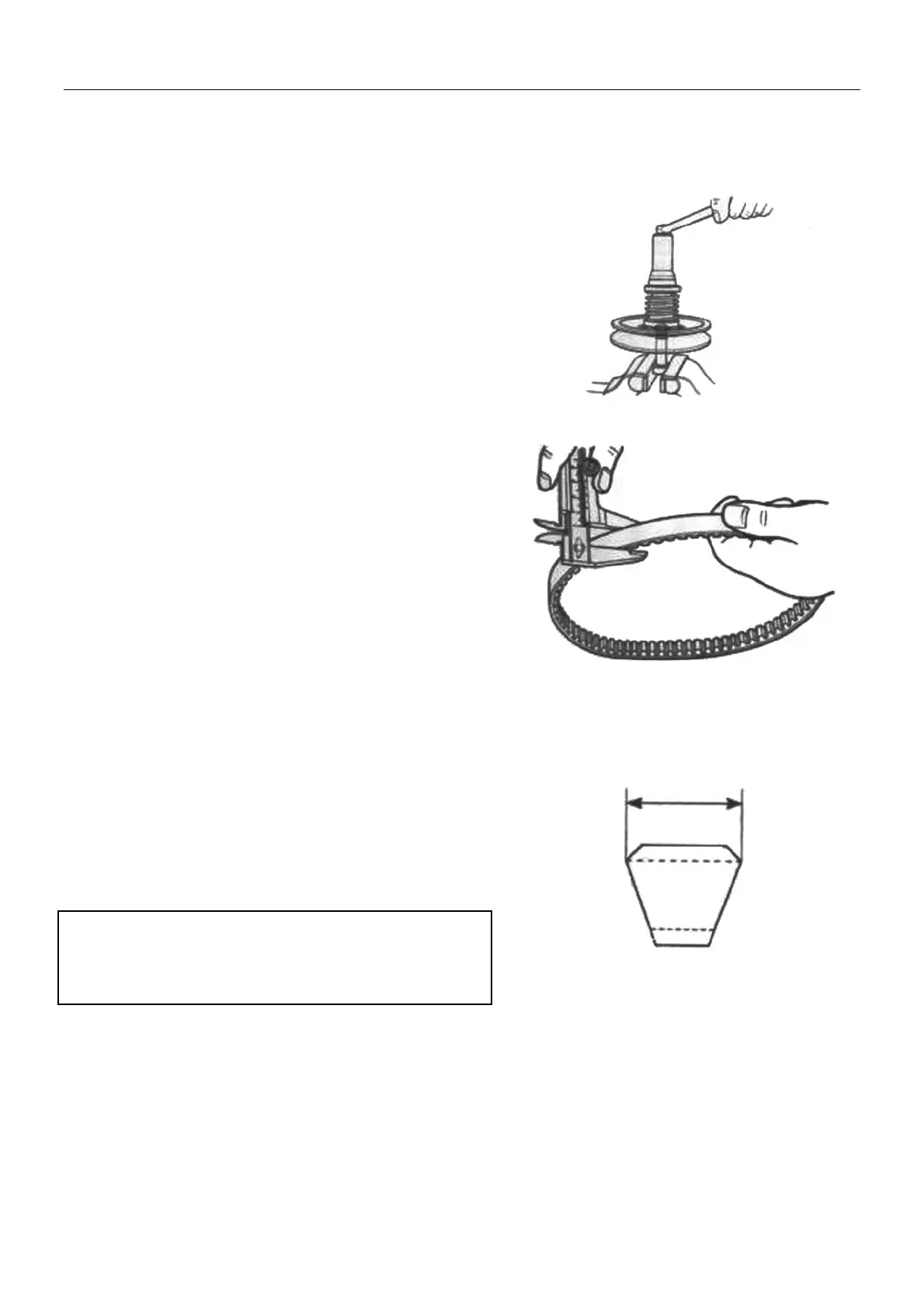

z Tighten the ring nut with special tool to the specified
torque.
Ring Nut Tightening Torque: 100N·m
Tool: Ring nut wrench
Sheave Holder
Drive belt
z Check belt for any greasy substance.
z Check contact surface of belt for any cracks and
damage.
z Check belt width with vernier caliper.
Damage, width out of range: →Replace
Belt width service limit: 33.5mm
Tool: vernier caliper
Caution:
If belt surface is stained with grease or oil, degrease the
belt thoroughly.
