15. Engine Removal, Inspection & Installation

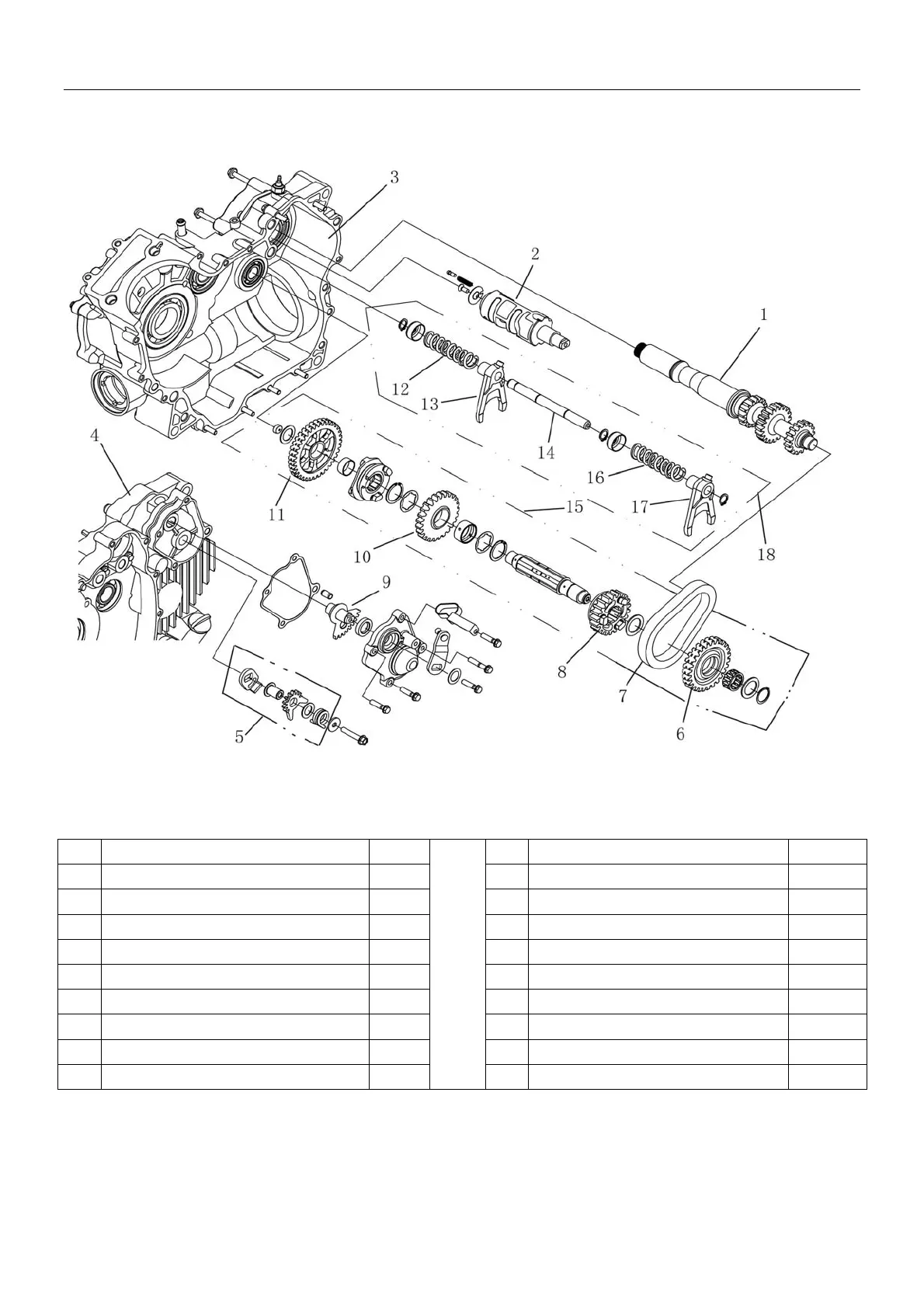

Transmission
No. Description Qty No. Description Qty.
1 MAIN SHAFT. GEARSHIFT 1 10 DRIVEN GEAR, HIGH RANGE 1
2 SHIFT CAM 1 11 DRIVEN GEAR, LOW RANGE 1
3 RIGHT CRANKCASE 1 12 SPRING, SHIFT FORK 1
4 LEFT CRANKCASE 1 13 RIGHT SHIFT FORK 1
5 DRIVEN SECTOR GEAR 1 14 GUIDE BAR 1
6 SPROCKET, REVERSE GEAR 1 15 DRIVEN SHAFT 1
7 CHAIN, REVERSE GEAR 1 16 SPRING, SHIFT FORK 1
8 DRIVEN OUTPUT GEAR 1 17 LEFT SHIFT FORK 1
9 DRIVE SECTOR GEAR 1
18 SHIFT FORK ASSEMBLY 1
15-37
