15. Engine Removal, Inspection & Installation

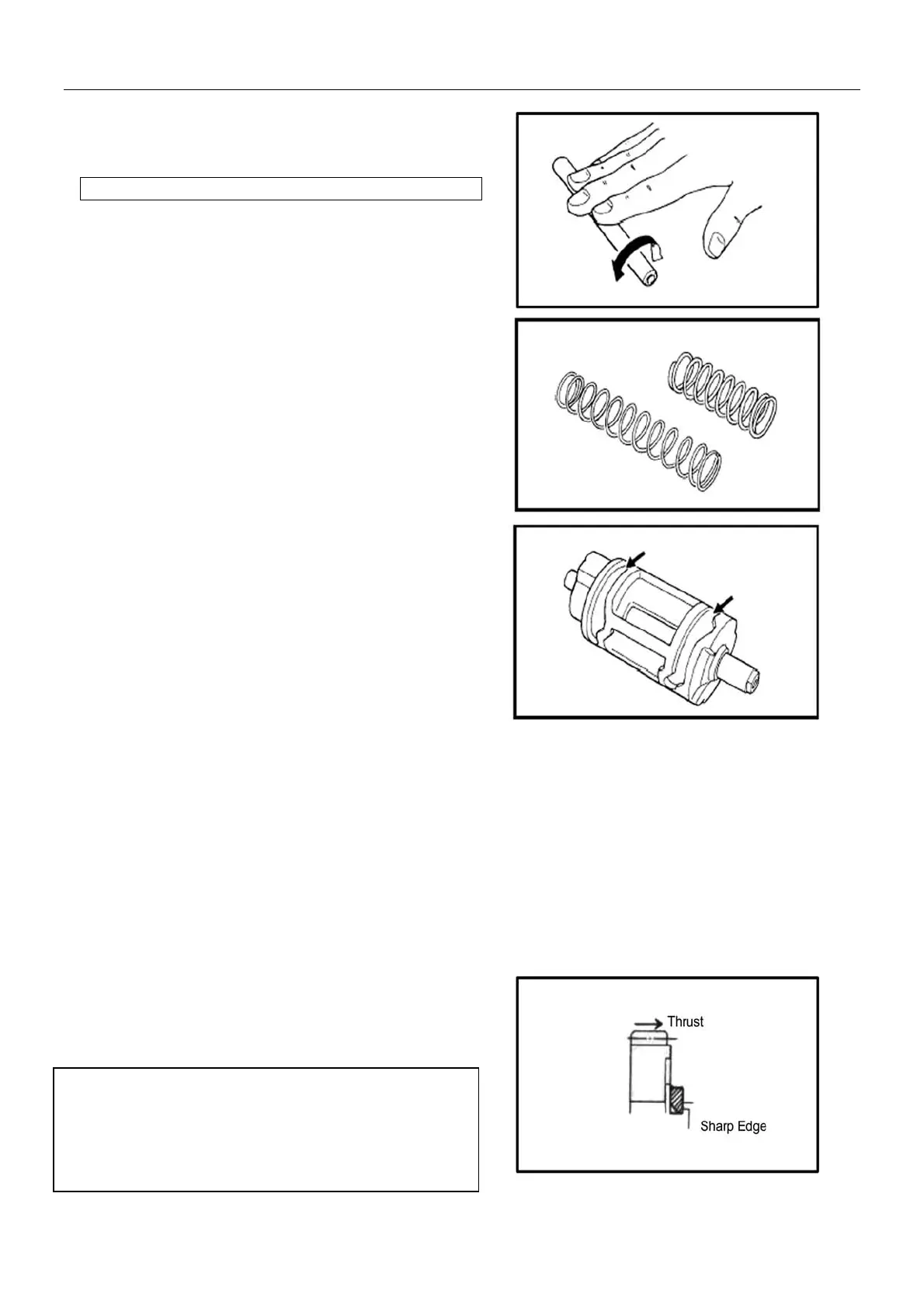

z Put the guide bar on a flat plate and roll it. In case of
any bend, replace with a new one.
NOTE:DON NOT attempt to correct a bent guide bar.
z Check shift fork spring for breakage, damage
Broken or damaged: → Replace
z Check shift cam groove for scratches, damage.
Scratch or damage: → Replace
Assembly
Reverse the removal procedure for assembly. Pay
attention to the following:
z Use new retainers. Pay attention to the direction of
the retainers. Fit to the side where the thrust is as
illustrated.
z Coat the gears and shafts with engine oil before
assembly.
Note:
z Do not reuse the retainers
z Do not expand of the gap end of new retainers too
wide when assembling.
z Make sure that all the retainers are properly fitted.
15-40
