15. Engine Removal, Inspection & Installation

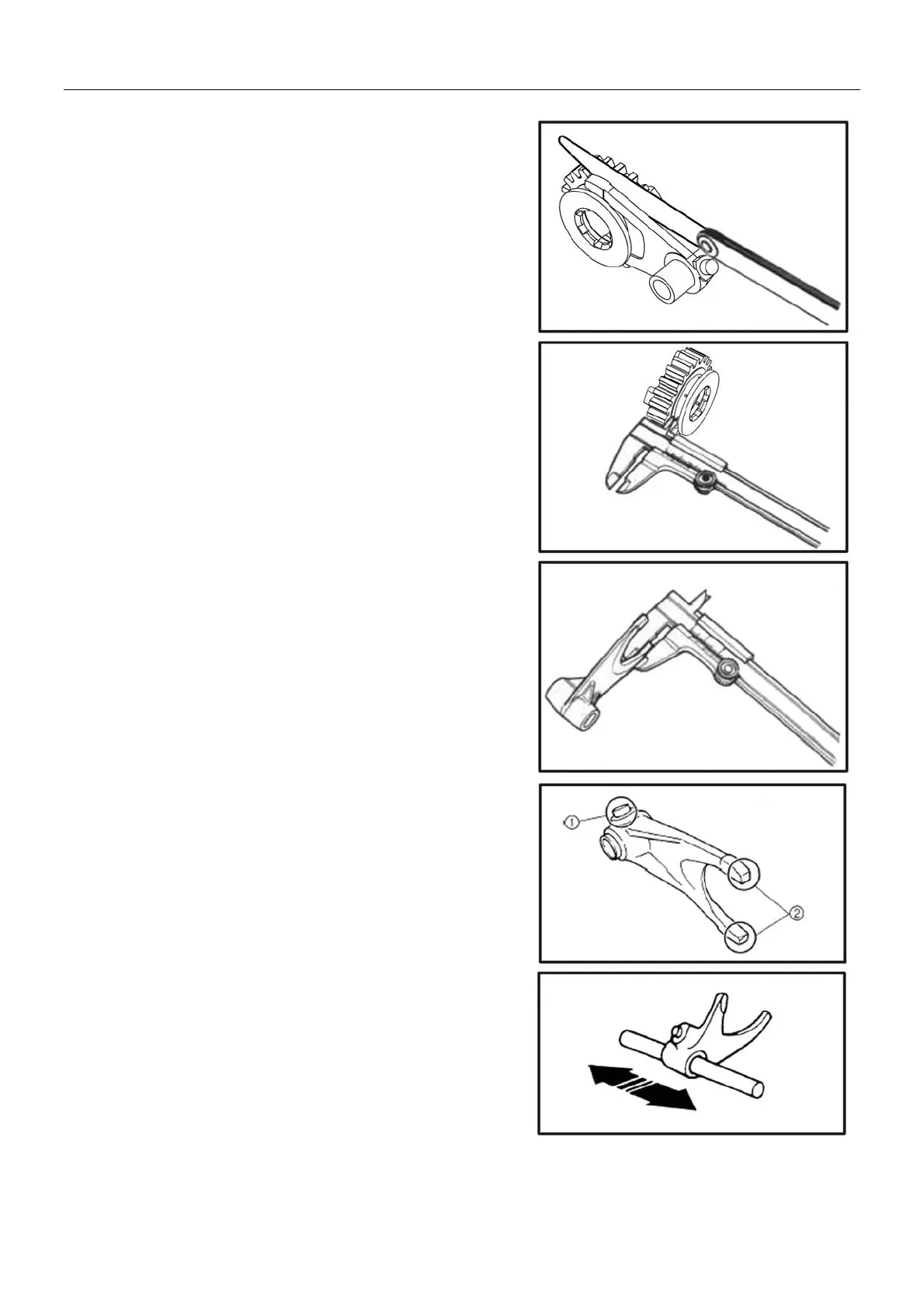

z Check the shift fork clearance with a thickness
gauge in the groove of its gear.
Clearance exceeds the limit: → Replace
Shift fork to Groove clearance
Standard clearance :0.10-0.30mm
Service Limit :0. 50mm
z Measure shift fork groove width with vernier caliper
Standard shift fork groove width: 6.05-6.15mm
z Measure shift fork thickness with vernier calipers;
Standard fork thickness: 5.08-5.90mm
z Check shift fork and for damage ①② or bend
Damage, bend: → Replace
z Install shift fork to guide bar and move left and right.
In case of any unsmooth moving, replace with a new
one.
