15. Engine Removal, Inspection & Installation

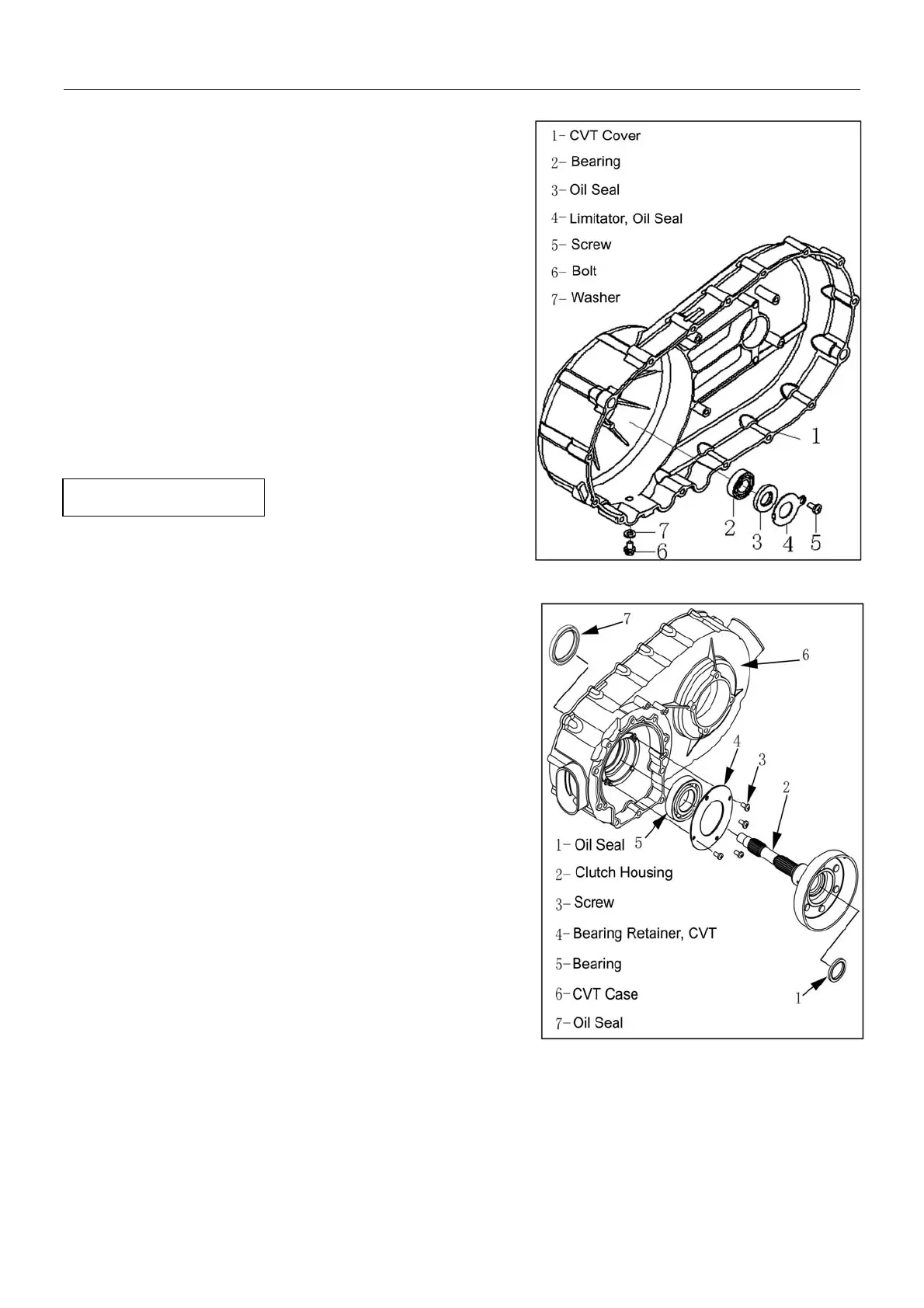

CVT Cover
z Remove screw 5, oil seal limitator 4. Remove oil
seal 3 with special tool;
z Check bearing 2 for free turning. In case of any
abnormal, remove with special tool and replace with
a new bearing;
z Apply lubrication oil to outer ring of bearing and
install bearing with special tool. Check bearing for
smooth turning.
z Apply grease to bearing inner side;
z Apply grease to oil seal lip and install oil seal with
special tool.
Note: Use a new oil seal.
z Install oil seal limitator and tighten screw after
applying thread locker.
Tool: Bearing Remover
Oil Seal Remover
Bearing Installer
CVT Case
z Check bearing 5 for smooth turning. In case of any
abnormal, remove screw 3 and bearing retainer 4
and replace with a new bearing.
z Check oil seal 7. In case of any damage, replace it;
z Apply grease to oil seal lip and install with special
tool.
z Apply lubrication oil to bearing 5 and install with
special tool; Check bearing for smooth turning. The
seal side of bearing 5 should face bearing retainer
4.
z Install bearing retainer 4 and screw 3.
z Install oil seal 1 into clutch housing 2 with special
tool.
Tool: Oil Seal Installer
Bearing Installer
15-51
