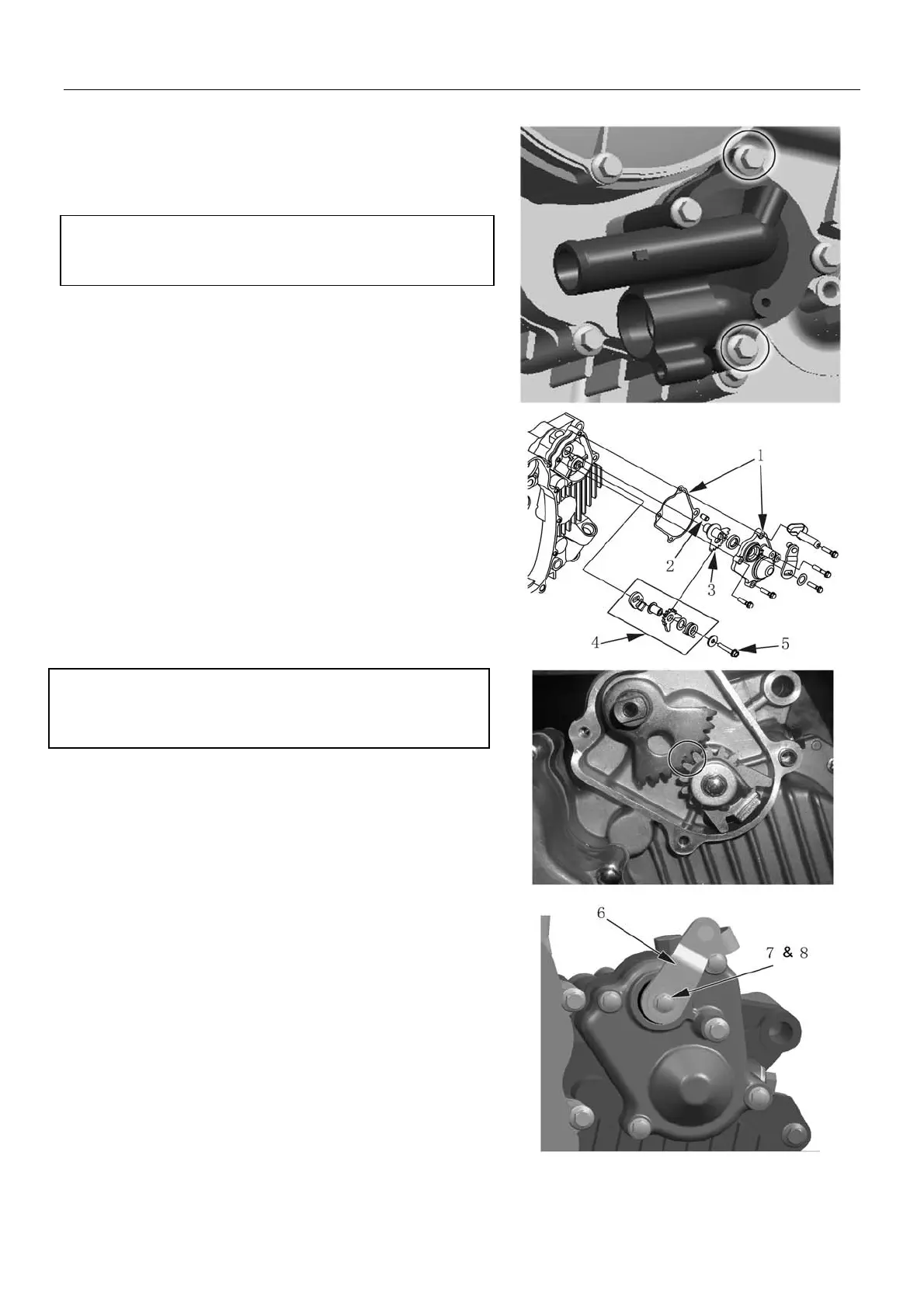

12. Engine Removal, Inspection and Installation
Water Pump
z Install water pump;
z Install water pump fixing bolts;
Note: Before tightening the bolts, be sure to insert oil
pump shaft into groove of water pump shaft.
Sector Gear
z Install the parts as illustrated on the right.
1- sector gear cover and gasket
2-dowel pin
3-drive sector gear
4-driven sector gear
5-driven sector gear bolt
Note: When the shift cam is in the neutral position, the
mark of drive sector gear should be between the two
marks of the driven sector gear.
Driven sector gear tightening torque: 14N.m
z Install gearshift rocker arm
z Install rocker arm bolt 7and washer 8
15-61
