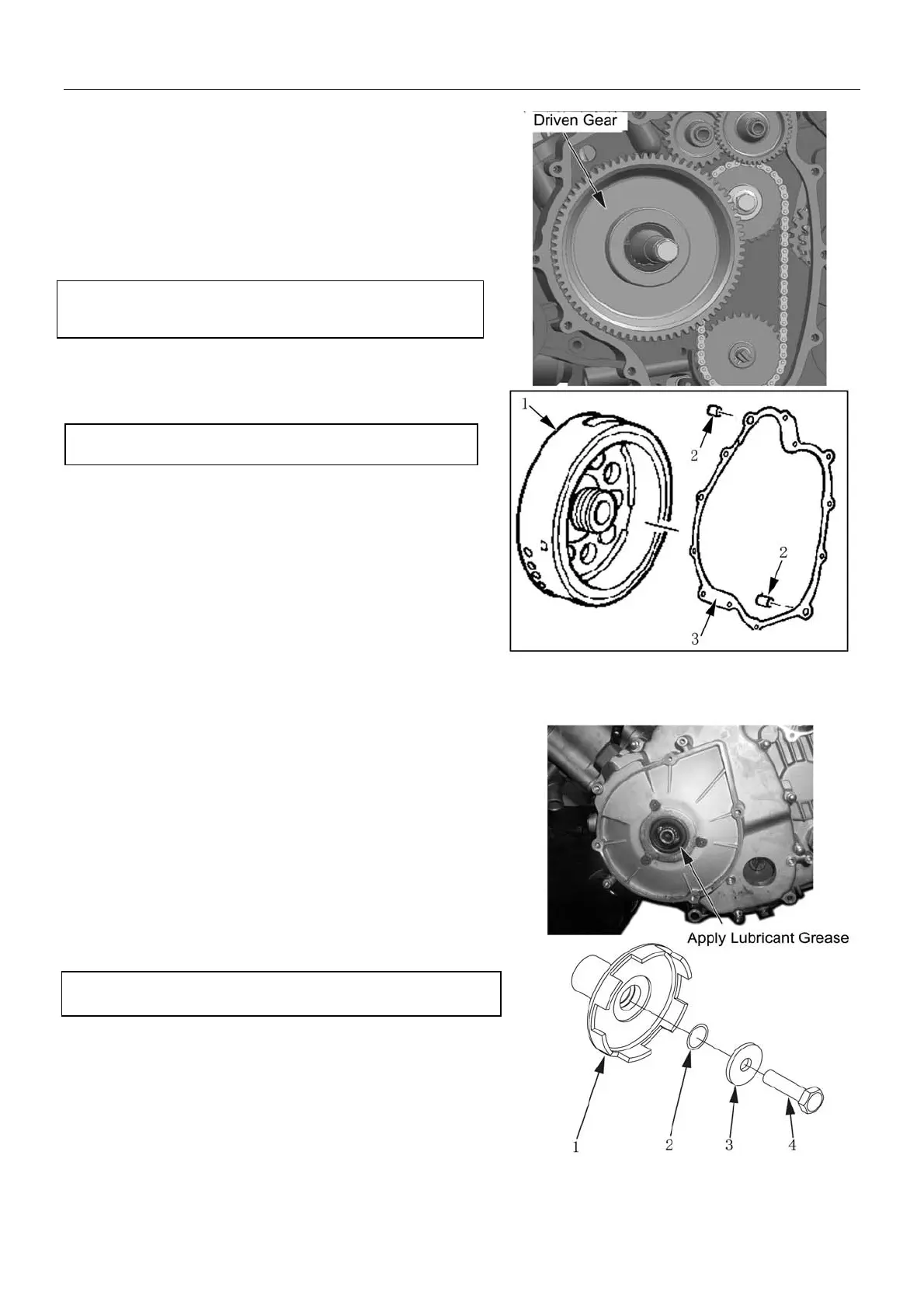

12. Engine Removal, Inspection and Installation
z Install starting driven gear;
Magneto Rotor
z Install woodruff key into crankshaft groove;
z Install magneto rotor 1;
Note: Degrease the tapered part of rotor and crankshaft.
Use nonflammable solvent to clean off the oily or greasy
matter and fully dry the surfaces.
Left Crankcase Cover
z Install dowel pin2 and gasket 3
Note: Use a new gasket
z Apply Lubricant grease to oil sea lip;
z Install left crankcase cover;
z Install bolts;
Recoil Starter
z Install recoil starter 1
z Install O-ring 2
Note: Use a new O-ring and apply lubricant grease to
the O-ring
z Install washer 3 and bolt 4, tighten to the specified
torque:
Recoil starter bolt tightening torque: 55N.m
15-60
