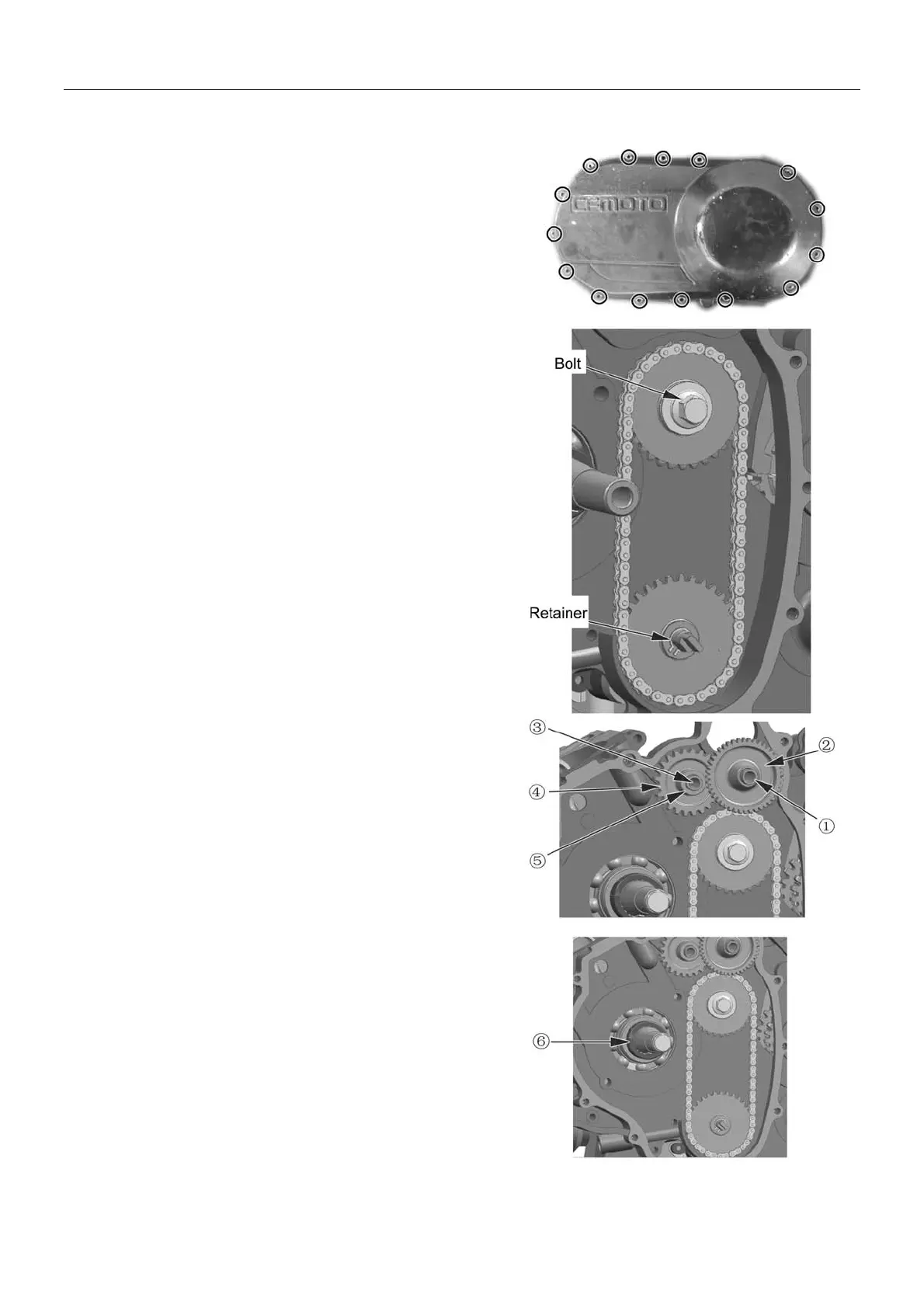

12. Engine Removal, Inspection and Installation
z Install CVT case cover bolts and tighten diagonally
in several steps.
Engine Left
Oil Pump Sprocket and Chain
z Install oil pump drive sprocket;
z Install oil pump driven sprocket;
z Install oil pump drive chain;
z Install oil pump sprocket bolt;
z Install sprocket retainer with a long nose pliers
Tool: Long Nose Pliers
Dual Gear, Idle Gear
z Install dual gear shaft and ① dual gear ②
z Install dual gear③, dual gear ④and bush⑤
Starting Driven Gear
z Install starting driven gear ⑥
15-59
