12. Engine Removal, Inspection and Installation

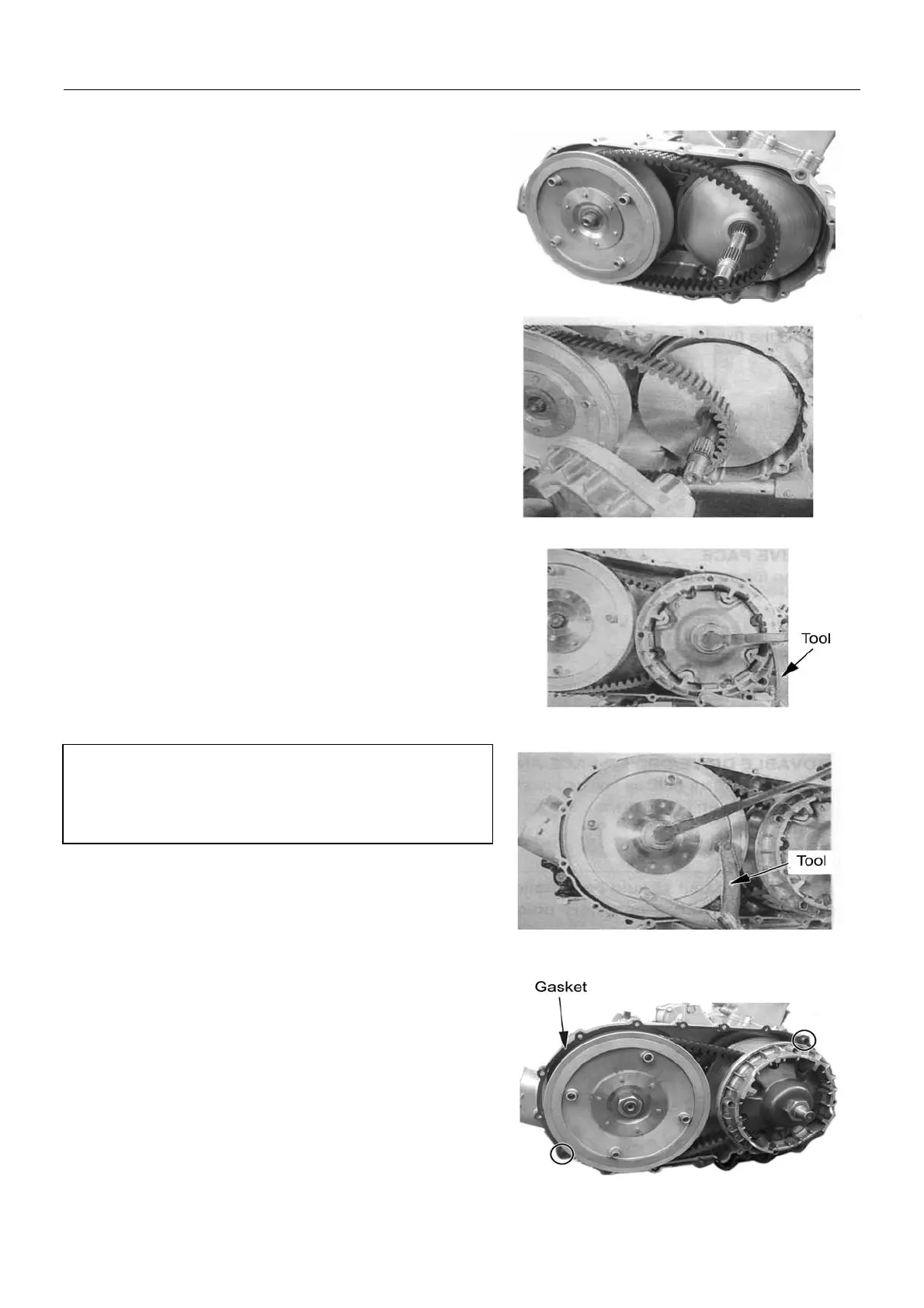

z Install secondary sheave;
z Install primary sliding sheave
z Tighten primary sheave nut with special tool to the
specified torque;
Primary sheave nut tightening torque: 115 N·m
Tool: Rotor Holder
z Tighten secondary sheave nut with special tool to
the specified torque;
Secondary sheave tightening torque: 115 N·m
Tool: Rotor Holder
Note:
Turn the primary fixed sheave until the belt is seated in
and both primary and secondary sheaves move together
smoothly without slip.
CVT Case Cover
z Install the new gasket and dowel pins.
15-58
