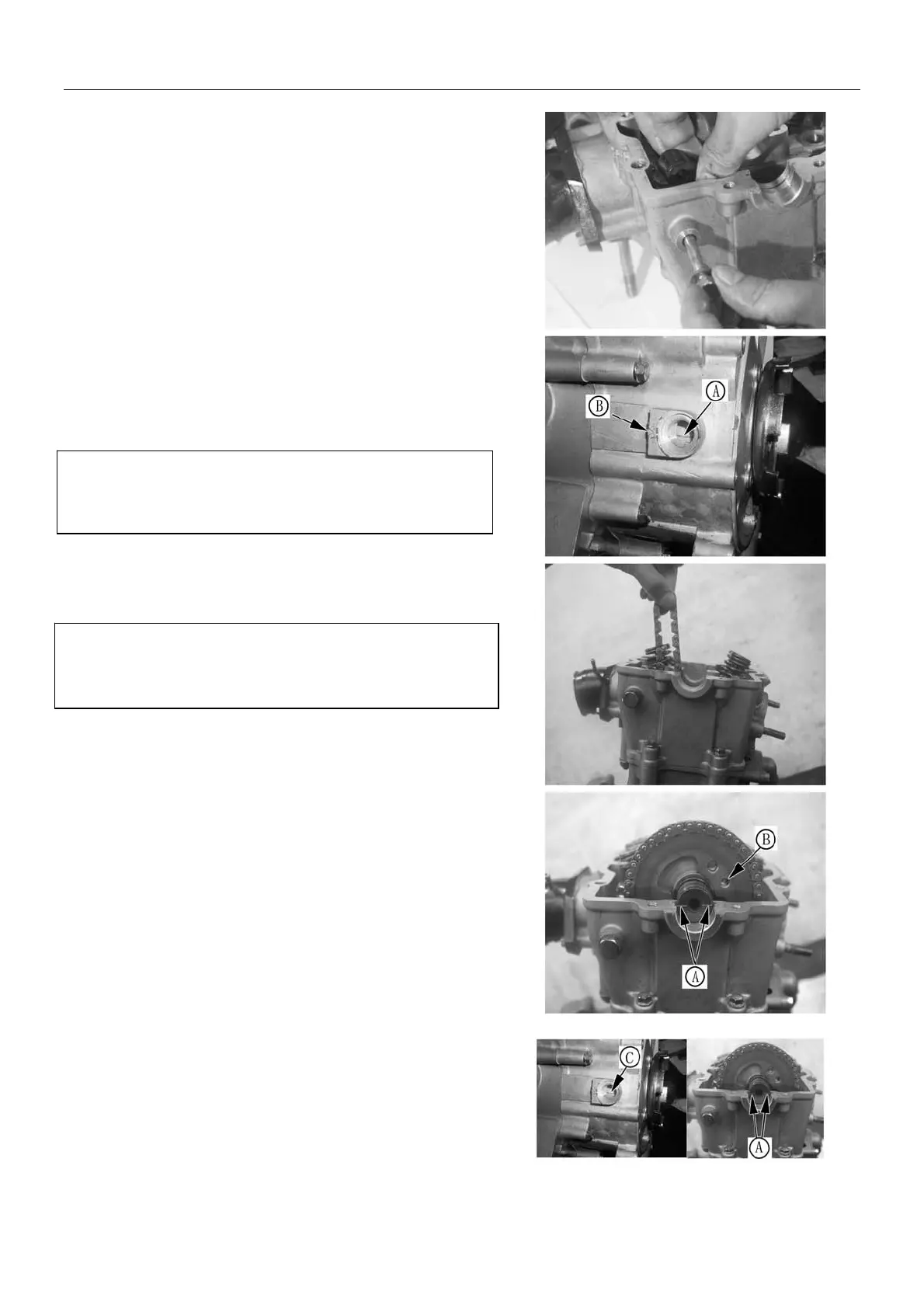

12. Engine Removal, Inspection and Installation
z Install chain tensioner;
Camshaft
z Align mark “A” on magneto rotor with mark “B” on
crankcase;
Note: while rotating crankshaft, pull the cam chain
upward, or the chain will be caught between
sprocket and crankcase.
z Align the mark “A” on the camshaft so that they are
parallel with the mating surface of the cylinder head.
Note: Do not rotate the magneto rotor while doing this.
when the sprocket is not positioned correctly, turn
the sprocket;
z Engage the chain on the sprocket with the locating
pin “B” as illustrated on the right;
z Recheck if the position of mark “A” and “C” is correct.
If not, reassemble until it is correct.
15-65
