12. Engine Removal, Inspection and Installation

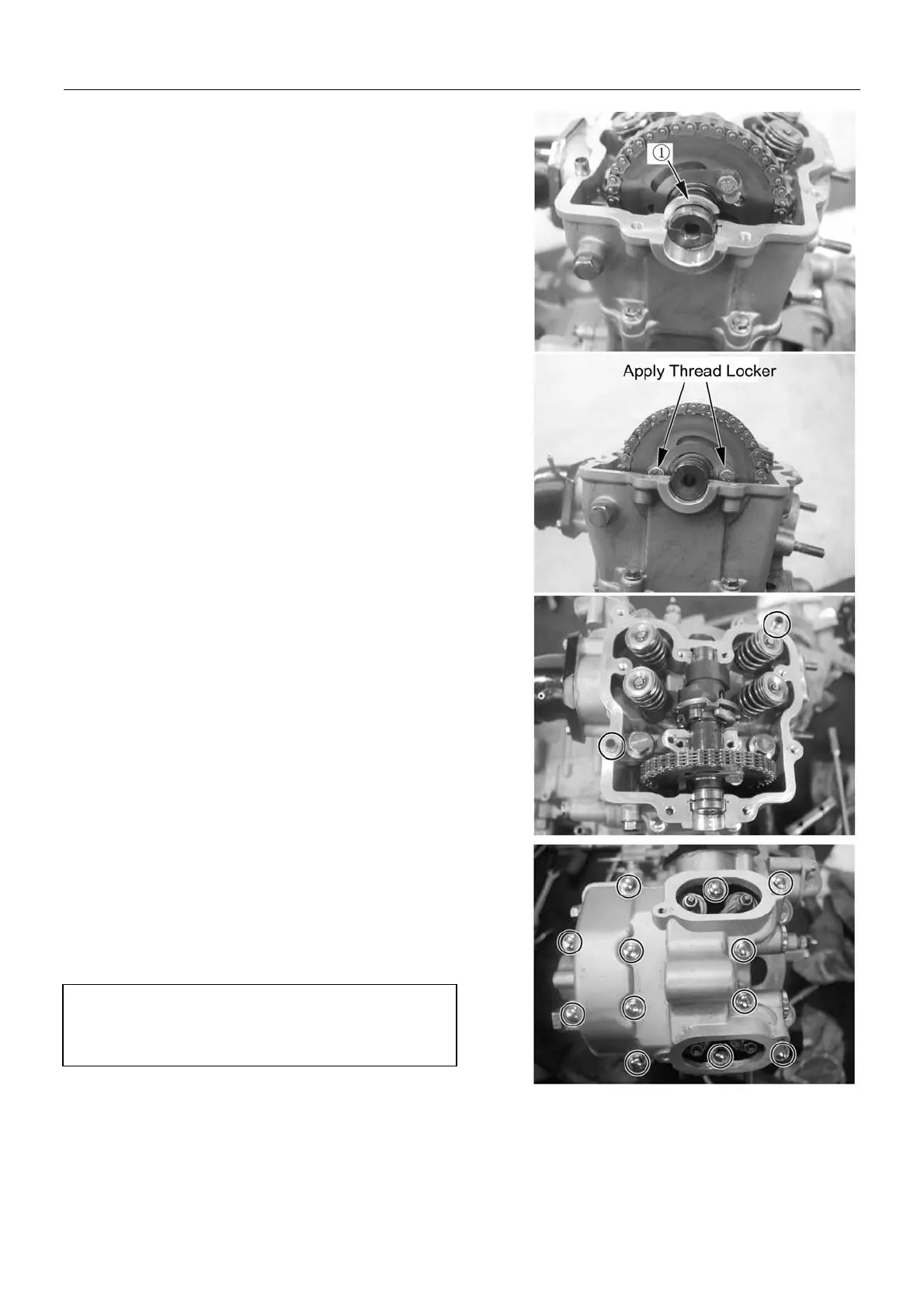

z Install crankshaft C-ring ①
z Install lock washer so that it covers the locating pin;
z Apply thread locker to the bolts before installing, and
tighten them to the specified torque;
Sprocket bolt tightening torque: 15 N·m
z Bend up the lock washer to lock the bolts.
Cylinder Head Cover
z Clean the mating surface of cylinder head and
cylinder head cover;
z Install dowel pin to the cylinder head
z Apply sealant to the mating surface of the cylinder
head cover;
z Install cylinder head cover bolts, tighten diagonally
to the specified torque.
Cylinder head cover bolt tightening torque: 10 N·m
Note: When tightening the cylinder head cover bolts,
the piston must be at top dead center on the
compression stroke.
15-66
