12. Engine Removal, Inspection and Installation

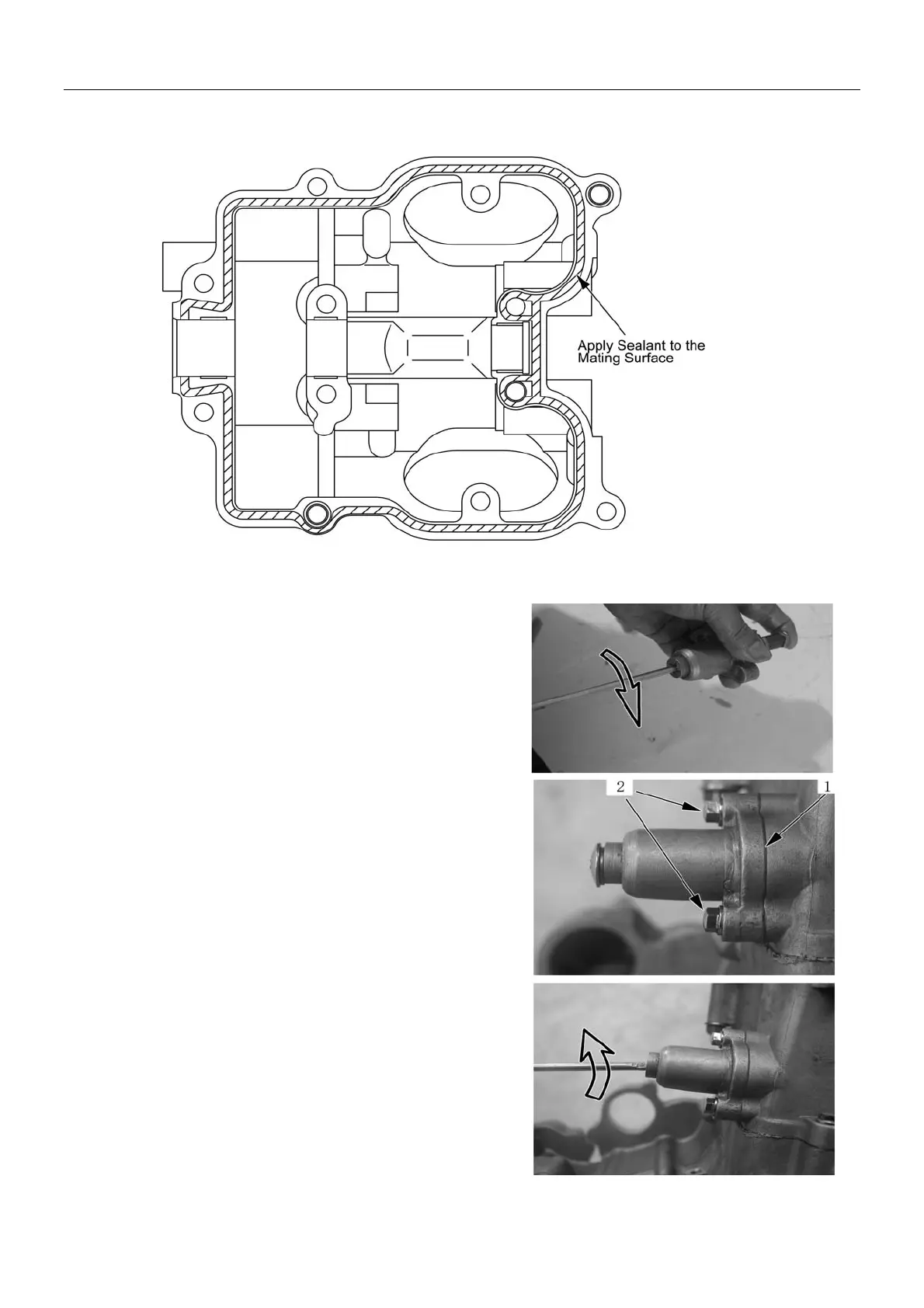

Gasket Sealant Applying Place
Chain Tensioner
z Insert (--) screwdriver into slotted end of chain
tension adjuster, turn it clockwise to lock the
tensioner spring;
z Install the chain tensioner and the new washer 1;
z Install the bolt 2, tighten it to the specified torque;
Chain tensioner bolt tightening torque: 10 N·m
z After chain tensioner is installed, turn the (--)
screwdriver counter clockwise. The tensioner rod
will be advanced under spring force and push
tensioner against chain.
15-67
