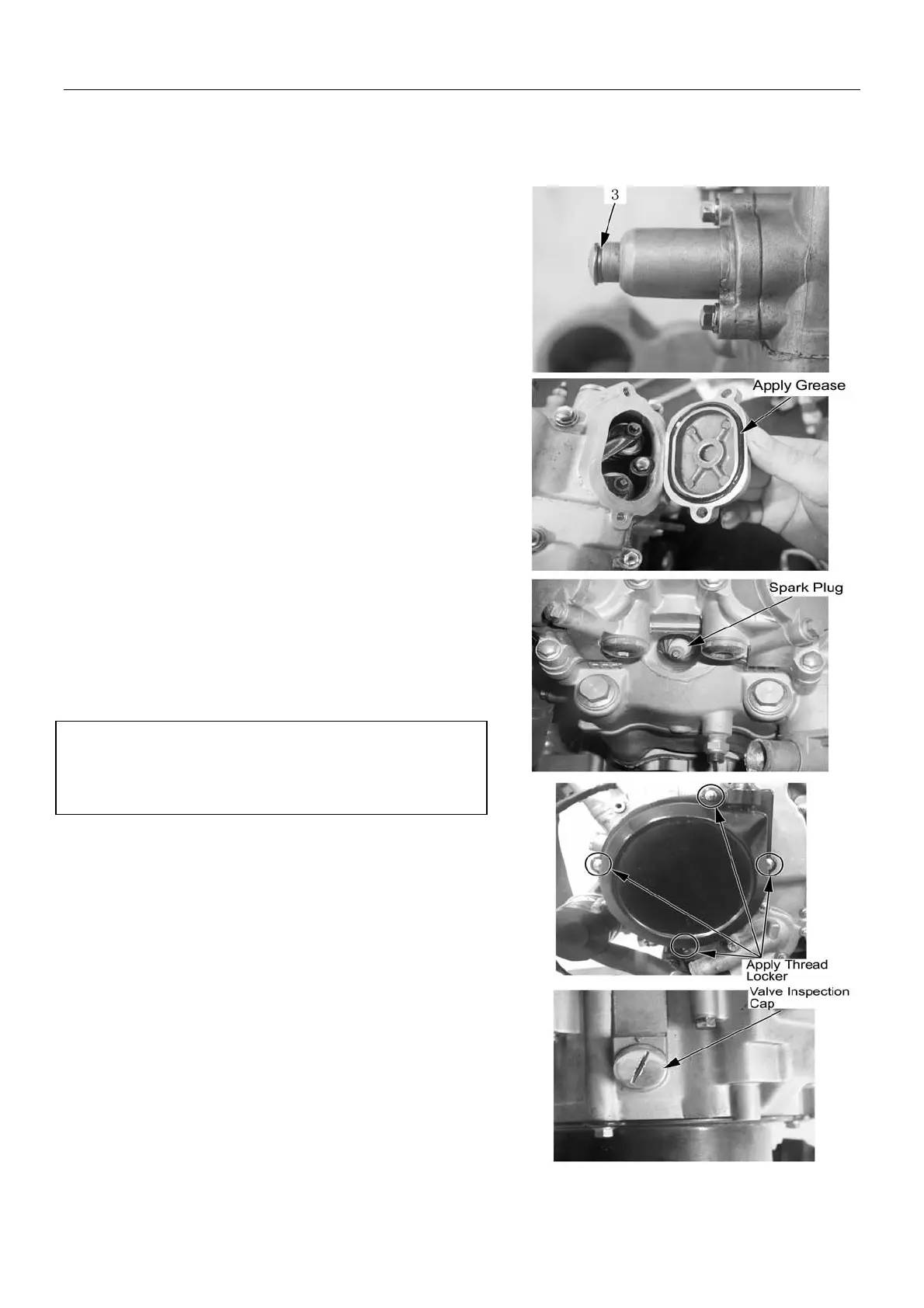

12. Engine Removal, Inspection and Installation
z Install the new gasket 3;
z Install chain tensioner screw, tighten it to the
specifiedTorque
Chain tensioner screw tightening torque: 8 N·m
Valve Adjuster Cover
z Refer to 11-3 for valve clearance;
z Use new rubber gasket and apply grease;
z Install Valve Inspection Cap
z Install valve inspection cap bolt;
Spark Plug
z Install spark plug with special tool and tighten to the
specified torque;
Note: To avoid damage to the cylinder head thread,
screw in the spark plug with hand first, then
tighten it to the specified torque with spark plug
wrench.
Spark plug tightening torque: 18N.m
Tool: Spark Plug Wrench
Engine Periphery
z Recoil Starter
z Install recoil starter
z Apply thread locker to the bolts and then tighten;
Valve Inspection Cap
z Install valve inspection cap
15-68
