16. Carburetor
1. Carburetor Removal

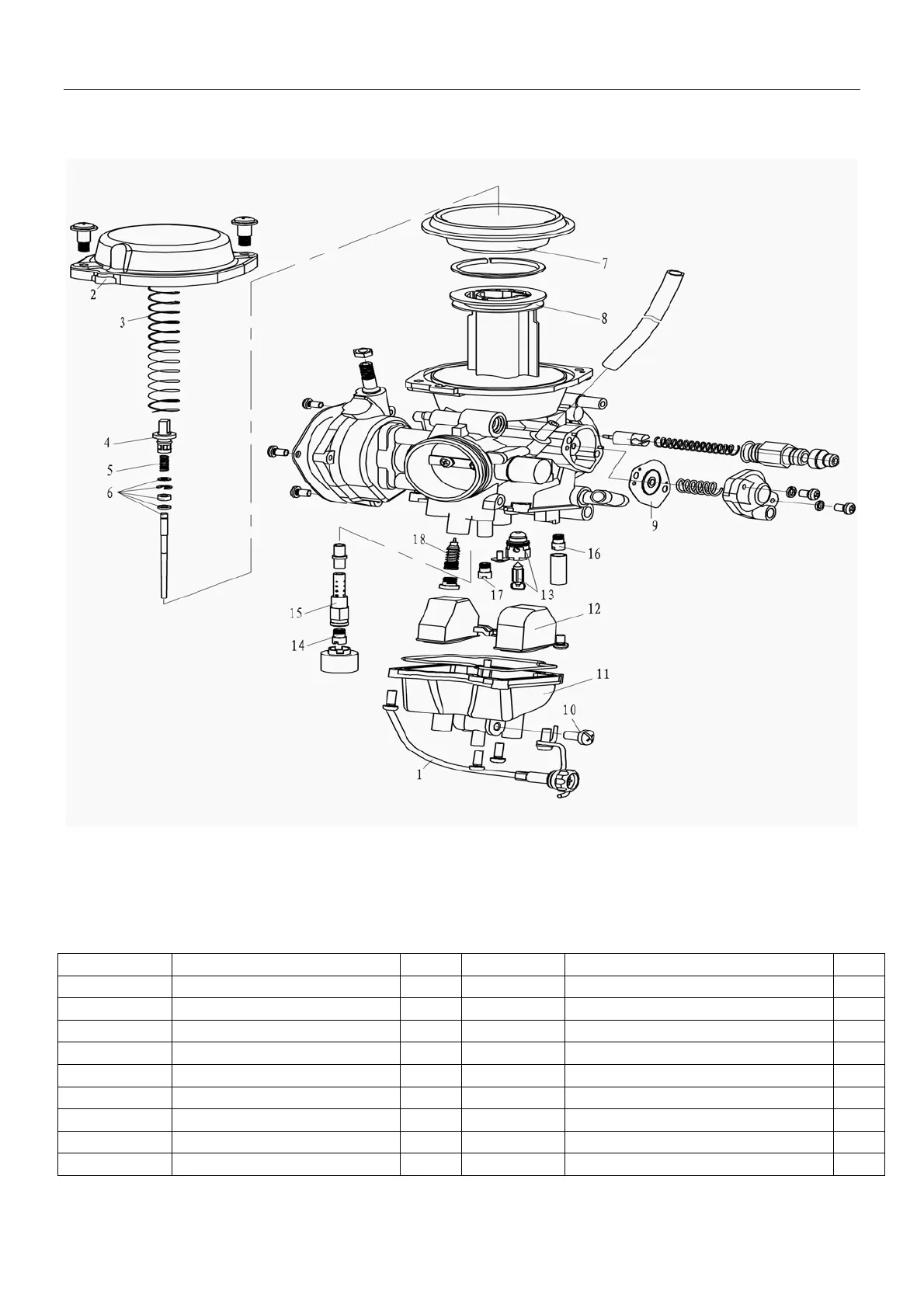

Disassemble the carburetor in the following serial number:
Serial No. Description Qty. Serial No. Description Qty.
1 Idle Adjust Shaft 1 10 Drain Screw 1
2 Vacuum Chamber Cover 1 11 Float Chamber 1
3 Spring 1 12 Float 1
4 Jet Needle Holder 1 13 Needle Valve Set 1
5 Spring 1 14 Main Jet (MJ) 1
6 Jet Needle Set 1 15 Needle Jet (NJ) 1
7 Vacuum Diaphragm 1 16 Pilot Jet (PJ) 1
8 Piston Valve 1 17 Starter Jet (GS) 1
9 Enriching Diaphragm 1 18 Pilot Air Jet (PAJ) 1
16-2
