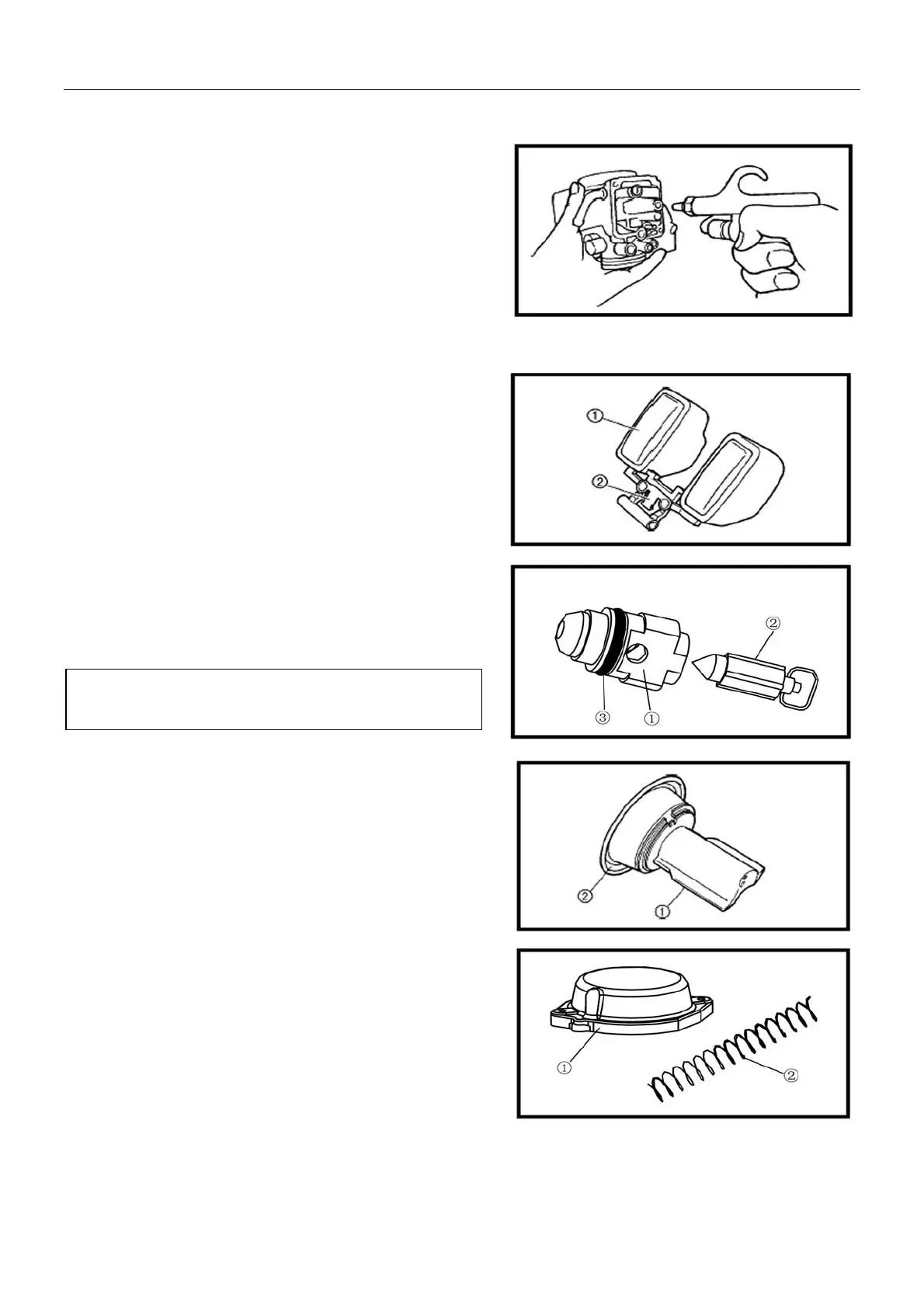

16. Carburetor
2. Inspection
z Check carburetor body for cracks or damage.
Cracks or damage:→ Replace
z Check carburetor float chamber, fuel passage for
dirt or clog. Clean these parts.
z Check float①, float tang ② for damage.
Damage: → Replace
z Check valve seat①, needle valve②, O-ring③ for
damage, abnormal wear or dirt.
Damage or wear or dirty: → Replace
Note: Valve set①, needle valve② should be replaced as
a set.
z Check piston valve① for scratches, abnormal wear
or damage.
Scratches, wear or damage: → Replace
z Check diaphragm② for tears.
Tears: → Replace
z Check vacuum chamber cover①, spring② for
damage or cracks.
Damage or cracks: → Replace
