CFMoto CF500 - Side Panel and Footrest Board Removal

2. Vehicle Body, Muffler

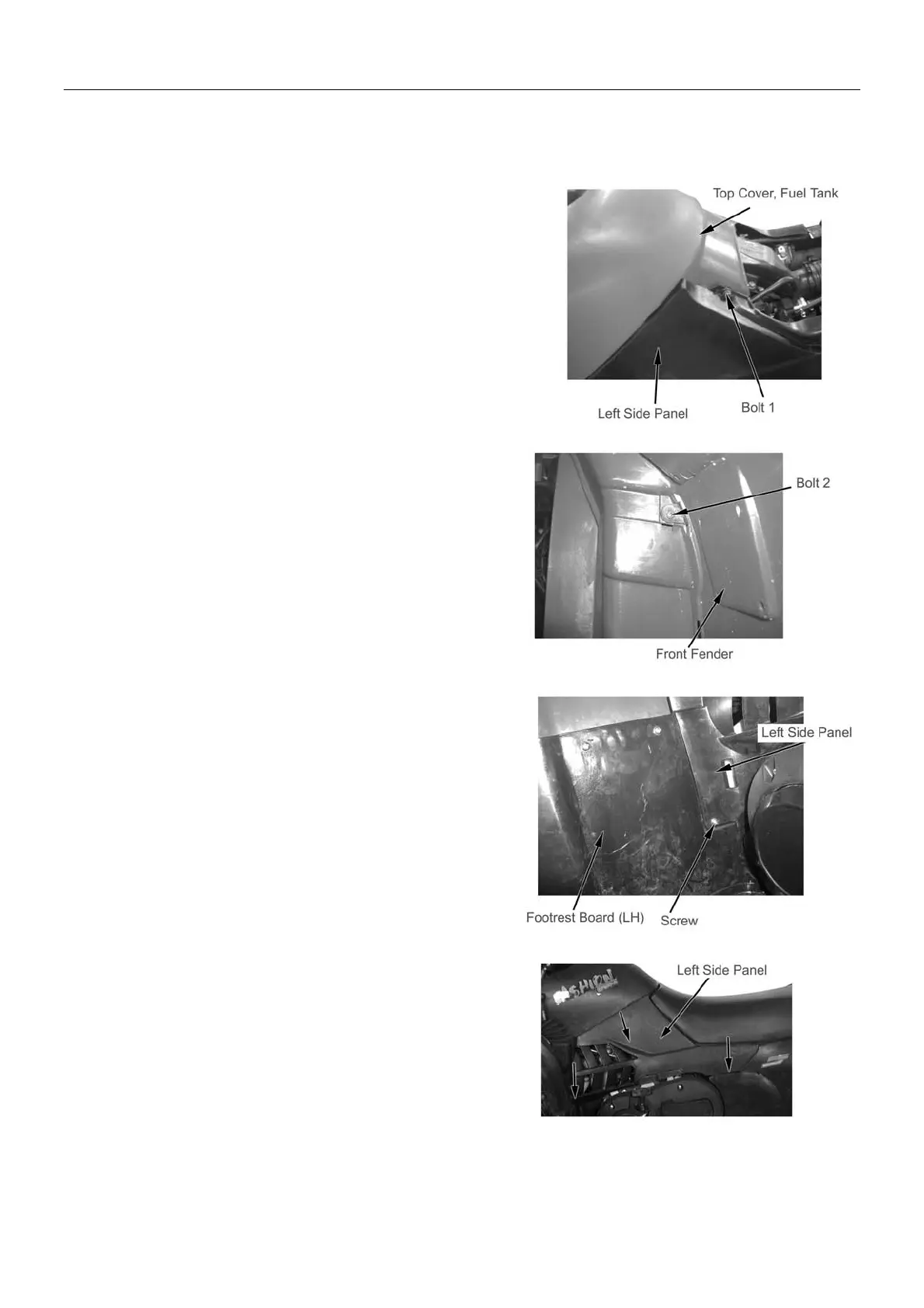

Left Side Panel
Remove
--Seat (→2-3)
Remove Bolt 1 for left side panel and fuel tank top cover
Remove Bolt 2 for left side panel and front fender
Remove screw for left side panel and footrest board
Remove left side panel in the direction as illustrated on the
right
Installation:
Reverse the removal procedure of installation.
2-6
