2. Vehicle Body, Muffler

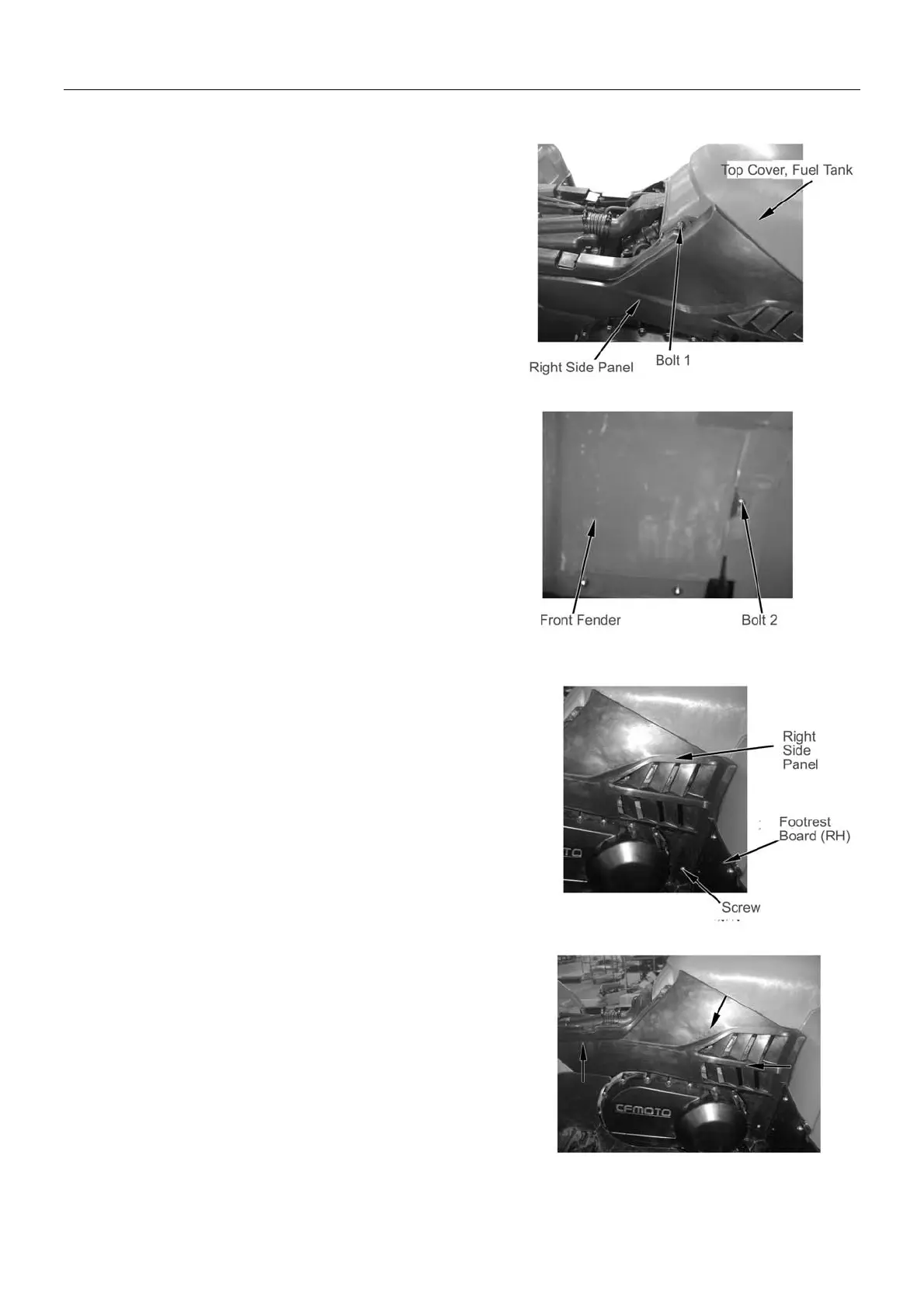

Right Side Panel
Remove:
--Seat (→2-3)
Remove Bolt 1 for right side panel and fuel tank top cover
Remove Bolt 2 for right side panel and front fender
Remove screw for right side panel and right footrest board
Remove right side panel in the direction as illustrated on
the right
Installation:
Reverse the removal procedure of installation.
2-7
