2. Vehicle Body, Muffler

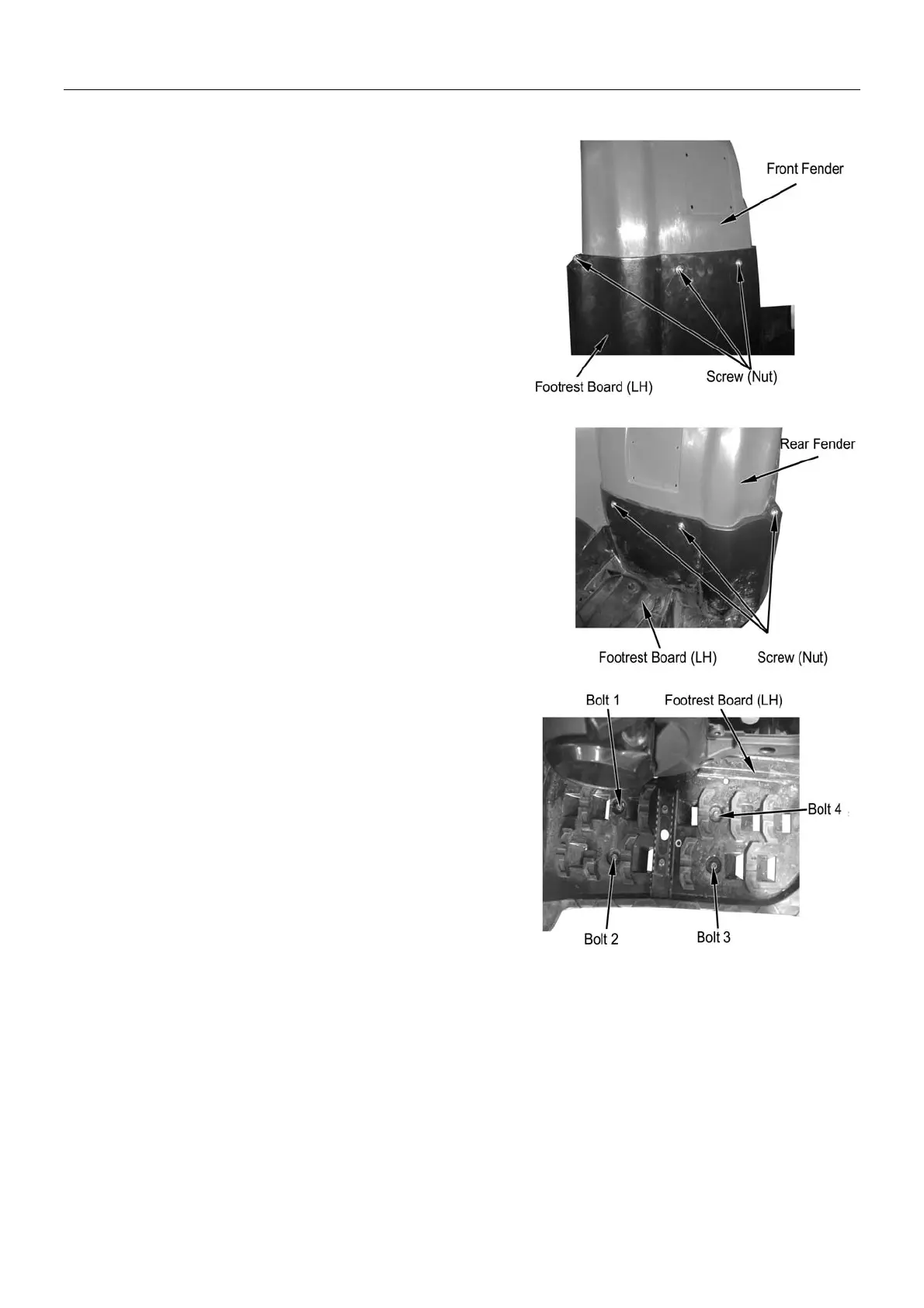

Left Footrest Board
Remove:
--Left Side panel (→2-6)
--3 screws & nuts for front fender
--3 screws & nuts for rear fender
--Bolt 1
--Bolt 2
--Bolt 3
--Bolt 4
--Left footrest board
Installation:
Reverse the removal procedure for installation.
Right Footrest Board
Refer to Left Footrest Board for removal and installation
2-9
