2. Vehicle Body, Muffler

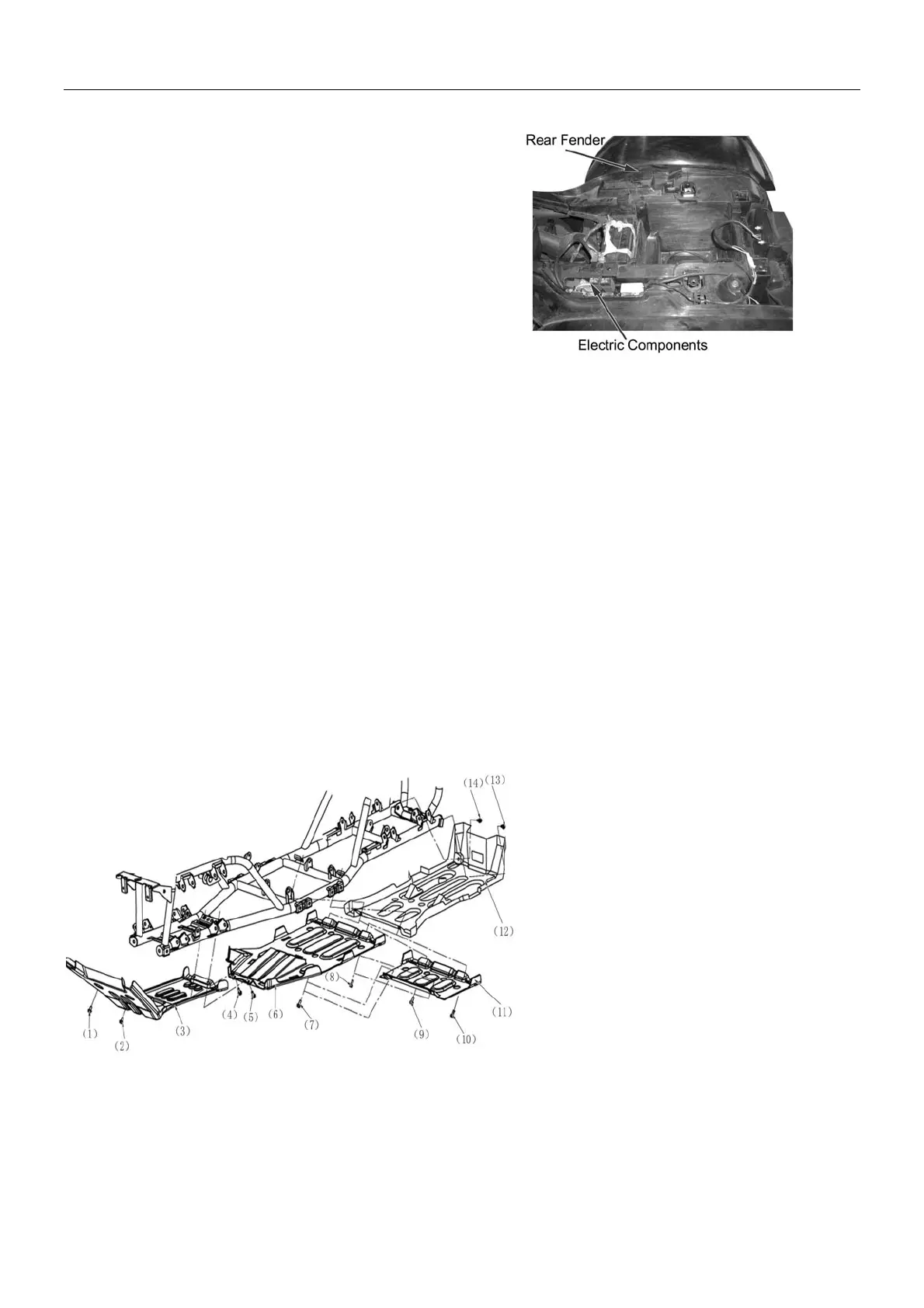

Rear Fender
Remove:
--Seat (→2-3)
--Rear rack(→2-3)
--Rear top cover (→2-5)
--Left & right side panel (→2-6) (→2-7)
--Battery fixing plate, battery cover (→8-4)
Remove battery
Remove electrical components from rear fender
(Chapter 8)
Disconnect wiring connectors from rear fender
(Chapter 8)
Lift upward and remove rear fender
Engine Skid Plate(Front), Engine Skid Plate (Center),
Double Seat Protection Plate, & Engine Skid Plate
( Rear)
(1) Bolt 1
(2) Bolt 2
(3) Engine Skid Plate( Front)
(4) Bolt 3
(5) Bolt 4
(6) Engine Skid Plate (Center)
(7) Bolt 5
(8) Bolt 6
(9) Bolt 7
(10) Bolt8
(11) Double Seat Protection Plate
(12) Engine Skid Plate (Rear)
(13, 14) Bolt 9
(15) Bolt 10
2-10
