2. Vehicle Body, Muffler

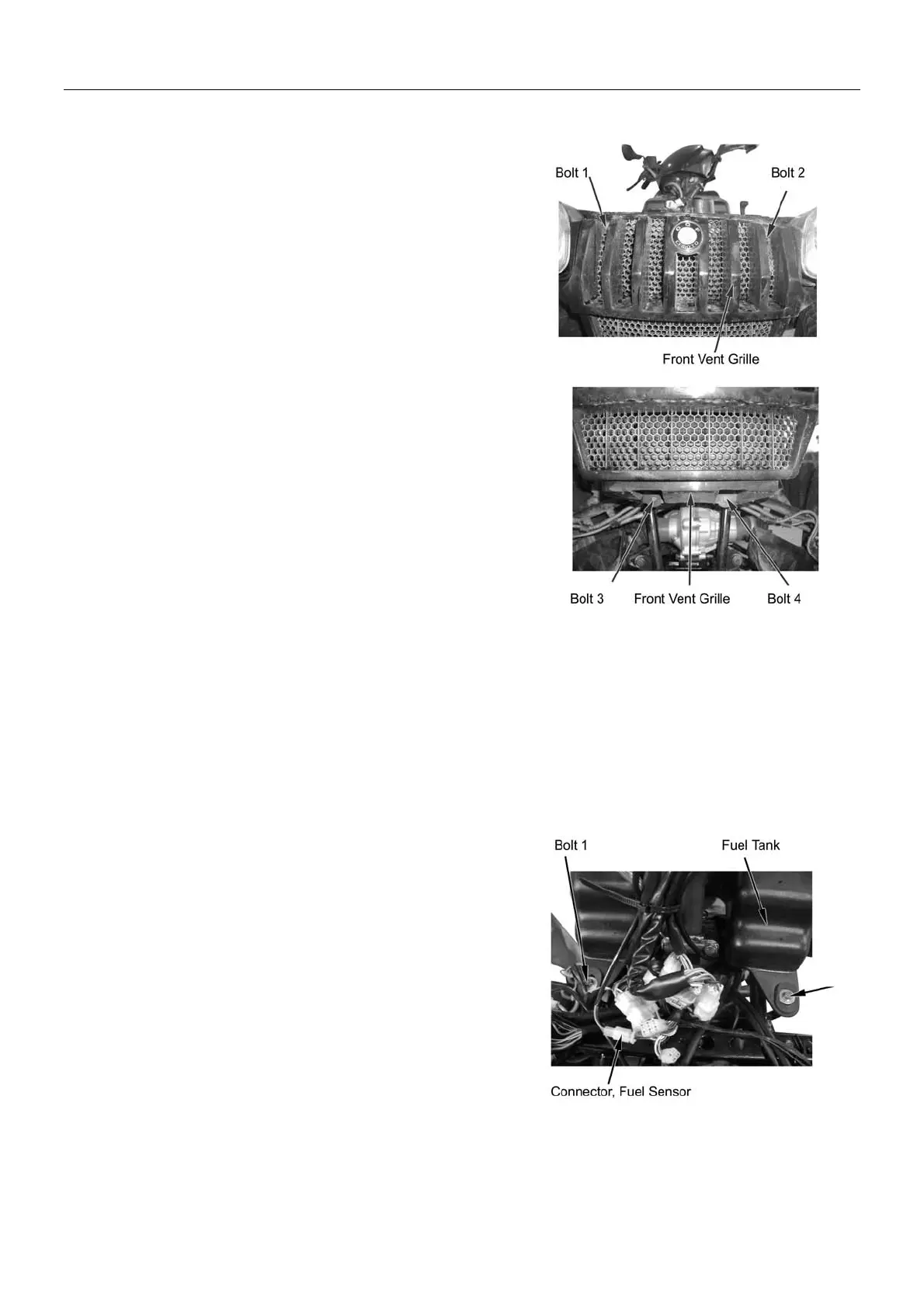

Front Vent Grille
Remove:
--Front fender (→2-8)
--Bumper (→2-13)
--Bolt 1, Bolt 2, Bolt 3, Bolt 4
--Front vent grille
Note: For removal of front vent grille only,
Just remove 2 fixing bolts
of bumper and 2 center fixing bolts,
then pull bumper down
Installation:
Reverse the removal procedure for installation
Fuel Tank
Warning: Gasoline is highly flammable, therefore
smoke and fire are strictly forbidden in the work place.
Special attention should also be paid to sparks.
Gasoline may also be explosive when it is vaporized,
so operation should be done in a well-ventilated place.
Remove:
--Left and right side panel (→2-6)
--Front fender (→2-8)
--Fuel tank top cover (→2-8)
--Bolt 1, Bolt 2
Disconnect 3P connectors of fuel sensor
2-15
