2. Vehicle Body, Muffler

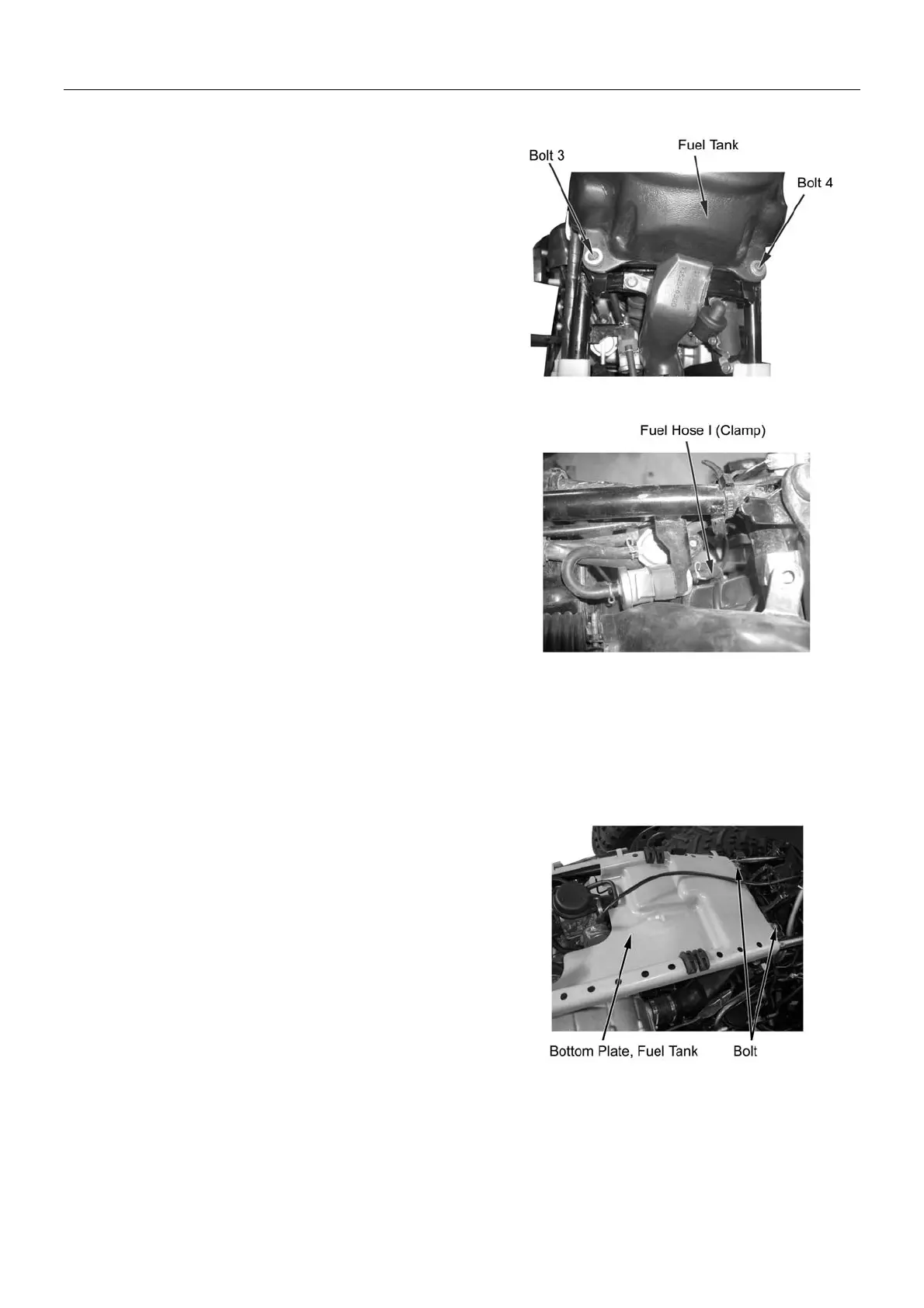

Remove Bolt 3, Bolt 4
Remove:
--Fuel hose I and Clamp
--Fuel tank
Installation:
Reverse the removal procedure for installation.
Note:
Be careful not to damage main cable,
pipes and hoses. Main cable, cables,
pipes and hoses should be routed properly
according to the routing drawing.
Take precaution against fuel leakage
when removing fuel Fuel Hose I
Fuel Tank Bottom Plate,
Remove:
--Fuel tank (→2-15)
--Bolt 1
--Bolt 2
--Fuel tank top cover
Installation:
Reverse the removal procedure for installation.
Note:
Be careful not to damage main cable, pipes and hoses.
Main cable, cables, pipes should be routed properly
according to the routing drawing
