2. Vehicle Body, Muffler
Muffler
Caution: Perform disassembly only
after the muffler is cooled down.
Remove:
--Seat (2-3)
--Right side panel (2-7)

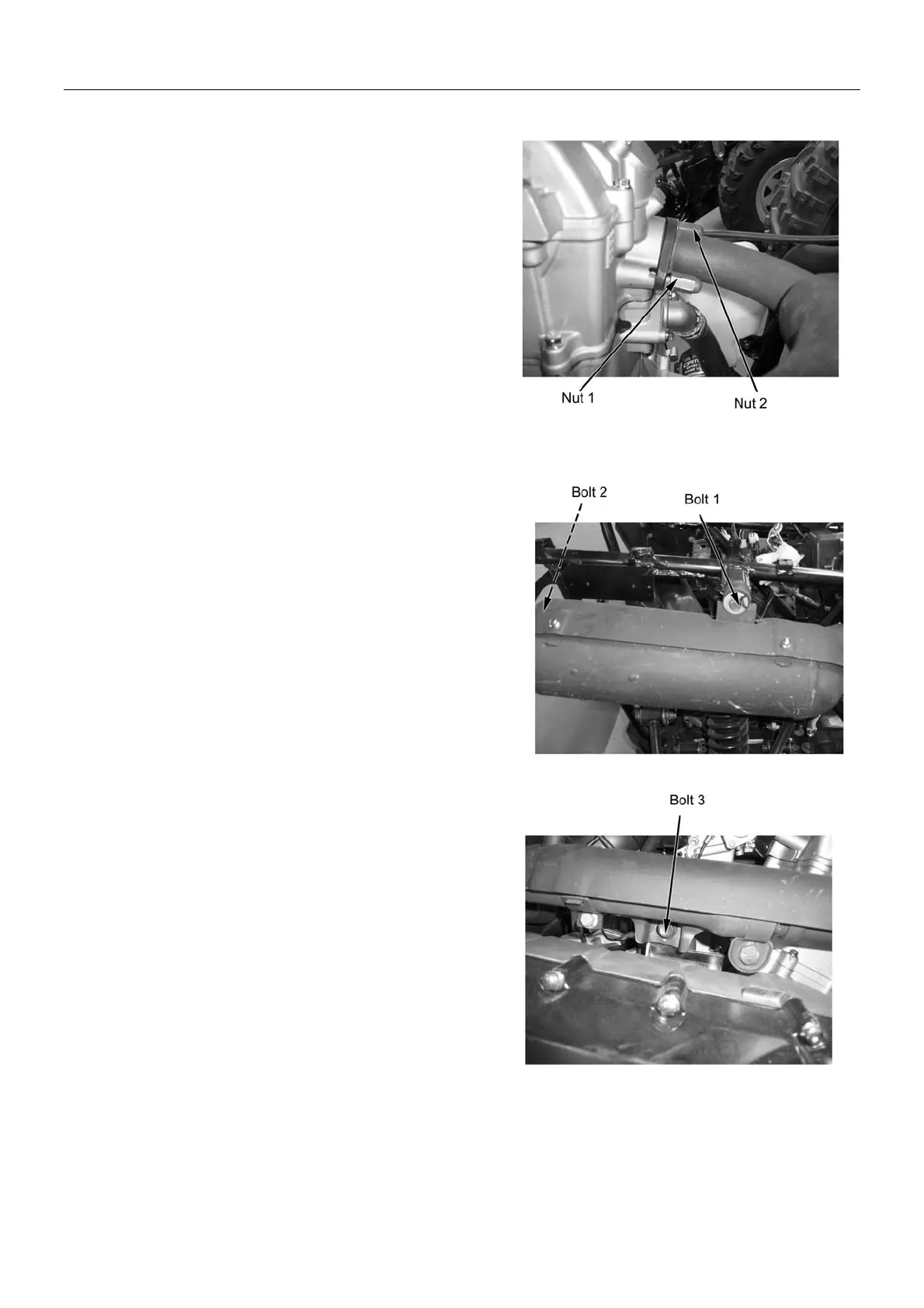

--Nut1, Nut 2 for exhaust pipe elbow
Remove Bolt 1
Remove Bolt 2, Bolt 3
Remove muffler
Installation:
Reverse the removal procedure for installation.
Note:
Replace sealing gasket when installing the muffler.
2-17
