3. Checks & Adjustment

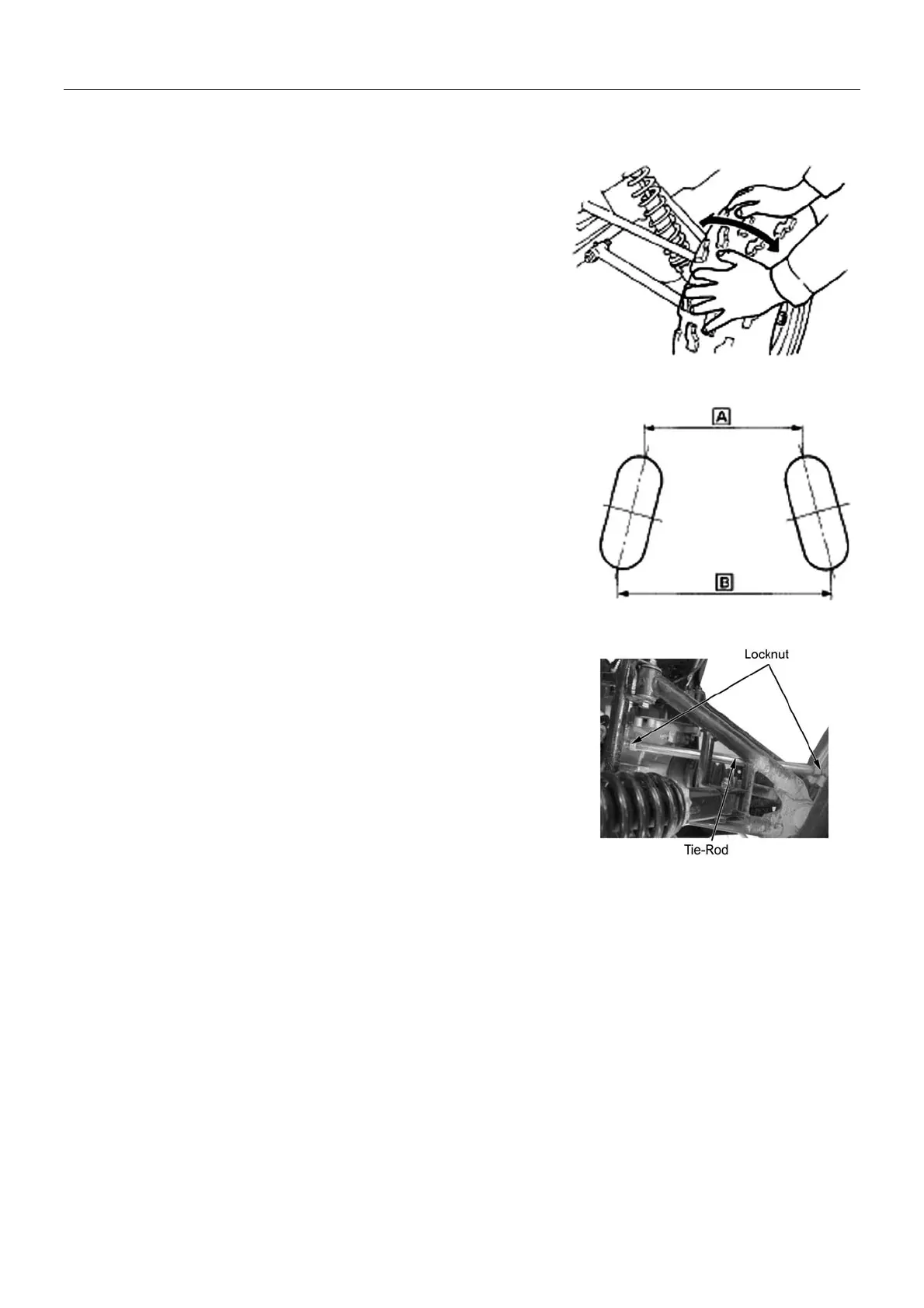

Wheels
Lift front wheel on level place, and make sure there is no loading
on the wheels.
Shake the front wheel left and right to check whether the joint of
front wheel is tightened and check whether it sways.
Not tighten enough: →Tighten it
Sway: →Replace the rocker arm
Front Toe-in size
Park the vehicle on level place, measure the front toe-in
Toe-in: B-A=0-10mm
Toe-in out of the range: → Adjust the locknut of tie-rod
Note:
After the toe-in has been adjusted, slowly run the vehicle to
check whether the direction of vehicle can be controlled by
handlebar.
3-7
