CFMoto CF500 - Front Wheel and Hub Service

6. Front Wheel, Front Brake, Suspension, Steering

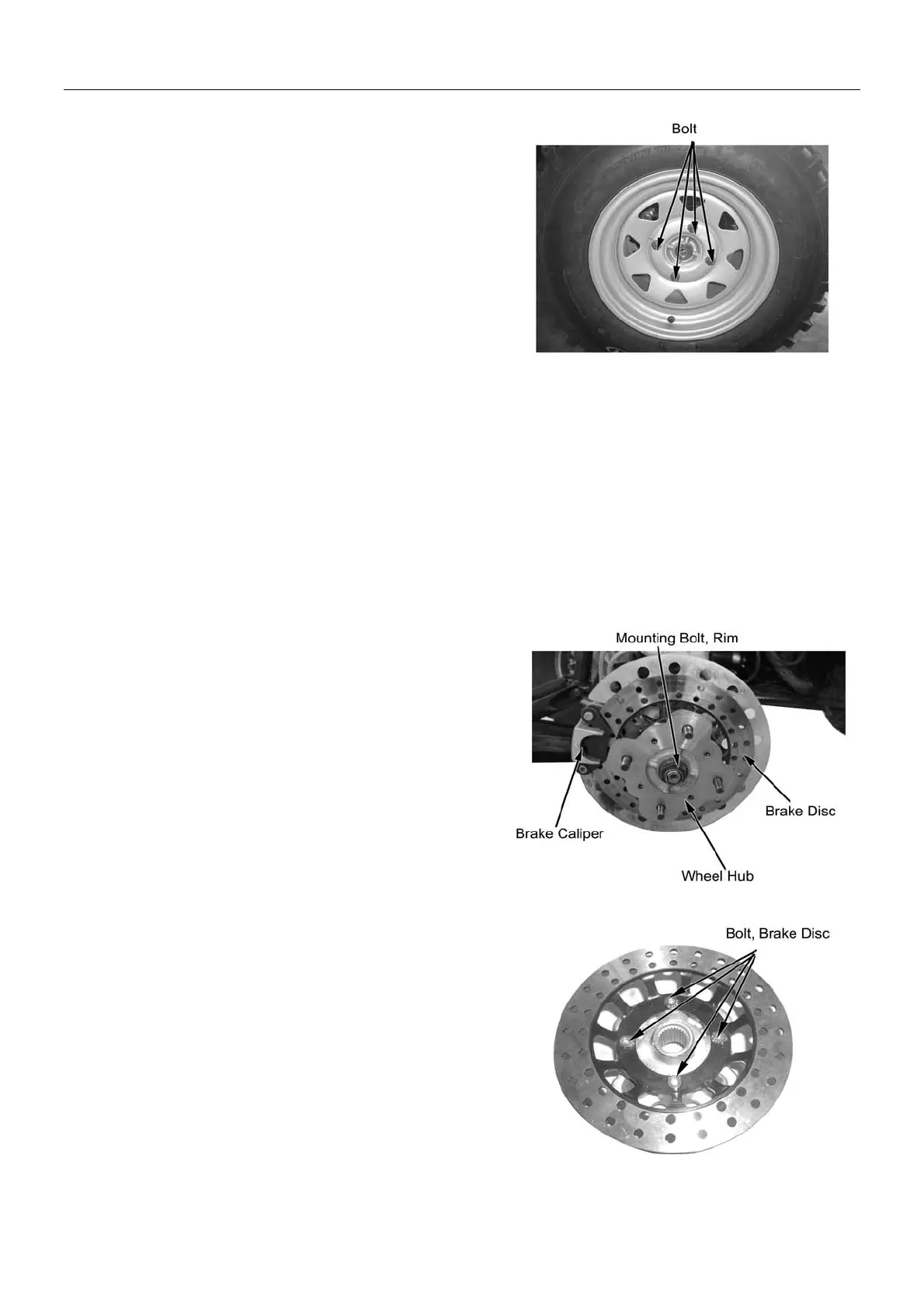

Front wheel
Removal
Securely support the front wheels
Remove:
-- Wheel cap.
--4 bolt from wheel hub
--Front wheel.
Inspection
Rim
Damage, warpage or serious scrapes:→ Replace
Replace with a new one, if any.
Slowly turn the wheel, measure the rim vibration
with a dial gauge.
Service limit: Axial: 2.0mm
Radial: 2.0mm
Assembling:
Press rim into wheel.
Install rim on the wheel hub.
Tightening Torque:
Bolt, Wheel hub: 50-60 N.m
Front Wheel Hub
Disassembly
Remove:
--Front wheel(→6-3)
--Front brake caliper(→6-4)
--Rim axle nut
--Brake disc and wheel hub
--4 bolts of front brake disc
--Wheel hub
Installation
Reverse the removal procedure for installation
Torque, Rim axle nut: 110-130N.m
6-3
