6. Front Wheel, Front Brake, Suspension, Steering
Disassembly

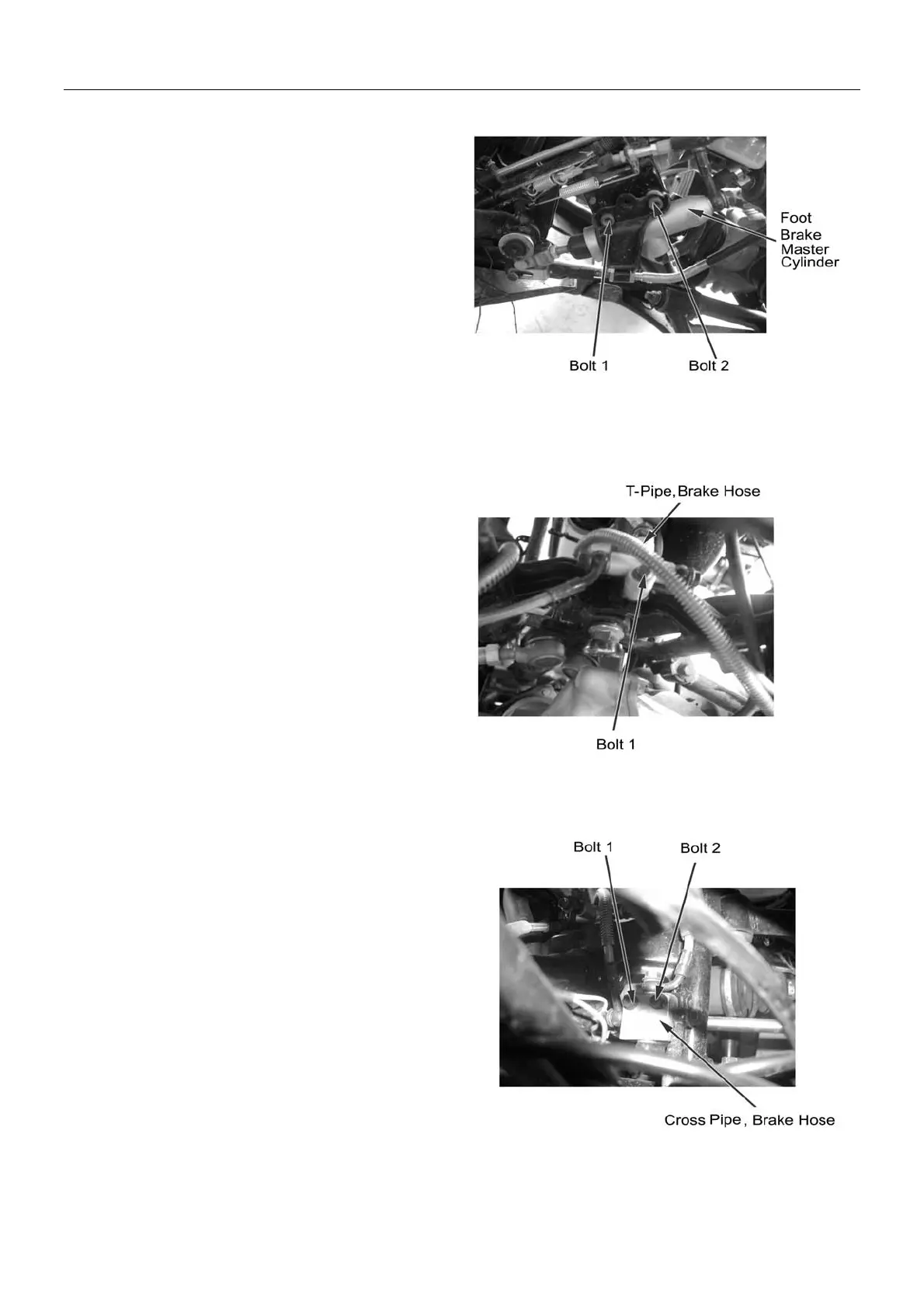

Remove:
--Footrest board(→2-9)
--Front right inner fender (→2-12)
--Bolt 1, Bolt 2
Separate foot brake master cylinder from vehicle
Assembly
Reverse the removal procedure for installation.
NOTE
Do not put the master cylinder upside down to avoid
possible entrance of air into brake system.
Keep the master cylinder in the installation position
and fix it to the frame.
Refer to Chapter 1 for proper routing of brake hose.
Check brake efficiency after installation.
Brake Hose T-Pipe
Remove:
--Front right inner fender (→2-12)
--Bolt 1
--T-Pipe
Installation
Reverse the removal procedure for installation
Note:
Check front and rear brake linkage after installation.
Brake Hose Cross Pipe
Remove:
--Front right inner fender (→2-12)
--Bolt 1, Bolt
--Brake hose cross pipe
6-6
