6. Front Wheel, Front Brake, Suspension, Steering
Installation
Reverse the removal procedure for installation.
NOTE
Note:
Check front and rear brake linkage after installation.
Front Suspension system
Front left Suspension
NOTE
DO NOT remove both left and right suspension at
the same time to avoid fall down of the vehicle.
Park the vehicle on a level ground and securely
support front part of the vechicle.
Removal:
--Front wheel (→6-3)
--Front wheel hub (→6-3)
--Front brake caliper(→6-4)

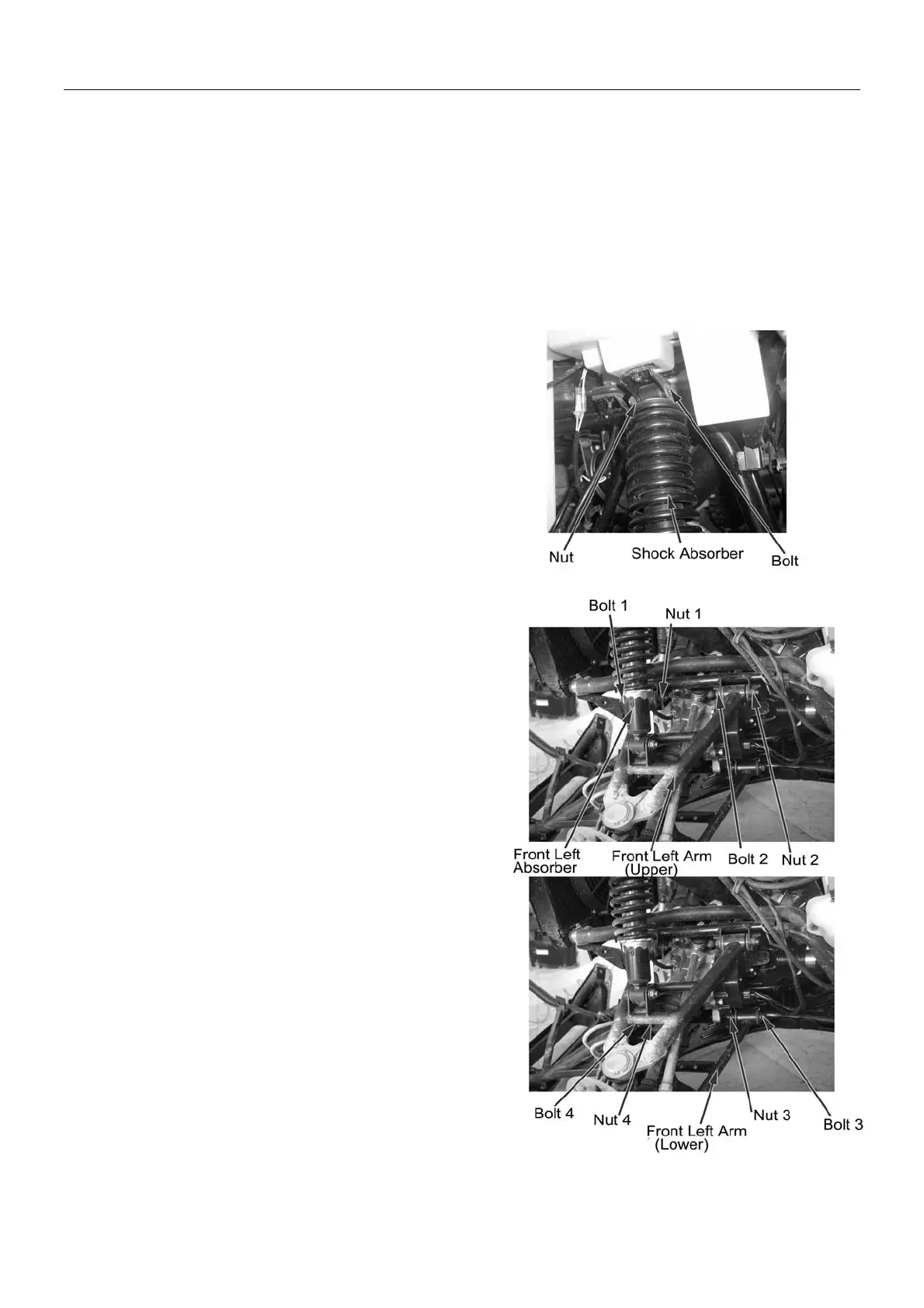

--Bolt 1, Nut 1
--Bolt 2, Nut 2
--Bolt 3, Nut 3, Bolt 4, Nut 4
Remove slotted nut.
Remove tie-rod.
Pull out steering knuckle from CV joint.
Remove front left suspension.
