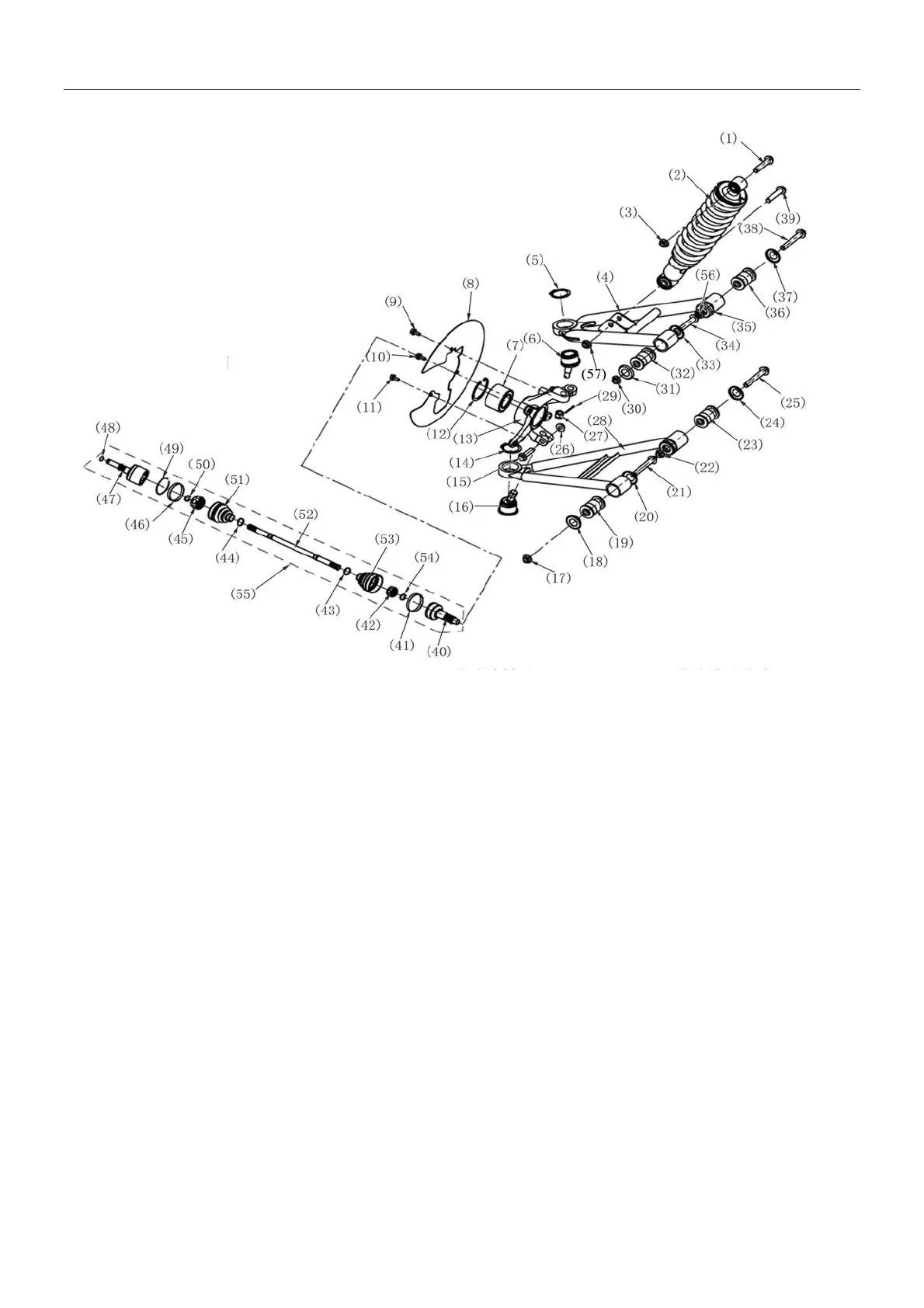

6. Front Wheel, Front Brake, Suspension, Steering
(1) Bolt 1
(2) Front right absorber
(3) Nut 1
(4) Front right arm (upper)
(5) Circlip, bearing
(6) Upper ball pin
(7) Bearing, hub
(8) Brake disc guard
(9) Bolt 2
(10) Bolt 3
(11) Bolt 4
(12) Circlip
(13) Right steering knuckle
(14) Circlip
(15) Bolt 5
(16) Bottom ball pin
(17) Nut 2
(18) Cap, buffering collar
(19) Buffering collar
(20) Bolt 6
(21) Bolt 3
(22) Nut 3
(23) Cap, buffering collar
(24) Buffering collar
(25) Bolt 7
(26) Bolt 4
(27) Slotted nut
(28) Front right arm (lower)
(29) Cotter pin
(30) Nut 5
(31) Cap, buffering collar
(32) Buffering collar
(33) Cap, buffering collar
(34) Bolt 8
(35) Nut 6
(36) Buffering collar
(37) Cap, buffering collar
(38) Bolt 9
(39) Bolt 10
(40) Rzeppa universal joint
(41) Big clamp, fixed end
(42) Bearing, fixed end
(43) Small clamp, fixed end
(44) Small clamp, fixed end
(45) Bearing, motion end
(46) Big clamp, motion end
(47) Rzeppa universal joint
(48) Wire circlip
(49) Wire circlip 2
(50) Spacing shim
(51) Dust boot, motion end
(52) Front left shaft
(53) Dust boot, fixed end
(54) Wire clamp I
(55) Left CV drive shaft left,
front axle
(56) Nut 7
(57) Nut 8
Disassembly:
Note: Replacing the front
shock absorber does not
require removal of other parts.
Remove Bolt 10 (39) and Nut 8
(57)
Remove front right shock
absorber
Inspection:
Oil leakage, aged oil
seal, damage→ Replace
6-8
