6. Front Wheel, Front Brake, Suspension, Steering

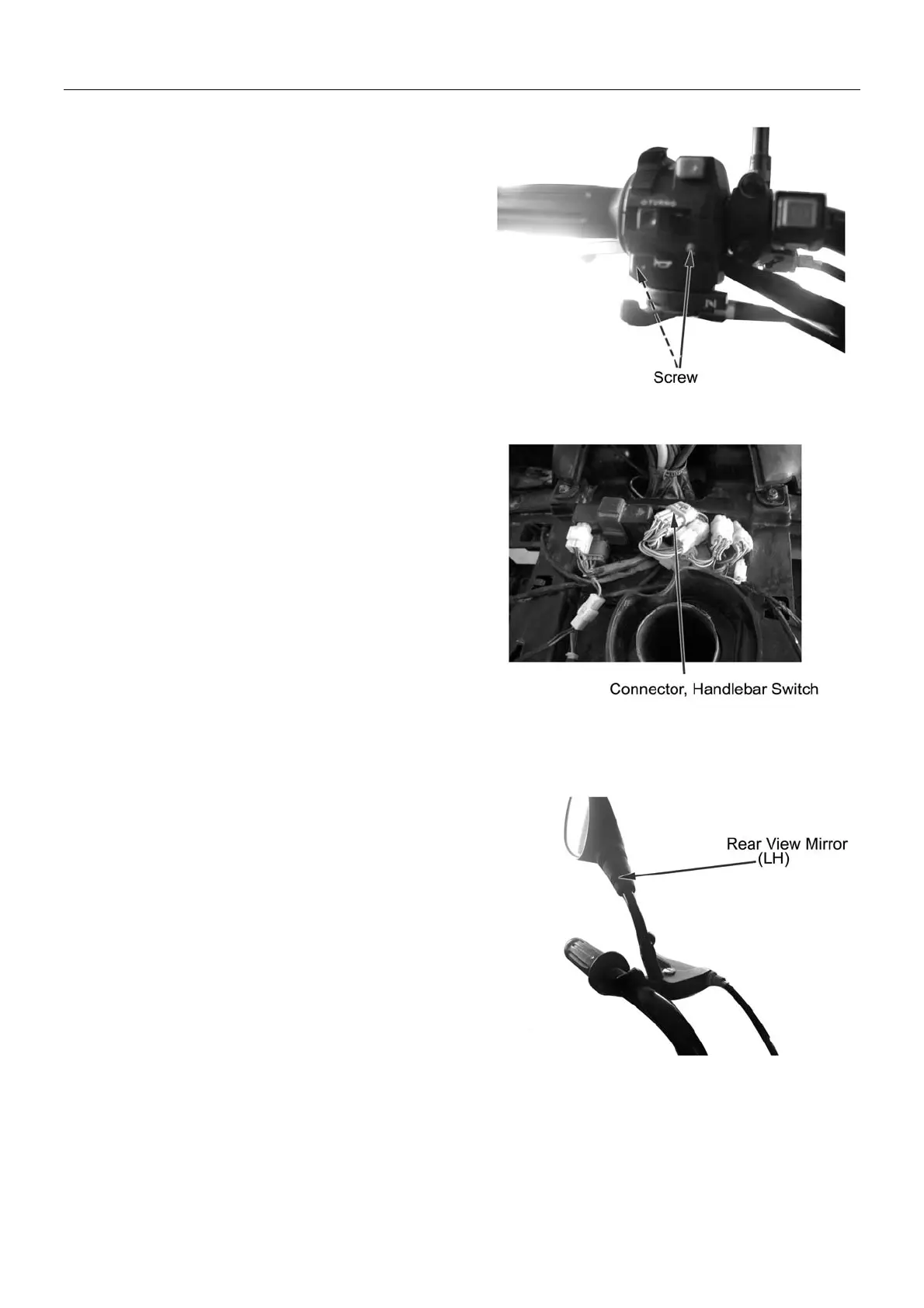

Left Handlebar Switch
Disassembly
Remove
--2 screws
--Left handlebar switch connector
--Left handlebar switch
Installation
Install left handlebar switch (→6-15)
Rear View Mirror
Disassembly
Turn counter clockwise and loosen nut,
Remove left rear view mirror by turning it counter
clockwise.
Note:
Left rear view mirror is right-threaded.
Turn counter clockwise for removal.
Turn clockwise and loosen nut,
Remove right rear view mirror by turning it clockwise.
Note:
Right rear view mirror is left-threaded.
Turn clockwise for removal.
Installation:
Reverse the removal procedure for installation
6-13
