6. Front Wheel, Front Brake, Suspension, Steering

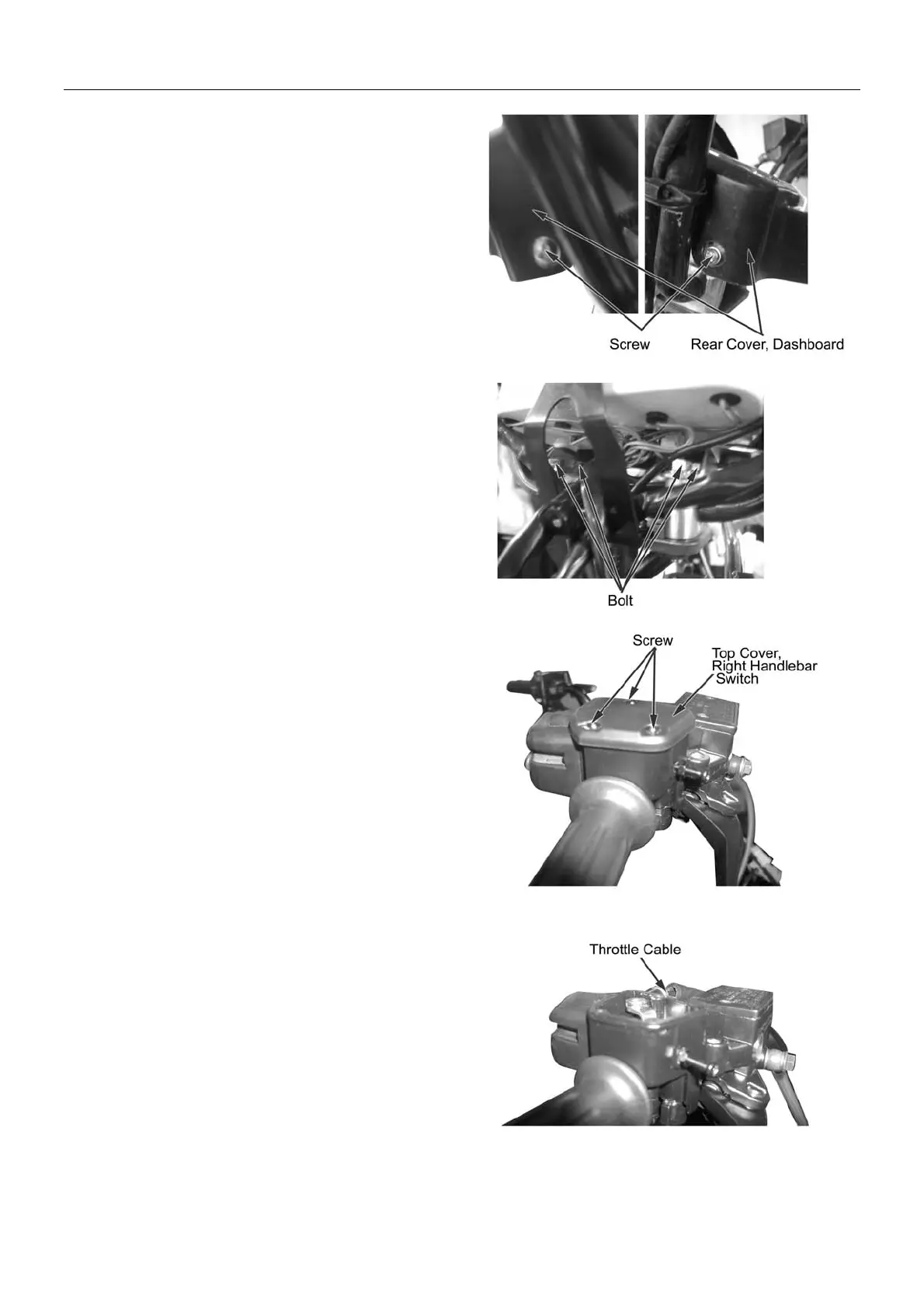

Handlebar, Dashboard Rear Cover
Disassembly
Remove:
--Dashboard front cover (→6-12)
--Left & right handlebar switch (→6-12)
Separate left & right master cylinders from handlebar
Remove:
--Screw1, Screw2
--Dashboard rear cover
--4 fixing bolts
--Handlebar
Installation
Reverse the removal procedure for installation
Tightening Torque: 20-30N.m (2.0-3.0kgf.m)
Note
Main cable, throttle cable, brake hose, cable
wiring should be routed properly
Installation of Throttle Cable
Remove:
--3 screws
--Right handlebar top cover
Install:
--Throttle cable
--Right handlebar switch top cover
6-14
