CFMoto CF500 - Rear Brake and Parking Brake Service

7. Rear Wheel, Rear Brake, Suspension
Rear Brake

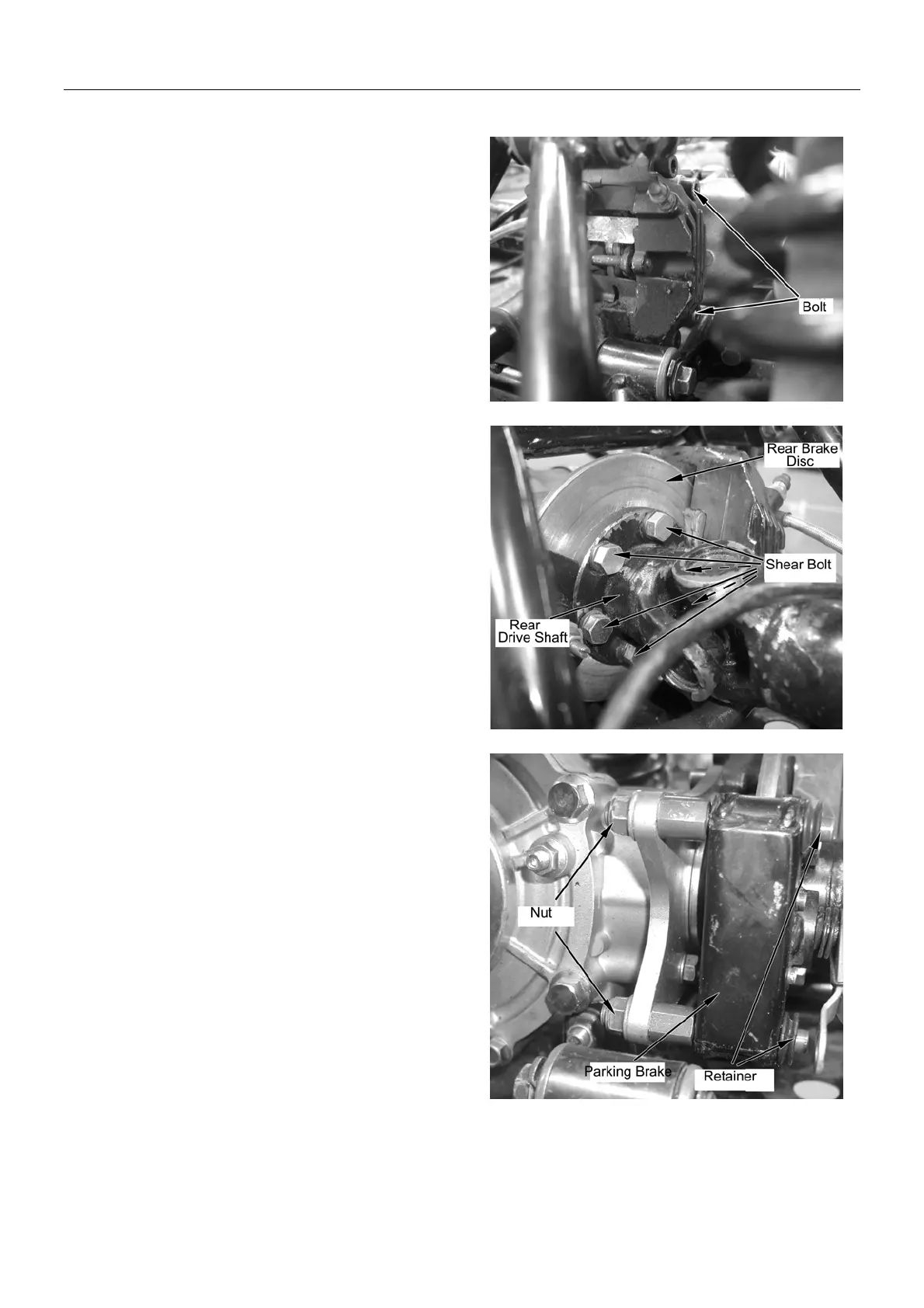

Rear Brake Caliper
Remove:
--Rear left wheel（→7-3）
--2 bolts from arm
--Brake caliper
Inspection:
Brake Caliper: Cracks, Oil leakage: →Replace
Installation
Reverse the removal procedure for installation.
Note：
Refer to Chapter 1 for brake hose routing.
Rear Brake Disc
Remove:
--Rear left wheel（→7-3）
--Rear drive shaft
--Rear brake caliper (→7-4)
--6 shear bolts
--Parking brake（→7-4）
--Rear brake disc（→6-3）
Inspection
Brake Disc: Thickness< 6.5mm: → Replace
Installation
Reverse the steps of removal for installation.
Note：
Refer to Chapter 1 for brake hose routing.
Parking Brake
Remove:
--Rear left wheel（→7-3）
--Rear drive shaft
--Rear brake caliper (→7-4)
--6 shear bolts
--Parking brake
7-4
